Grandstream GWN7803 Layer 2+ Managed Network Switch

Available:In Stock
£192.00

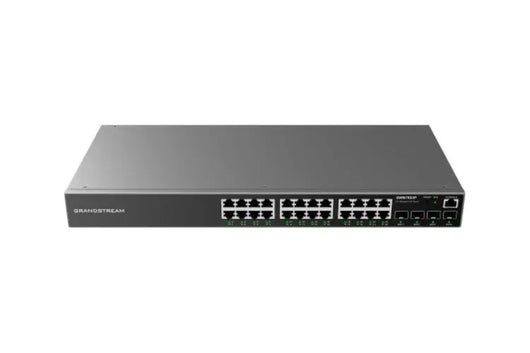

Grandstream GWN7803 Layer 2+ Managed Network Switch

The GWN7803 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable,secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN forflexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

Grandstream GWN7803 Key Features:

  • 24x Gigabit Ethernet ports and 4x Gigabit SFP ports
  • Supports deployment in IPv6 and IPv4 networks
  • Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
  • Built-in QoS allows for prioritization of network traffic

The GWN7803 series can be managed in a number of ways, including the local network controller embedded in theweb user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN ManagerGrandstream’s cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to-medium businesses. .

Grandstream GWN7803 Technical Specifications:

Network Protocol

  • IPv4
  • IPv6, IEEE 802.3
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af/at
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1w

Integrated Power Supply

  • 30W

Total non-blocking throughput

  • 28Gbps

Switching Capability

  • 56Gbps

Forwarding Rate

  • 14.88M packets per second 41.66M packets per second

Switching

  • 8K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP (pending)
  • 8 link aggregation groups

Multicast

  • IGMP Snooping, MLD Snooping, MVR

QoS/ACL

  • Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
  • Port priority
  • Priority mapping
  • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
  • Traffic shaping
  • Rate limit
  • 1.5K ACL for Ethernet, IPv4 and IPv6

Security

  • User hierarchical management and password protection, HTTPS, SSH, Telnet
  • 802.1X authentication
  • AAA authentication including RADIUS, TACACS+
  • Storm control
  • Port isolation, port security, sticky MAC
  • Filtering MAC address
  • IP source guard, DoS attack prevention, ARP inspection
  • DHCP Snooping
  • Loop protection including BPDU protection, root protection and loopback protection
  • Kensington Security Slot (Kensington Lock) support

Dimensions

  • 30mm(L)*175mm(W)*44(H) 440mm(L)*200mm(W)*44mm(H)

Unit Weight

  • 2.7kg

Package Contents

  • Switch, 1x 1.2m(10A) AC Cable
  • Rack-mounting Standard Brackets
  • 1x Ground Cable
  • 4x Rubber Feet
  • 2x Lug Ear
