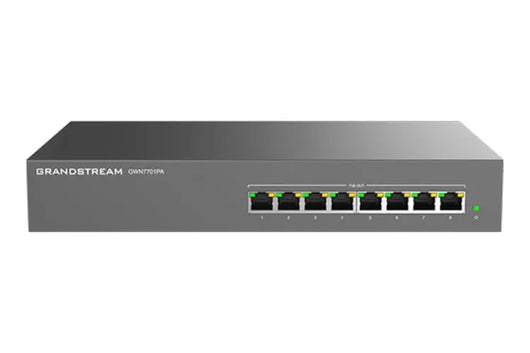

Grandstream GWN7701PA Unmanaged Network Switch
The Grandstream GWN7700 series introduces unmanaged network switches, providing a cost-effective method to add high-speed Gigabit connectivity to home offices and small/medium businesses. These switches require no configuration, offering a desktop or wall-mountable design with auto MDI/MDIX to eliminate crossover cable needs. Each port supports auto-negotiation, allowing compatibility with 10/100/1000Mbps devices.
Grandstream GWN7701PA Key Features:
- 8× port PoE+ output.
- Green tech reduces power use.
- LED Indicators for Link, Activity, Speed, and Power.
- Auto MDI/MDIX for all ports.
- Storm Control (fixed to 100Mbps) for traffic monitoring.
- QoS: Supports Default Strict Priority (when present).
In summary, the GWN7700 series of unmanaged network switches efficiently enhances connectivity. Its features like auto MDI/MDIX, and auto-negotiation cater to diverse networking needs, making it an ideal choice for various setups.
Grandstream GWN7701PA Technical Specifications
General
- 8× 2.5 gigabit ports
- 8× PoE ports
- Enclosure: metal
- Mount: Deskop/Rack mount
Standards and Protocols
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3af
- IEEE 802.3at
Port Features
- 8× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration
- 1-8 Ports 802.3 af/at compliant
- Up to 30 W on Each Port, Total 145W Power Budget
- Overload to cut off the lowestpriority port
- Priority: Port 8 to Port 1
LED Indicators
- Per port: Link/Activity Green
- Per device: Power Green
- Per port: PoE output Yellow
Mac Address Table
- 8K entries
Switching Capacity
- 16Gbps
Jumbo Frame
- 9KB
Advanced Features
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- Unlink clear FDB Feature
- IGMP:
- IGMP Fast-Leave
- IGMP Snoop
- Route Port Autolearn
- Query Refresh Member Port
Power Adapter
- Internal 100-240V AC
- AC, 50/60Hz,150W
Max Power Consumption by Base System
- 6.7W @220V/50Hz (excluding PoE output power)
Environmental
- Operating Temperature: 0 to 40 °C (32 to 104 °F)
- Storage Temperature: -20 to 60 °C (-4 to 140 °F)
- Operating Humidity: 10% to 90% Non-condensing
- Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)
- Unit: 280 x 180 x 44mm
- Package: 366 x 211 x 53mm
Weight
- Unit: 1.5KG
- Entire Package: 2.1KG
Package
- 1x Switch
- 1x 1.2m AC Cable
- 1x Quick Installation Guide (QIG)
- Rack-mounting Standard Brackets
- 4x Rubber Feet
Compliance
- FCC
- CE
- RCM
- IC
- UKCA
