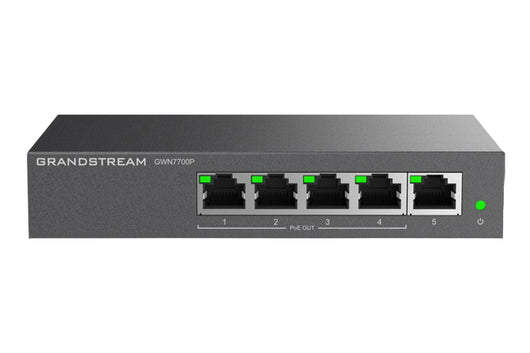

Grandstream GWN7700P Unmanaged Network Switch
Grandstream GWN7700P Unmanaged Network Switch
The Grandstream GWN7700 series introduces unmanaged network switches, providing a cost-effective method to add high-speed Gigabit connectivity to home offices and small/medium businesses. These switches require no configuration, offering a desktop or wall-mountable design with auto MDI/MDIX to eliminate crossover cable needs. Each port supports auto-negotiation, allowing compatibility with 10/100/1000Mbps devices.
Grandstream GWN7700P Key Features:
- 5/8/16/24/48 Gigabit RJ45 ports
- 4 port PoE+ output
- Green technology reduces power consumption
- LED Indicators;
- Per port: Link/Activity/Speed
- Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Supports long cable connection
- QoS - Supports Default Strict Priority when present
In summary, the GWN7700 series of unmanaged network switches efficiently enhances connectivity. Its features like auto MDI/MDIX, and auto-negotiation cater to diverse networking needs, making it an ideal choice for various setups.
Grandstream GWN7700P Technical Specifications
General
- Gigabit ports: 5
- PoE ports: 4
- Enclosure: Metal
Mounting
- Desktop/ Wall-Mount
Standards and Protocols
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3af
- IEEE 802.3at
Port Feature
- 5× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration
- 1~4 Ports 802.3 af/at compliant
- Up to 30 W on Each Port, Total 60W Power Budget;
- Overload to cut off the lowest-priority port.
- Priority: Port 4 to Port 1
LED Indicators
- Per port: Link/Activity Green
- Per device: Power Green
Mac Address Table
- 2K
Switching Capacity
- 10Gbps
Jumbo Frame
- 9KB
Advanced Features
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP:
- IGMP Fast-Leave
- IGMP Snoop
- Route Port Autolearn
- Query Refresh Member Port
Power Adapter
- External 48-53.5VDC/1.22A
Max Power Consumption by Base System
- 2W (excluding PoE output power)
Environmental
- Operating Temperature: 0 to 40 °C (32 to 104 °F)
- Storage Temperature: -20 to 60 °C (-4 to 140 °F)
- Operating Humidity: 10% to 90% Non-condensing
- Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)
- Unit: 145 x 80 x 27mm
- Package: 230 x 190 x 51mm
Weight
- Unit Weight: 0.26KG
- Entire Package: 0.75KG
Package
- 1x Switch, 1x Power Adapter, 1x QIG
Compliance
- FCC
- CE
- RCM
- IC
- UKCA
