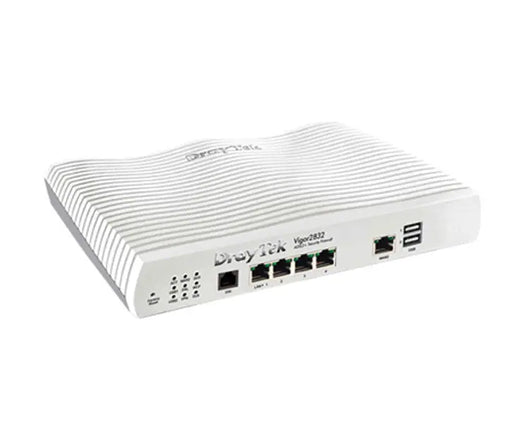

Draytek Vigor 2832 ADSL Router
![Draytek Vigor 2832 ADSL Router]()
![Draytek Vigor 2832 ADSL Router]()
Draytek Vigor 2832 ADSL Router
Available:In Stock
- Category:ALL PRODUCTS,Best selling products,Draytek Ethernet Routers,New products,Routers And Switches
£203.64
Please Note: This product is currently on pre-order. For an alternative please see the Draytek Vigor V2765-K 1 Gb Ethernet Dual-WAN Firewall VPN Router.
Draytek Vigor 2832 ADSL Router - Non-wireless model
The DrayTek Vigor 2832 is a router/firewall for ADSL lines. Alternative WAN ports can provide connectivity to Ethernet feeds, secondary xDSL modems or a 3G/4G cellular service using a supported USB adaptor. This latest router series includes support for professional features such as VLAN tagging, Gigabit Ethernet built-in WiFi ('n' models).
Draytek Vigor 2832 Features
- Supports ADSL, 3G/4G (USB) and Ethernet-based Broadband
- 4-WAN Simultaneous: ADSL, Ethernet and USB 3G/4G
- Up to two 3G/4G/LTE USB modems can be used
- IPv6 Ready - See below for feature support
- 802.11n 2.4GHz Wireless LAN (on Vigor2832n)
- DrayTek Firewall with huge flexibility
- Temperature Monitoring (optional Thermometer)
Packed with professional-level features, the Vigor 2832 series is compatible with all UK variants of ADSL (including ADSL2+ and Annex M) and the Vigor 2832 can also be used for cable-modem, leased line and EFM applications using its Gigabit Ethernet WAN port. A 4-port Gigabit Ethernet switch on the LAN side provides high-speed connectivity for your server, other local PCs or for uplink to a larger Ethernet switch. Comprehensive security features include content filtering, web application controls and an object based firewall management system.
Draytek Vigor 2832 - Technical Specifications
LAN Ports (Switch)
- 4 X Gigabit Ethernet (1000Mb/s) Ports
- Port-Based VLAN (Inclusive/Exclusive Groups)
- 802.1q VLAN Tagging
USB Ports:
- 2x USB 2.0 ports for 3G/4G Modem, Printer, USB storage or USB temperature sensor
- WAN Ports:
- WAN1 : ADSL, RJ11
- WAN2 : Gigabit Ethernet (1000Mb/s) Ethernet
- WAN3 : USB Port for 3G/4G Cellular Modem
- WAN4 : USB Port for 3G/4G Cellular Modem
Performance:
- Firewall: Up to 300Mb/s
- IPSec VPN: Up to 50Mb/s
ADSL Compatibility:
- ANSI T1.413 Issue2
- ITU-T G.992.1 G.dmt (ADSL)
- ITU-T G.992.2 G.lite
- ITU-T G.992.3 ADSL2
- ITU-T G.992.5 ADSL2+
- Annex L (READSL)
- Annex A
- Annex M
- ANFP Issue 3 Compliant/Certified (for Annex A & Annex M)
- DSL Forum : TR-048/67 & TR-100
- Wireless Guest Portal
- Multiple Private LAN Subnets
- SMS (Text Message) Alert via 3rd party server
Load Balance/Failover Features:
- Outbound Policy-Based Load-Balance
- WAN Connection Fail-over
- BoD (Bandwidth on Demand)
Vigor 2832 ATM Protocols (DSL):
- RFC-2684/RFC-1483 Multiple Protocol over AAL5
- RFC-2516 PPP over Ethernet
- RFC-2364 PPP over AAL5
- PPPoE pass through LAN/WLAN
- PPPoE/PPPoA Relay
- Transparent bridge for MPoA
- Multiple PVC support for Triple Play Applications (up to 8 simultaneous)
- Support for RFC4638 for MTU up to 1500
WAN Protocols (Ethernet):
- DHCP Client
- Static IP
- PPPoE
- PPTP
- BPA
Firewall & Security Features:
- CSM (Content Security Management):
- URL Keyword Filtering - Whitelist or Blacklist specific sites or keywords in URLs
- Block Web sites by category (e.g. Adult, Gambling etc. Subject to subscription)
- Prevent accessing of web sites by using their direct IP address (thus URLs only)
- Blocking automatic download of Java applets and ActiveX controls
- Blocking of web site cookies
- Block http downloads of file types :
- Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF
- Compressed : .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR
- Multimedia : .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU - Time Schedules for enabling/disabling the restrictions
- Block popular P2P (Peer-to-Peer) file sharing programs
- Block Instant Messaging programs (e.g. IRC, MSN/Yahoo Messenger etc.)
- Multi-NAT, DMZ Host
- Port Redirection and Open Port Configuration
- Policy-Based Firewall
- MAC Address Filter
- SPI ( Stateful Packet Inspection ) with new FlowTrack Mechanism
- DoS / DDoS Protection
- IP Address Anti-spoofing
- E-Mail Alert and Logging via Syslog
- Bind IP to MAC Address
Bandwidth Management:
- QoS
- Guaranteed Bandwidth for VoIP
- Class-based Bandwidth Guarantee by User-Defined Traffic Categories
- Layer 2&3 (802.1p & TOS/DCSP)
- DiffServ Code Point Classifying
- 4-level Priority for each Direction (Inbound / Outbound)
- Bandwidth Borrowed
- Temporary (5 minute) Quick Blocking of any LAN Client
- Bandwidth / Session Limitation
Network/Router Management:
- Web-Based User Interface (HTTP / HTTPS)
- CLI ( Command Line Interface ) / Telnet / SSH
- Administration Access Control
- Configuration Backup / Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP / FTP
- Logging via Syslog
- SNMP v3 Management with MIB-II
- TR-069
- TR-104
VPN Facilities:
- Up to 32 Concurrent VPN Tunnels (incoming or outgoing)
- Up to 10 SSL VPN Tunnels for remote workers
- Tunnelling Protocols: PPTP, IPSec, L2TP, L2TP over IPSec
- IPSec Main and Agressive modes
- IKE Phase 1 DiffieHelman Groups 1,2,5 & 14
- IKE Phase 2 DiffieHelman Groups 1,2,5 & 14 (will match phase 1 selection)
- Encryption : MPPE, DES and Hardware-Based AES (128/192/256bits) / DES / 3DES (168bits)
- Authentication : Hardware-Based MD5, SHA-1 and SHA-256
- IKE Authentication : Pre-shared Key or X.509 Digital Signature
- LAN-to-LAN & Teleworker-to-LAN connectivityDHCP over IPSec
- NAT-Traversal ( NAT-T )
- Dead Peer Detection (DPD)
- VPN Pass-Through
- MOTP (Mobile One Time Password)
Network Features:
- DHCP Client / Relay / Server
- DHCP Option 66 support
- Dynamic DNS
- NTP Client (Synchronise Router Time)
- Call Scheduling (Enable/Trigger Internet Access by Time)
- RADIUS Client
- UPnP Support
Routing Protocols:
- Static Routing
- RIP V2
Operating Requirements:
- Rack Mountable (Optional Vigor RM1 mounting bracket required)
- Wall Mountable
- Temperature Operating : 0°C ~ 45°C
- Storage : -25°C ~ 70°C
- Humidity 10% ~ 90% (non-condensing)
- Power Consumption: 18 Watt Max.
- Dimensions: L240.96 * W165.07 * H43.96 ( mm )
- Operating Power: DC 15V (via external PSU, supplied)
- Warranty : Two (2) Years RTB
- Power Requirements : 220-240VAC
