DrayTek Outdoor 4G Antenna for DrayTek LTE Routers (ANT-4GE1-K)
DrayTek Outdoor 4G Antenna for DrayTek LTE Routers (ANT-4GE1-K)

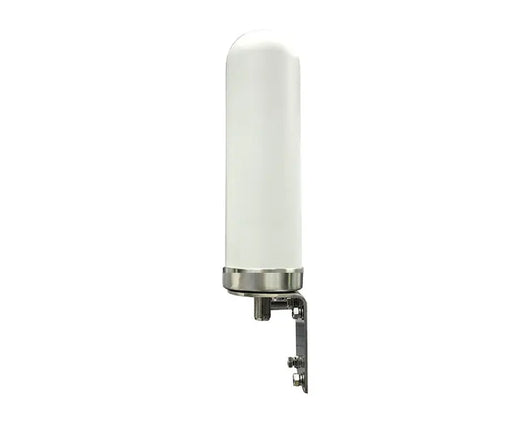

The DrayTek ANT-4GE1-K is an outdoor omnidirectional 4G antenna that can improve 4G, 3G & LTE signal reception for any DrayTek Vigor LTE router, expanding coverage and improving speeds, by allowing you to locate the antenna in a location which receives a strong signal.
DrayTek ANT-4GE1-K Key Features
- Omnidirectional Outdoor Aerial
- 4-6 dBi Signal Gain
- Can also be used Indoors
- Improves signal stability and reception
- Suitable for all DrayTek LTE routers
- Wall or Pole mountable (includes fittings)
- 4G, 3G, 2G & LTE Compatible (See band support)
- N-Plug Connector
- Requires N-to-SMA cable (sold separately)
The Outdoor 4G Antennas for DrayTek LTE Routers support all currently used 4G, 3G and 2G frequency bands from 700MHz to 2.7GHz. The antennas are Omni-Directional, designed for vertical orientation to receive signal from any nearby mobile cell tower, without requiring careful or sensitive aiming during installation.
Install a pair of Outdoor 4G Antennas around 0.5m to 1m apart to enable the MIMO (Multiple In, Multiple Out) capability of 4G & LTE wireless networks, further improving speeds and connection resilience. For best results, separate the antennas horizontally in built-up areas and vertically in open areas.
The Outdoor 4G Antennas for DrayTek LTE Routers are weatherproof and ideal for permanent outdoor installation either on a pole or wall. Fixings are provided suitable for either (poles not included).
The N-type connector on each antenna provides a secure and weather resistant antenna connection, which links to the router’s SMA antenna connectors with a suitable cable. Each Outdoor 4G Antenna requires an N-plug to SMA cable for installation, such as our own 5 metre cable (model: CAB-LTEA5, supplied separately). You can use your own shorter or longer cables instead, ensuring the right connectors and always keep cable lengths to a minimum to avoid unncessary signal loss.
Frequency Range (Mhz):
- 4G/LTE: 800, 1800, 2600
- 3G: 900, 2100
- 5G: 700, 3400
Antenna Type:
- Omni-Directional
Performance:
- Firewall: Up to 400Mb/s
- WAN Protocols : PPPoE, PPTP, DHCP Client, Static IP
- Load Balancing : Policy based or automatic
- WAN Failover : Switch to other connection when primary WAN lost
Installation Environment:
- Outdoors
- Indoors
Horizontal Beam Width:
- 360
Vertical Beam Width:
- 25
Gain (dBi):
- 4 to 6
Polarisation:
- Vertical
VSWR:
- ~1.5
Impedance (ohm):
- 50
Lightning Protection:
- Direct Ground
Operating Temperature ( C):
- -40 to 80
Height:
- 25cm (without bracket)
- 32cm (with bracket)
Diameter:
- 7cm
Dome Material:
- ABS
Radiating Element Material:
- Zinc alloy
Antenna Connector:
- N-Female
Weight (kg):
- 0.5 (including bracket)
