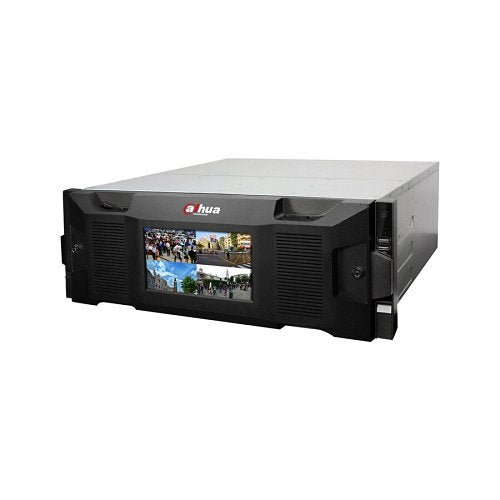

Dahua IVSS7024DR Ultra Series, 256-Channel 768Mbps 4U 24 HDD NVR
- Category:Best selling products,Dahua Network Video Recorders,Dahua Technology IP CCTV,IP CCTV,New products
Product Overview
System Overview
Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent Video Surveillance Server that combines video management features with traditional video storage functions in one device. Besides the basic functions as a network video recorder, IVSS is integrated with features such as face detection and face recognition for different business and industrial applications.
An all new UI design supports device operation and maintenance management, improving the value and experience of surveillance view, and serving the era of security big data.
Functions
Face Recognition (with AI camera)
Supports real-time Face Detection & Recognition (with AI camera). Shows real-time face detection and recognition results from AI camera. Records faces with video metadata. Facial features are filtered during real-time display, so as to show only faces with target features. Facial features include gender, age, expression, and more. The linkage actions for face detection and recognition events are configurable, including alarm, buzzer, snapshot, video recording, and more.
Perimeter Protection(with AI camera)
Automatically filters out false alarms caused by animals, rustling leaves and bright lights, so as to improve alarm accuracy. Enables system to act secondary recognition for the targets.
Video Metadata (with AI camera)
Metadata is feature attribute information extracted from a target object which can be used for data retrieval. Currently, there are four main kinds of metadata in the security industry: Human face, human body, and motor vehicle, non-motor vehicle metadata.
ANPR
Automatic Number Plate Recognition available for convenient entrance/exit management. This feature provides number plate recognition (working with Dahua ITC camera), number plate comparison with black/white list, vehicle database management, and vehicle record search.
N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a secure failover technique to ensure immediate backup. In the event of a system failure, the slave device instantly takes over the master device to ensure no data loss.
Fisheye Dewarp
Supports multiple fisheye dewarp modes to make viewing video easy whether it is live or during playback.
Smart Tracking
The automatic tracking PTZ feature automatically tracks a moving target throughout the camera's field of view. This function is ideal for following an object as it moves through airports, parking lots, city centers, or other scenes.
- Industry embedded micro-controller
- Max 768Mbps incoming bandwidth
- 256-Ch IP video access
- Supports RAID 0/1/5/6/10
- 3 HDMI/1 VGA video output
- Redundant power
Specifications
General Information
ADI Part NumberIVSS7024DRBrand NameDahua TechnologyManufacturerZhejiang Dahua Technology Co., Ltd.Manufacturer Part NumberIVSS7024DRProduct ModelIVSS7024DRProduct Name4U 24HDD Intelligent Video Surveillance ServerProduct SeriesIVSSProduct TypeNVRsWeight (Approximate) (g)17000
Technical Information
HD RecordingYesMaximum Frame Rate60 fpsSystem ComponentsVideo ServerTotal Number of Channels256Camera
Connectivity TechnologyWired
Interfaces/Ports
HDMIYesNumber of VGA Out1Total Number of Audio In Ports1Total Number of Audio Out Ports1USBYes
Network & Communication
EthernetYes
Physical Characteristics
Weight (Approximate)17 kg
Power Description
Power Consumption (W)408.000
Video
Maximum Frame Rate (fps)60Maximum Resolution16MP
