D-Series Class-D Power Amplifiers
D-Series Class-D Power Amplifiers

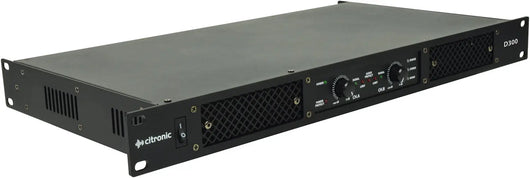

Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different configurations to handle even the most demanding of sound reinforcement duties.
- Cool and efficient operation even at high output
- Compact and lightweight 1U rack format
- Switchable parallel and bridge modes
- Weight3.50kg
- Bridge power @ 8 Ohms1 x 300W
- Power rms @ 8 Ohms2 x 75W
- Power rms @ 4 Ohms2 x 150W
- FuseT6.3A (20 x 5mm)
- Power supply220-240Vac, 50/60Hz (IEC)
- ModesStereo, Parallel (mono), Bridge (mono)
- Input sensitivity0.775V - 1.0V - 1.44V switchable
- Low-cut filter75Hz switchable
- Input connectionsL+R XLR female (L+R XLR male through)
- Output connectionsL+R SPK connectors (+1 for bridge mode)
- Dimensions482 x 245 x 44mm
Trade Information
- SKU172.103UK
- Barcode EAN5015972231340
- Tariff code8518500090
- Country of originChina (CN)
- Packaging typeBox Label
- Package dims95 x 300 x 530mm
- Package quantity1 unit
- Nett weight3.5000kg
- Gross weight3.9700kg
- Carton dims320 x 495 x 545mm
- Carton quantity5 units
- Carton weight21.00kg
