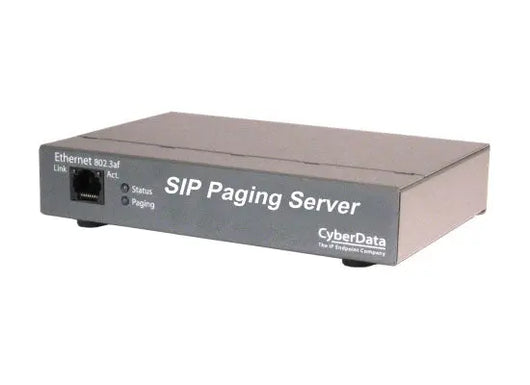

CyberData VoIP V3 Paging Server (011146)
CyberData VoIP V3 Paging Server 011146
The CyberData SIP Paging Server enables users, through a single SIP phone extension, to access multiple zones for paging with bell scheduling in a VoIP network and to connect to legacy analog overhead paging systems.
Key Features
- Bell Scheduler with up to 25 “bells”
- PoE 802.3af enabled (Power-over-Ethernet)
- 19-inch Rack mount option
- Remote amp fault sensor
- SIP RFC 3261 compatible
- Multicast output
- Two SIP endpoints (one for Night Ringer)
- DTMF control of zone selection
- Delayed page support
- User uploadable audio files
A second SIP endpoint can be configured as a night ringer playing a user-uploadable audio file.
The easy-to-use, web-based configuration provides a graphical user interface to set up to 100 paging zones with unique multicast address and port number combinations.
The device connects via a single cable to a standard PoE 802.3af compliant switch.
Other Features
- Line-In connection for music-on-hold multicasting
- Line-out connection to support analogue Amps
- Web-based configuration and firmware upload
- Supports 600 Ohm output
- Page start relay contacts
- Page directly to Polycom phones
CyberData VoIP V3 Paging Server 011146 Technical Specifications
- Bell Scheduler for alerts for mass notification
- Protocol: SIP RFC 3261 Compatible
- Ethernet I/F: 10/100 Mbps
- Power Input: PoE 802.3af or 48VDCSpecifications
- Dimensions: 6.11”L x 4.05”W x 1.15”H
- Warranty: 2 years limited
- Boxed Weight: 1.8 lbs.
- Payload Types: G711
- Operating Temperature: -30 to 55 C (-22 to 131 F)
- Regulatory Compliance: FCC Class A, UL 60950
- Page Port Output: Balanced 600 Ohm 10VPP
- Line In: Input Signal Amplitudes 2.0 VPP maximum, Input Impedance 10k Ohm
- Line Out: Output Signal Amplitudes 2.0 VPP maximum, Output Level +2dBm nominal, Total Harmonic Distortion 0.5% maximum, Output Impedance 10k Ohm
