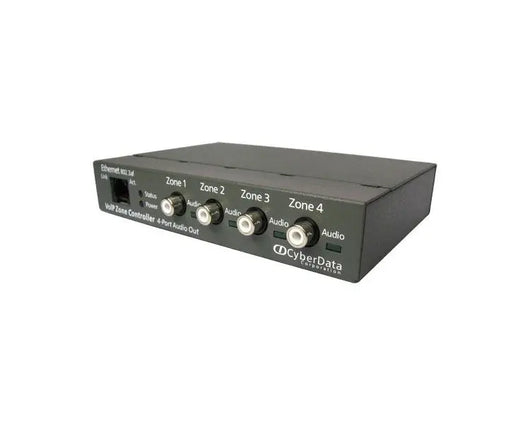

CyberData V3 VoIP Zone Controller (011171)
![CyberData V3 VoIP Zone Controller (011171)]()
![CyberData V3 VoIP Zone Controller (011171)]()
CyberData V3 VoIP Zone Controller (011171)
Available:In Stock
£623.16
CyberData V3 VoIP Zone Controller 011171
The CyberData SIP Paging Zone Controller with Audio-Out enables access to existing paging speakers through a VoIP phone system.
Key Features
- Delayed paging
- Night Ringer
- PoE 802.3af enabled (Power-over-ethernet)
- Dual-speed ethernet 10/100 Mbps
- 4 Paging zones
- 15 Paging zone groups
- SIP RFC 3261 compatible
The interface is designed to use a standard paging amplifier with audio inputs and supports paging up to 15 zone groups from a VoIP phone.
Other Features
- Page all function
- Web-based configuration
- Web-based firmware upgradeable
- Connector for external power supply
- Small footprint
- Upto 9 stored messages
- Page to Polycom phones
CyberData V3 VoIP Zone Controller 011171 Technical Specifications
- Dimensions: 6.2” L x 4.5” W x 1.22” H
- Warranty: 2 years limited
- Boxed Weight: 1.8 lbs
- Output Level: +2dBm nominal
- Output Signal Amplitudes: 2.0 VPP maximum
- Protocol: SIP RFC 3261 CompatibleEthernet I/F10/100 Mbps
- Power Input: PoE 802.3af or 48VDC0.5% maximum
- Total Harmonic Distortion: 0.5% maximum
- Regulatory Compliance: FCC Class A, UL 60950
- Payload Types: G711
- Operating Temperature -30 to 55 C (-22 to 131 F)
- Weight: 1.6 lbs
- Part Number: 011171
