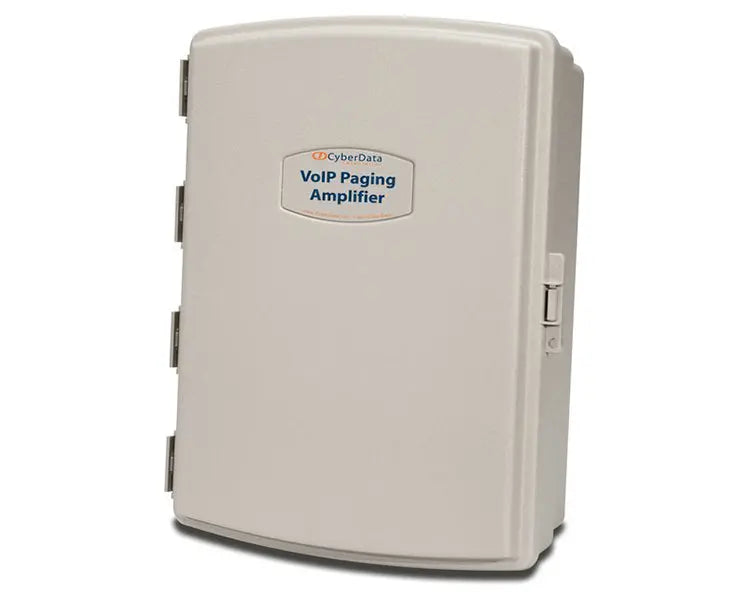

CyberData Syn Apps enabled Loudspeaker Amplifier PoE (011413)
![CyberData Syn Apps enabled Loudspeaker Amplifier PoE (011413)]()
![CyberData Syn Apps enabled Loudspeaker Amplifier PoE (011413)]()
CyberData Syn Apps enabled Loudspeaker Amplifier PoE (011413)
Available:In Stock
- Category:Best selling products,New products
£965.88
CyberData Syn Apps enabled Loudspeaker Amplifier PoE (011413)
The CyberData Syn-Apps enabled Loudspeaker Amplifier (011413) is for use with the Syn-Apps SA-Announce notification system. SA-Announce provides text and audio-based paging and mass notification services in real-time or scheduled intervals.
CyberData 011413 Key Features
- Packaged in a NEMA 3R/IP42-rated enclosure
- Built-in diagnostics
- Dual-speed ethernet 10/100 Mbps
- Web-based configuration
- PoE 802.3at and 802.3af-enabled
- Line-in for background music
- Line-out connection
- Direct 8 Ohm speaker drive
- Digital and manual volume control
- Can support two horns
CyberData 011413 - Technical Specifications
General
- Ethernet I/F 10/100 Mbps
- Protocol Syn-Apps SA Announce
- Power Input PoE 802.3at or 802.3af
- Audio Output
802.3af - SPL 114 dB @ 1 meter (When used with the 011068 Mini Horn.)
802.3at - SPL 117 dB @ 1 meter (When used with the 011068 Mini Horn.) - Line In:
Input Signal Amplitudes 2.0 VPP maximum
Input Impedance 10k Ohm - Line Out:
Output Signal Amplitudes 2.0 VPP maximum
Output Level +2dBm nominal
Total Harmonic Distortion 0.5% maximum
Output Impedance 10k ohm - Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
- Payload Types G.711 μ-law, G.711 a-law, and G.722 + Singlewire HD
- Dimensions
10 in. [254 mm] Length
4 in. [101.6 mm] Width
14 in. [355.6 mm] Height - Boxed Weight 6.5 lbs. [2.95 kg]
- Warranty 2 Years Limited
- Part Number 011413
- Loudspeaker Part Number 011068
