CyberData Singlewire Paging Adapter (011280)
CyberData Singlewire Paging Adapter (011280)

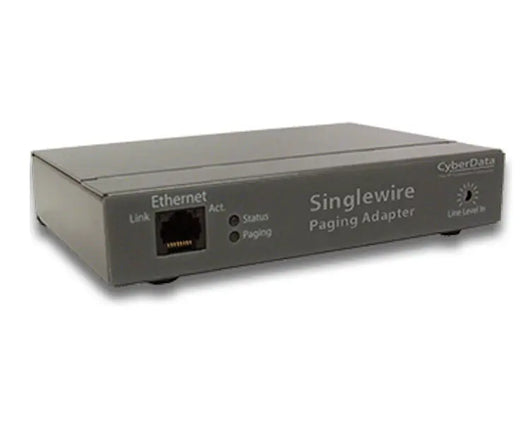

The CyberData Singlewire Paging Adapter (SPA) is for use with Singlewire's paging and emergency notification software InformaCast or InformaCast CK.
CyberData Singlewire Paging Adapter Key Features
- InformaCast
- HTTP Web Interface and setup
- Built-in diagnostics
- 10k Ohm input for MOH
- 600 Ohm Balanced audio out
- Unbalanced Line-Out
- 10/100 802.3af PoE
The Singlewire Paging Adapter (011280) provides a direct connection to legacy analog paging systems enabling InformaCast paging events to be broadcast. The on-board relay can be controlled using InformaCast GPI/O commands or can be set to activate when a page has begun. The SPA supports a Line-In input for playing MOH from a remote source.
General
- Protocol - InformaCast V4.0 and later
- Ethernet I/F -10/100 Mbps
- Power Input - PoE 802.3af or 48VDC
- Operating Temperature - -10oC to 50oC (14oF to 122oF)
- Payload Types - G711
- Regulatory Compliance - FCC Class A, UL 60950
- Page Port Output - Balanced 600 Ohm 10VPP
- Line In:
- Input Signal Amplitudes - 2.0 VPP maximum
- Line In: Input Impedance - 10k Ohm
- Line Out:
- Output Signal Amplitudes -2.0 VPP maximum
- Output Level - +2dBm nominal
- Total Harmonic Distortion - 0.5% maximum
- Output Impedance -10k Ohm
- Dimensions - 6.11” L x 4.05” W x 1.15” H
- Warranty - 2 years limited
- Boxed Weight - 1.8 lbs.
- Part Number - 011280
CyberData Singlewire Paging Adapter (011280)
The CyberData Singlewire Paging Adapter (SPA) is for use with Singlewire's paging and emergency notification software InformaCast or InformaCast CK.
CyberData Singlewire Paging Adapter Key Features
- InformaCast
- HTTP Web Interface and setup
- Built-in diagnostics
- 10k Ohm input for MOH
- 600 Ohm Balanced audio out
- Unbalanced Line-Out
- 10/100 802.3af PoE
The Singlewire Paging Adapter (011280) provides a direct connection to legacy analog paging systems enabling InformaCast paging events to be broadcast. The on-board relay can be controlled using InformaCast GPI/O commands or can be set to activate when a page has begun. The SPA supports a Line-In input for playing MOH from a remote source.
CyberData Singlewire Paging Adapter - Technical SpecificationsGeneral
- Protocol - InformaCast V4.0 and later
- Ethernet I/F -10/100 Mbps
- Power Input - PoE 802.3af or 48VDC
- Operating Temperature - -10oC to 50oC (14oF to 122oF)
- Payload Types - G711
- Regulatory Compliance - FCC Class A, UL 60950
- Page Port Output - Balanced 600 Ohm 10VPP
- Line In:
- Input Signal Amplitudes - 2.0 VPP maximum
- Line In: Input Impedance - 10k Ohm
- Line Out:
- Output Signal Amplitudes -2.0 VPP maximum
- Output Level - +2dBm nominal
- Total Harmonic Distortion - 0.5% maximum
- Output Impedance -10k Ohm
- Dimensions - 6.11” L x 4.05” W x 1.15” H
- Warranty - 2 years limited
- Boxed Weight - 1.8 lbs.
- Part Number - 011280
