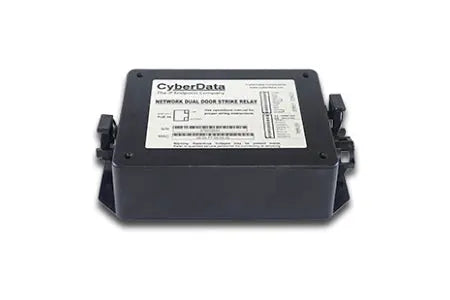

CyberData Networked Dual Door Strike Relay Module (011375)
CyberData Networked Dual Door Strike Relay Module (011375)
The CyberData Networked Dual Door Strike Relay Module allows monitoring and control of a two of doors when used in a "mantrap" or "airlock" configuration. Power for the strikes can be from the internal 12V @ 500 mA supply or from an external source.
CyberData 011375 Key Features
- Now allows for monitoring and control of two doors
- PoE 802.3af enabled
- AES encryption (up to 256 bit)
- Discoverable by CyberData VoIP products
- Windows setup utility with diagnostics
- Real time clock with event logging function
- Supports Multicast Relay Activation
- Dual 12A relays
- NO/NC contacts
- 12V @ 500 mA for direct powered strikes
- Opto-isolated sense inputs
- Wall mounting
- Intrusion detection
- Cable strain relief
- Device status LED
The CyberData Networked Dual Door Strike Relay Module is PoE-powered (802.3af) and provides an encrypted communication method for secure access. All events are logged with a battery-backed up time stamp and can be sent to a network host. Applications include electronic door strikes and other high current machine control. This product directly interfaces to the CyberData line of VoIP products and also provides an API for third party applications needing to integrate single or dual door locks as well as high current switching and monitoring.
General
- Power Input 802.1af PoE
- Ethernet I/F 10/100 Mbps
- Operating temp. -10° C to 50° C (14° F to 122° F)
- Dimensions
6.586 inches [167.3 millimeter] Length
4.338 inches [110.3 millimeter] Width
2.600 inches [66 millimeter] Height - Warranty 2 years limited
- Boxed Weight 2.0 lbs. (0.91 kg)
- Part Number 011375
CyberData Networked Dual Door Strike Relay Module (011375)
The CyberData Networked Dual Door Strike Relay Module allows monitoring and control of a two of doors when used in a "mantrap" or "airlock" configuration. Power for the strikes can be from the internal 12V @ 500 mA supply or from an external source.
CyberData 011375 Key Features
- Now allows for monitoring and control of two doors
- PoE 802.3af enabled
- AES encryption (up to 256 bit)
- Discoverable by CyberData VoIP products
- Windows setup utility with diagnostics
- Real time clock with event logging function
- Supports Multicast Relay Activation
- Dual 12A relays
- NO/NC contacts
- 12V @ 500 mA for direct powered strikes
- Opto-isolated sense inputs
- Wall mounting
- Intrusion detection
- Cable strain relief
- Device status LED
The CyberData Networked Dual Door Strike Relay Module is PoE-powered (802.3af) and provides an encrypted communication method for secure access. All events are logged with a battery-backed up time stamp and can be sent to a network host. Applications include electronic door strikes and other high current machine control. This product directly interfaces to the CyberData line of VoIP products and also provides an API for third party applications needing to integrate single or dual door locks as well as high current switching and monitoring.
CyberData 011375 - Technical SpecificationsGeneral
- Power Input 802.1af PoE
- Ethernet I/F 10/100 Mbps
- Operating temp. -10° C to 50° C (14° F to 122° F)
- Dimensions
6.586 inches [167.3 millimeter] Length
4.338 inches [110.3 millimeter] Width
2.600 inches [66 millimeter] Height - Warranty 2 years limited
- Boxed Weight 2.0 lbs. (0.91 kg)
- Part Number 011375
