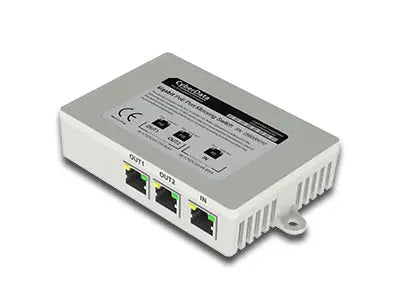

CyberData 2-Port PoE Gigabit Port Mirroring Switch (011258)
CyberData 2-Port PoE Gigabit Port Mirroring Switch (011258)
The CyberData 2-Port PoE Mirroring Switch (011258) enables users of a network attached device to split a single 802.3af or 802.3at PoE powered Gigabit Ethernet port into two Gigabit Ethernet ports for diagnostics purposes while still maintaining a PoE connection to the attached device.
CyberData 011258 Key Features
- Port Mirroring
- 2-Port auto-negotiating (no crossover cable required)
- 10.100.1000 full duplex (PoE-powered)
- Link/Status and connection speed LEDs
- RoHS compliant
Engineers, Programmers, and Field Service Personnel can utilize the Port Mirror function to monitor network traffic to and from a device with network monitoring software such as Wireshark.
Pass through PoE power
The CyberData 011258 PoE Gigabit switch is powered from a single 802.3at or 802.3af network switch and passes that power through to one or two of the downstream switch ports.
General
- Ports 1 PD input port 802.3af or 802.3at2 PSE port 802.3at (limited PD input)
- Dimensions 5.31” L x 3.03” W x 1.06” H
- Warranty 2 years
- Unit Weight 0.56 lbs.
- Standards IEEE
- Modes 10BASE-T, 100BASE-TX, and 1000BASE-T
- LEDs Link/Status and Connection Speed
- Operating temperature 0 to 70 degrees Celsius
- Part Number 011258
