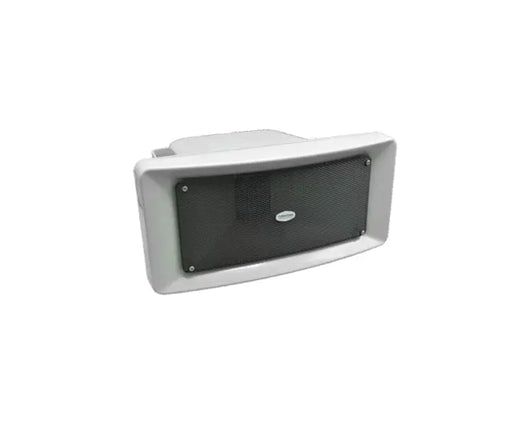

Cyberdata 011457 SIP IP66 Outdoor Horn
CyberData 011457 SIP IP66 Outdoor Horn
The CyberData SIP IP66 Outdoor Horn provides an easy method for implementing a loud IP-based overhead paging system for loud areas, warehouses, manufacturing areas, and outdoor areas.
CyberData SIP IP66 Outdoor Horn Key Features
- Support for security code access for SIP paging
- Autoprovisioning via HTTPS
- HTTPS web based configuration
- HTTP Command Interface
- 802.11q VLAN tagging
- Configurable event generation for device health and status monitoring
- Sealed network cable gland
- User-uploadable tones and up to 9 page messages
- Digital volume control
- Loud ringer function - second SIP extension
- 10 channel prioritised Multicast ports
- Built-in diagnostics
- Delayed page support - buffer call
- Cisco SRST
The interface is compatible with most IP PBX servers that comply with the SIP RFC 3261. For non-SIP environments, the speaker can be configured to listen to multicast address and port number combinations to form paging zones.
General
- Ethernet I/F: 10/100 Mbps
- Protocol: SIP RFC 3261 Compatible
- Power Input: PoE 802.3at or 802.3af
- Audio Output: 802.3at: 107.7 (+/- 0.2) dBC @1M and 1kHz, 802.3af: 104.8 (+/- 0.2) dBC @1M and 1kHz
- Payload Types: G.711 a-law, G.711 µ-law, and G.722
- IP Rating: IP66
- Operating Range: Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing
- Storage Temperature: -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
- Storage Altitude: Up to 15,000 ft. (4573 m)
- Dimensions: Length: 14.404 in. [366 mm], Width: 10.630 in. [270 mm], Height: 6.772 in. [172 mm] (without stand), 9.291 in. [236 mm] (with stand)
- Weight: 6.6 lbs. [3.0 kg]
- Boxed Weight: 8.8 lbs. [3.99 kg]
- Compliance: CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
- Warranty: 2 years limited
- Part Number: 011457
Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
