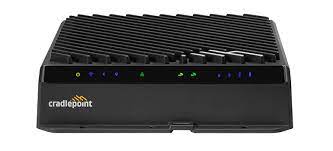

Cradlepoint R1900 Router and Netcloud Plan
![Cradlepoint R1900 Router and Netcloud Plan]()
![Cradlepoint R1900 Router and Netcloud Plan]()
Cradlepoint R1900 Router and Netcloud Plan
Available:In Stock
£2,301.60
Product Details Reviews
Please Note: If you are purchasing a SIM Card with this product, these are dispatched following contract completion. SIMs are inactive on arrival for security reasons and will be activated once received.
Please Note: This product can be purchased with various 1yr, 3yr and 5yr Netcloud plans. For more information, please contact us.
Cradlepoint R1900 Router and Netcloud Plan
The Cradlepoint 5G R1900 Router Package is a ruggedised 5G networking platform, designed to provide persistent connectivity for in-vehicle deployments. Cradlepoint NetCloud provides connectivity, network, security, location, and IoT services to connect everything in the vehicle, while providing access to IT for remote management, troubleshooting, and analytics.
Cradlepoint 5G R1900 Router Package Key Features
Deploy the ultimate 5G NR / Cat 20 LTE mobilenetworking solution with industry-leading features
Add a second cellular modem with the optional RX30 managed accessory for simultaneous dual-carrier connectivity
Take advantage of Wi-Fi 6 for the best possible connections
Enable unified edge security with application aware multi-zone firewalls, IDS/IPS, and internet security
Define policies through centralised cloud-based management for easy deployment at scale
Integrate into Automatic Vehicle Location systems with discrete GNSS and dead reckoning
Create a cellular coverage map for complete visibility into your area’s 5G and LTE coverage
Extend your deployment with additional PoE ports, GPIOs, NetCloud SDK and API, Bluetooth, and container support for customisable solutions
Ideal for High-Performance Mobile Connectivity
For organisations that depend on field forces and mobile networks, the Cradlepoint R1900 mobile router with the NetCloud Mobile Performance Service plan provides a ruggedised GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Mobile Performance Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps. The R1900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.
5G Embedded High-Performance Solution
The R1900 mobile router includes an embedded 5G modem that can automatically connect to Cat 20 LTE if the vehicle moves outside of 5G coverage. In addition, the R1900 is designed to accept the RX30 managed accessories which provide either four additional GbE PoE ports or four additional GbE ports and a second modular modem. It also has the ability to act as a controller for a separate Cradlepoint 5G Wideband Adapter. These two capabilities, along with the continually improved NetCloud platform, ensure the ability for future expansion and the best investment protection available.
Support
The NetCloud Solution Packages bring together Cradlepoint’s award-winning software plus hardware and support—specifically tailored to deliver networking best practices and the compelling value of secure networking for the modern branch.
Purpose-built for small and medium branches, the AER Series replaces multiple “boxes” with a compact, cost-effective all-in-one branch solution. Each model supports multiple WAN connections, up to two 4G LTE dual-SIM modems, a multi-port Ethernet switch (some with PoE support), and 802.11ac WiFi with guest portal.
Each solution is powered by Linux-based NetCloud OS software that provides advanced routing, SD-WAN, failover, and security functionality. Everything is configured, deployed, and managed in the cloud from a single pane of glass with NetCloud Manager.
Branch Networks
Branch networks are undergoing dramatic change. Cloud applications and IoT devices demand direct Internet access while voice and video traffic is on the rise, and temporary sites, like retail kiosks and portable construction offices, are increasingly common—driving traditional enterprise WANs to their breaking point. Cradlepoint NetCloud Branch Solutions with Gigabit-Class LTE connectivity provide bandwidth, flexibility, and reliability businesses need to address these changes and create an easier to manage, lower cost and more agile branch.
No Subscription
Cradlepoint’s Elastic EdgeSM vision provides a blueprint for next-generation Edge Networks that deliver pervasive broadband connectivity, cloud-like agility, and software extensibility—all while ensuring enterprise-class visibility, security, and control. All-in-one NetCloud Solution Packages for Branch Networks, based on Advanced Edge Routers (AER), are cloud-managed, and deployable anywhere in days, not months.
Gigabit-Class LTE with Pathway to 5G
Cradlepoint is leading the wireless WAN revolution with Gigabit-Class LTE network solutions capable of download speeds faster than wired broadband —and that’s just the beginning. With 5G right around the corner, Cradlepoint is at the forefront of delivering the all-wireless, software-defined branch—with the performance necessary for today's business applications, and tomorrow’s. Whether moving to an all wireless solution or adding Gigabit-Class connectivity as an alternate WAN link, Cradlepoint Branch solutions delivers unprecedented speed and agility now, while providing a pathway to 5G in the future.
Comprehensive IoT Support
To accommodate the security, computing, and management requirements for branch IoT devices at the WAN edge, Cradlepoint’s branch solutions provide comprehensive IoT support. The NetCloud platform allows organisations to run Edge Computing applications right on the router. The NetCloud Perimeter feature uses Software-Defined Perimeter technology to instantly spin up secure and segmented device-to-cloud overlay networks, cloaking them from the Internet and protecting trusted networks. Everything is configured, deployed, and managed using NetCloud Manager.
Cradlepoint 5G R1900 Router Package Technical Specifications
Interfaces
Modem: Embedded 5GB NR FR1 low-band, mid-band, and 4G LTE Category 20 modem
- 4 x SMA cellular antenna connectors
Ethernet: 4 x GbE RJ45 (LAN/WAN switchable)
PoE: Optional RX30-PoE Managed Accessory PoE Switch
- 4 x GbE RJ45 Ports with 60W PoE Budget
Wi-Fi: Dual-radio, dual-band, concurrent operation(2.4 GHz & 5 GHz)
- 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS(U.S. & Canada only, global pending)
- 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz)
- 2 x RP-SMA Wi-Fi antenna connectors
- Global Optimized Wi-Fi & International SDR
- WPA2/WPA3 Personal, WPA2/WPA3Enterprise, Open
- 802.11k, 802.11v
Bluetooth: Embedded Bluetooth 5.1 (10 dBm max)
- 1 x RP-SMA connector
Expansion /Console:
- 1 x USB 2.0 Type A (Output: 5V, 500mA,2.5W)
- 1 x DB9 RS-232
- 8-pin (2x4) Molex micro-fit GPIO connector(3 mm locking type)
- RX30 Series Managed Accessories
- RX30-PoE Switch (optional)
- RX30-MC Modem & Switch (optional)
GNSS / GPS: 1 x SMA GNSS antenna connector
Environmental
Temperature:
- Operating: -22 °F to 158 °F (-30 °C to 70 °C)
- Storage: -40 °F to 185 °F (-40 °C to 85 °C)
Humidity:
- Operating: 10% to 90%
- Storage: 5% to 95%
Ingress Protection: IP64 Rated
Power
Power Required: DC input steady state voltage range: 9–36 VDC(requires in-line fuse for vehicle installations)
- For 9–24 VDC installations, use a 3 A fuse
- For > 24 VDC installations, use a 2.5 A fuse
- Connector type: 4-pin 2x2 Molex micro-fit
Reverse polarity & transient voltage protection per ISO 7637-2
Ignition sensing (auto ON & time-delay OFF)
R1900-5GB power consumption (12V input, 25C ambient):
- Idle: 11 W
- Typical: 19 W
- Heavy: 22 W
Physical
Size: 6.77 x 5.82 x 1.61 in (172 x 148 x 41 mm)
Weight: 2.15 lb (0.98 kg)
Certifications
Safety: UL/CUL, CB Scheme, EN60950-1, EN62368,E-Mark
Materials: WEEE, RoHS, REACH, California Prop 65
Shock/Vibration/Humidity:Compliant with MIL STD 810G & SAEJ1455
WiFi Power
FCC:
- 2.4 GHz: 23 dBm Conducted
- 5260–5825 MHz: 21.90 dBm Conducted
EU:
- 2.4 GHz: 14.00 dBm Conducted
- 5500-5700 MHz: 18.00 dBm Conducted
Canada:
- 2.4 GHz: 23.00 dBm Conducted
- 5500-5580 MHz: 22.00 dBm Conducted
- 5660-5825 MHz: 21.89 dBm Conducted
Japan:
- 2.4 GHz: 16.92 dBm Conducted
- 5500-5720 MHz: 21.00 dBm Conducted
Global Safe Mode: 2.4 GHz: 14 dBm Conducted
Other
Technology: 5G NR (low-band, mid-band FR1) and 4G LTE Category 20 LTE-Advanced Pro with Dual Connectivity
- Dual SIM slots, 4FF form factor
Fallback: WCDMA/UMTS/HSPA+
Carrier Aggregation: LTE only; up to 7CA downlink, 2CA uplink ENDC 5G + LTE; downlink and uplink supported - Refer to modem carrier aggregations article
Peak Downlink Rates: Up to 4.14 Gbps — based on 20 Layers LTE + TDD (100 MHz BW, 256 QAM, 4 x 4)
Peak Uplink Rates: Up to 660 Mbps — based on 2 Layers LTE + TDD (100 MHz BW, 256 QAM, SISO)
MIMO: 4x4 MIMO
QAM: Up to 256 — FR1
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
5G NR Bands: n1, n2, n3, n5, n7, n8, n12, n20, n25, n38, n40, n41, n48, n66, n71, n77, n78, n79
WCDMA Bands: B1, B2, B3, B4, B5, B6, B8, B9, B19
Power: LTE only; 23 dBm ± 1 (typical conducted) ENDC 5G + LTE; 20 dBm ± 1 (typical conducted)
Antennas: 4 x SMA female connectors
- External 600 MHz - 6 GHz cellular antennas (not included)
GNSS/GPS: Discrete active GPS with dead reckoning
SMS: Yes
Regulatory: FCC, IC, CE, RCM (pending)
Network Operator Standards: PTCRB, GCF
Network Operator Certifications: AT&T, Verizon
Public Safety Network Certifications: Pending: FirstNet Ready™ and Verizon Response Verified
Private LTE: Yes, includes FCC Part 96 (CBRS Band 48)
