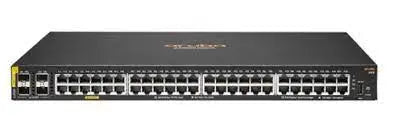

Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)
![Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)]()
![Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)]()
Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)
Available:In Stock
£0.00
Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)
The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimised for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.
Aruba 6100 Series Key Features
Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
Manage via single pane of glass with Aruba Central across wired, wireless, and WAN
Automated configuration and verification with Aruba NetEdit
Software defined ready with REST APIs
Simplify adds, moves and changes with colorless ports
The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements.
Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A) Technical Specification
General
Power Consumption Description: Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W
Input Voltage: 100-127 VAC / 200-240 VAC
External I/O Ports: 48x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports
Latency1 Gbps: 1Gbps: 1.5 μSec, 10Gbps: 1.8μSec
Routing Capabilities: ACLs, robust QoS and static routing
Switching Capacity: 176 Gbps
Throughput: 98.6 Mpps
Memory and Processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3
PoE Capability: 370W Class 4 PoE/PoE+
Warranty Standard Statement: Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/productwarranties/ for warranty and support information included with your product purchase
Weight (imperial): 11.07 lbs
Weight (metric): 5 kg
Product Dimensions (imperial): 1.73 x 17.4 x 12 in
Product Dimensions (metric): 4.4 x 44.2 x 30.48 cm
Operating Temperature: 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
