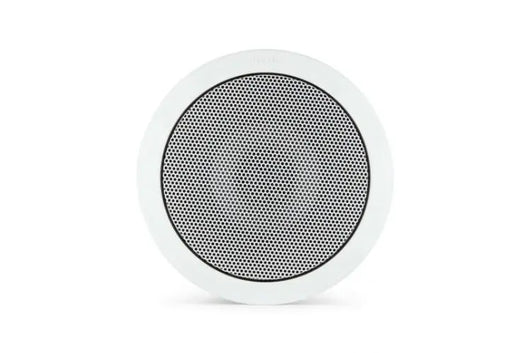

Algo 8198 IP PoE+ Ceiling Speaker
Algo 8198 IP PoE+ Ceiling Speaker
The Algo 8198 IP PoE+ Ceiling Speaker a SIP compliant, multicast capable device for live voice paging, alerts, announcements, and emergency notification. Its patent-pending method drives multiple satellite speakers, reducing network ports and cables while maintaining the benefits of IP paging. Upgrade your audio system now!s
Algo 8198 IP PoE+ Ceiling Speaker:
- Satellite speaker technology; capable to power and supervise satellite speakers.
- PoE and PoE+ (Power over Ethernet).
- Supports SIP, Multicast, Polycom Group Page, InformaCast, Revolution.
- Ambient noise responsive.
This talkback capable speaker features multicast scalability, wideband/fullband audio codec support for clear voice paging, and user-friendly configuration via a web interface or auto-provisioning. Customize WAV files for emergency alerts and enjoy powerful audio with dual Class D amplifiers.
Algo-8198 Technical Specifications
Power
- PoE / PoE+
- 48 V PoE IEEE 802.3af/at
- Max 25.5 W - Idle nominal 2.5 W
SIP
- Extensions: 50 Page & 10 Alerting/Ring extensions with multicast scalability
- Transport Protocols: UDP, RTP, TCP
- Security: TLS, MTLS, SRTP
Multicast Compatibility
- Multicast: RTP Multicast (Send & Receive 50 zones)
- Third Party Multicast: PolycomTM Group Page, SinglewireTM InformaCast, Syn-AppsTM Revolution
API
- API: RESTful API
Digital IO
- Relay Input: Normally open or normally closed dry contact supervision.
- Compatible with Algo 1202, 1203, and 1204 Accessories.
Satellite Speakers
- Quantity: Up to 3 x 1198 Satellite Ceiling Speaker
- Speaker Connections: Patch cable 4 Pair UTP 24 AWG RJ45 plug terminated T568A or T568B "Straight-Through". Maximum recommended patch cable length 50 feet (13m) between each speaker.
- Supervision: Auto-detection and monitoring of up to three satellite speakers
- Configuration: Via host 8198 IP Speaker web interface
Audio
- Audio Codecs: G.711 A-law, G.711 u-law, G.722, Opus 48 kHz
- Driver: 6.5” (16.5 cm) Coaxial UV stabilized
- Driver Response: 55 – 18,000 Hz (- 10 dB)
- Driver Sensitivity: 88 dBA 1m/1W (1 kHz)
- Max Audio Power: 16 Watts (shared equally between 8198 and up to 3 x 1198)
- Dispersion Angle: 140° (2 kHz -6 dB)
- Audio Memory: 1 GB
- Microphone: Omni-directional, talkback and ambient noise monitoring
- Audio Controls: Volume, AGC, Latency, LF Cut
- Anti-Feedback Delay: Cache to memory and release
Network
- Network: IPv4, IPv6, DHCP, VLAN, MDNS
- Secure SIP: TLS, MTLS, SRTP
- Link Layer: LLDP, CDP
- QoS: DSCP (SIP, RTP, RTCP)
- Web Interface: HTTP, HTTPS
- Provisioning: TFTP, FTP, HTTP, HTTPS
- DHCP Options 66, 150, 160
- Reboot via SIP Check-sync
- NAT: STUN, TURN, CRLF Keep Alive
- SIP Outbound
- Address Resolution: DNS, SRV Record
- Supervision: SNMP V1.3, RTCP, Algo 8300
- Redundancy: Secondary & Tertiary SIP Servers
Environmental & Mechanical
- Satellite Speaker Connector: 1 x RJ45 output connector
- Environmental: 32 to 104 deg F (0 to + 40 degC); 10-95% RH non-condensing. Dry indoor locations only. (Contact Algo for extreme environments)
- Dimensions: 8” (20.5cm) Diameter without trim ring, 9.8” (24.9cm) with trim ring. Total height 7.0” (17.8cm)
- Mounting: Blind mounts into 8” hole. Certified for Air Handling Spaces. Clearance requirement of 5.5” (14.0cm) above ½” (1.27cm) gypsum board ceiling
- Weight: 6 lb (2.7 Kg)
Certified Compliance
- IEC 62368-1, IEEE 802.3-2018, RoHS, CE,
