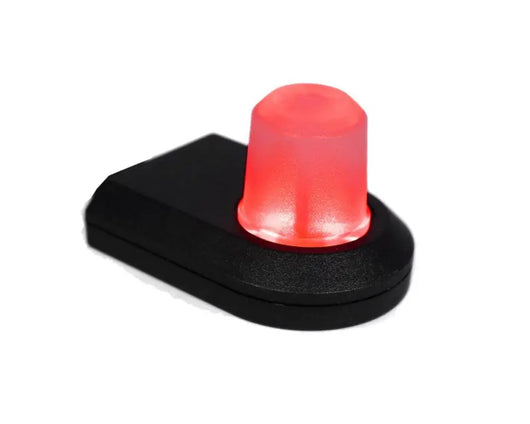

Algo 1127 Red LED Visual Alerter
Algo 1127 Red LED Visual Alerter compatible with Algo-8180 with UK Power Supply
The Algo 1127 Red LED Visual Alerter is an attractive high-performing LED light that provides visual indication of telephone ringing and notification events where a relay or audio detection is available.
Algo 1127 Visual Alerter w. Power Supply Features
- Highly visible yet softly diffused light
- Four selectable flash patterns
- 18 high-intensity LEDs, Lens Cover Red only
- Compatible with Algo 1825PM, 8180, 8186 and 8188 speakers
- Easy installation and mounting on a wall or ceiling
This Algo 1127 is available in red. The light is perfect for office environments where it may sit on the desktop, mount vertically or horizontally, or be located remotely. Constructed with 18 high-intensity LEDs, the 1127 provides a softly diffused light that is highly visible in all directions.
Direct activation is by relay input or audio detection. The light is compatible with the 1825PM Duet Plus, and all variety of Algo IP speakers including the 8180, 8186 and 8188 models. A 24V power supply is included with the product.
Note: For telephone in-use or message waiting applications, please contact Algo for further information.
New Features:
- Product Overview High performance LED visual alerter light for visual event notification of telephone in-use, ringing, message waiting, ACD caller in queue, and dry contact events.
- LED Output 18 high intensity low dispersion angle LEDs diffused
- Plug & Play connectors 2.1 mm ID jack input for power, 24 Vdc 80 mA polarity independent 2.5 mm jack input for dry contact closure
- Terminal connections Power, signal (dry contact or AUX SPKR from 1825 Duet Plus)
- Maximum wire distance 1,000 feet (300 m) using 24 gauge wire for remote power
- Dry contact detection 15 kOhms max, 1 mA 24 V resistive
- Audio detection 3.3 Vrms 400-1200 Hz
- Mounting Adhesive hook & loop tape or screws (supplied)
- Colour = Red
- Supported Telephones SIP, Avaya Heritage Nortel digital, Meridian Digital Centrex, IP Softphone 2050, and analog.
