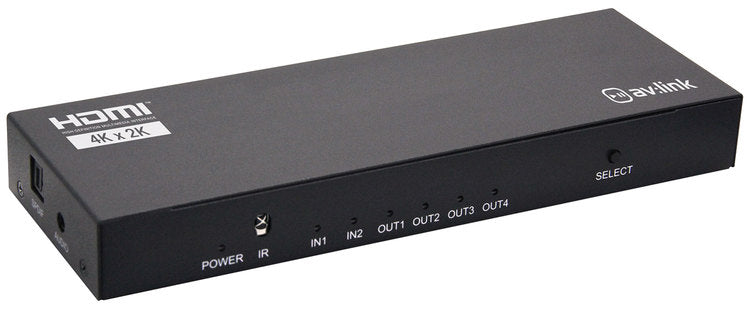

4K HDMI Switch/Splitter 2x4
4K HDMI Switch/Splitter 2x4

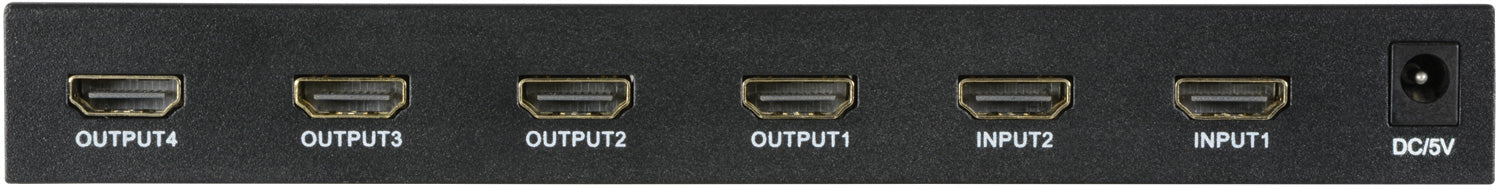

A 4K HDMI splitter to switch between 2 source devices, with up to 4 display outputs. Use with HDMI cables of a combined 20m per output for HD resolution, or a combined 10m per output for 4K resolution, without signal loss. SPDIF and 3.5mm jack outputs allow the audio signal of the selected source device to simultaneously be channelled through a separate sound system. Compatible with the latest digital TV boxes making it ideal for hospitality and entertainment venues. Supplied with IR remote to switch between sources.
- Simple connection and operation
- Gold plated HDMI connectors for optimum signal transfer
- Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
- Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
- Digital SPDIF and analogue 3.5mm jack audio outputs
- Ideal for entertainment, hospitality and other commercial venues with multiple displays

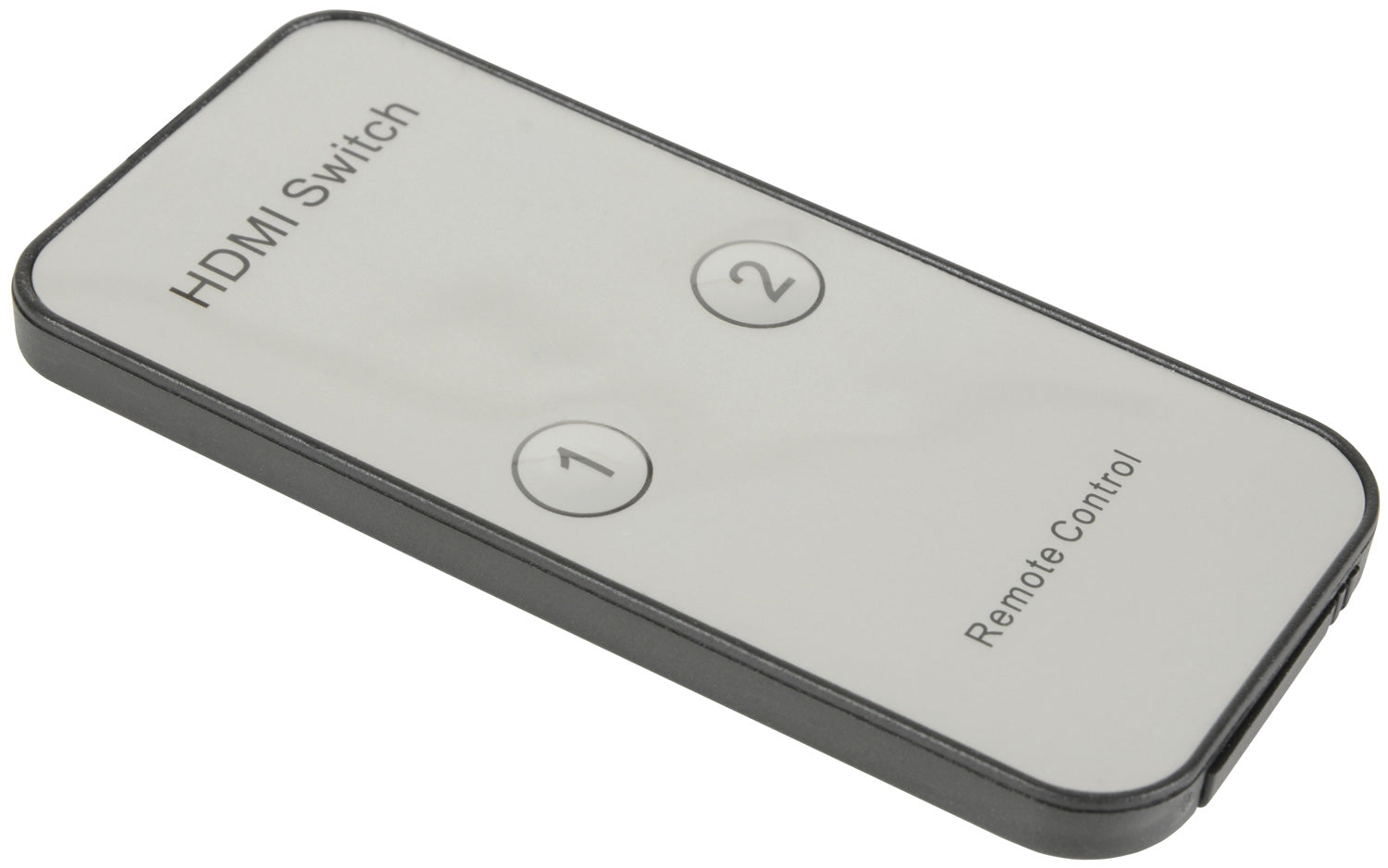

- IR remote and UK power adaptor supplied
- ResolutionUp to 3840 x 2160 @ 60Hz
- Display colours8/10/12bit deep colour
- HDCP version1.4 (input only)
- Audio formatDTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
- Max. bandwidth600MHz
- Max. baud rate6Gbps
- Transmission distance20m max HD or 10m max 4K (20m input/output @ 1080p and 10m input/output @ 4K)
- Max. working current500mA
- Operating temperature range-15°C ~ +55°C
- Battery : remoteCR2025 (supplied)
- Dimensions200 x 70 x 25mm
- Weight305g
Trade Information
- SKU128.835UK
- Barcode EAN5015972192153
- Tariff code8536508090
- Country of originChina (CN)
- Packaging typeGift Box
- Package dims55 x 170 x 223mm
- Package quantity1 unit
- Nett weight0.2800kg
- Gross weight0.5570kg
- Carton dims308 x 312 x 428mm
- Carton quantity20 units
- Carton weight11.25kg
