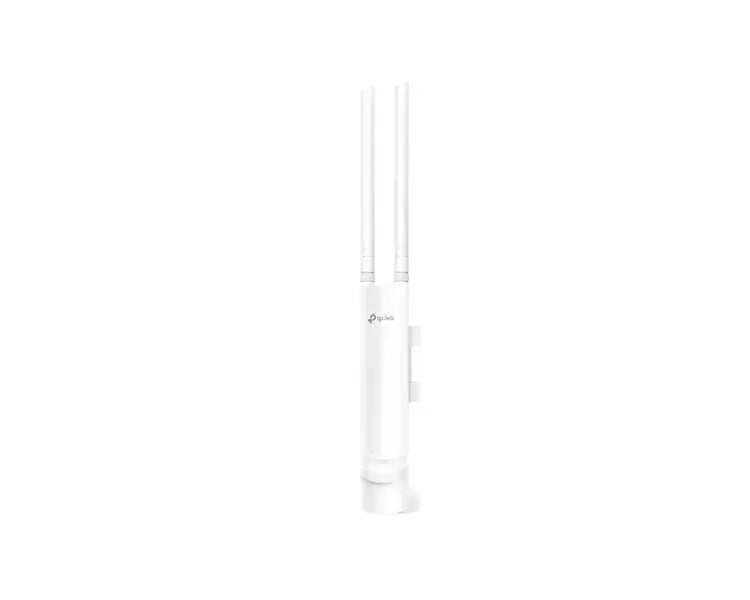

TP-Link AC1200 Wireless Dual-Band Indoor/Outdoor Access Point (EAP225-Outdoor)
![TP-Link AC1200 Wireless Dual-Band Indoor/Outdoor Access Point (EAP225-Outdoor)]()
![TP-Link AC1200 Wireless Dual-Band Indoor/Outdoor Access Point (EAP225-Outdoor)]()
TP-Link AC1200 Wireless Dual-Band Indoor/Outdoor Access Point (EAP225-Outdoor)
Available:In Stock
£92.40
TP-Link AC1200 Wireless Dual-Band Indoor/Outdoor Access Point (EAP225-Outdoor)
The TP-Link EAP225-Outdoor is a wireless MU-MIMO Gigabit indoor and outdoor access point. EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment. EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
TP-Link EAP225-Outdoor Key Features
- Durable, weatherproof enclosure for outdoor Wi-Fi applicationsUp to 1200Mbps with 2×2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Cloud centralised management and Omada app for ultra convenience and easy management
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
TP-Link EAP225-Outdoor - Technical Specifications
Hardware Features
- Interface: Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
- Button: Reset
- Power Supply:
- 802.3af/A PoE
- 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) - Power Consumption: 10.5 W
- Dimensions ( W x D x H ): 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
- Antenna: 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
- Weatherproof Enclosure: IP65
- Mounting: Pole /Wall Mounting (Kits included)
- Hardware Watch Dog: Yes
Wireless Features
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
- 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 5.5, 11Mbps
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - Wireless Functions:
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client - Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support - Transmission Power:
- CE:≤20dBm(2.4GHz,EIRP), ≤27dBm(5GHz,EIRP)
- FCC:≤23dBm(2.4GHz), ≤22dBm(5GHz)
Management
- Omada App: Yes
- Centralised Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller - Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
Other
- Certification: CE, FCC, RoHS
- Package Contents:
- AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point EAP225-Outdoor
- Power Adapter
- Mounting Kits
- Installation Guide - Environment:
- Operating Temperature: -30℃~70℃ (-22℉~158℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
