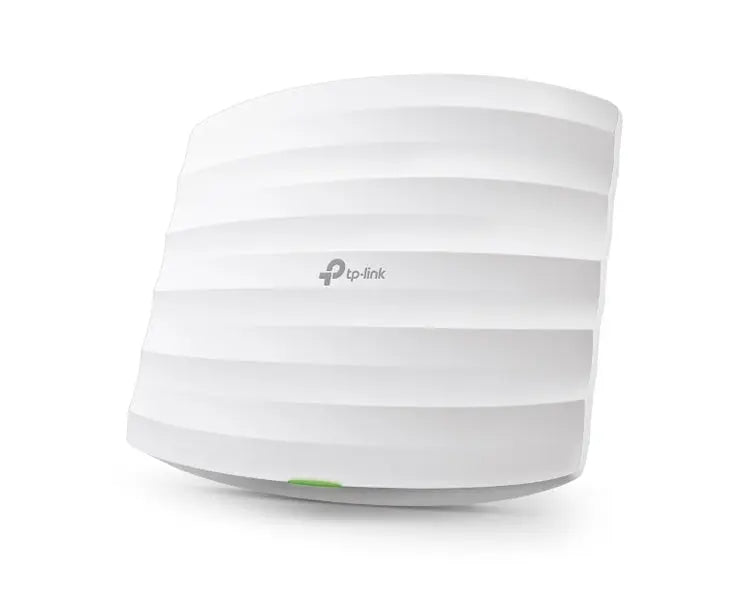

TP-Link AC1750 Wireless Gigabit Ceiling Mount Access Point (EAP245)
![TP-Link AC1750 Wireless Gigabit Ceiling Mount Access Point (EAP245)]()
![TP-Link AC1750 Wireless Gigabit Ceiling Mount Access Point (EAP245)]()
TP-Link AC1750 Wireless Gigabit Ceiling Mount Access Point (EAP245)
Available:In Stock
£112.44
TP-Link AC1750 Wireless Gigabit Ceiling Mount Access Point (EAP245)
The TP-Link EAP245 is a wireless MU-MIMO Gigabit ceiling mount access point featuring superior Wi-Fi speeds and Performance. QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands. EAP245 supports both 802.3at PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
TP-Link EAP245 Key Features
- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- Cloud centralised management and Omada app for ultra convenience and easy management
- Support Power over Ethernet (802.3at) for convenient and affordable installation
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- Load balance ensures large numbers of users have smooth network experiences in high density business networks
- Supports management VLAN for an enhanced network management
TP-Link EAP245 - Technical Specifications
Hardware Features
- Interface: Gigabit Ethernet (RJ-45) Port *2 (Support IEEE802.3af PoE and Passive PoE )
- Physical Security Lock: Yes
- Button: Reset
- Power Supply:
- 802.3af/A PoE
- 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) - Power Consumption: 12.3 W
- Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
- Antenna Type: Internal Omni
- 2.4 GHz: 3× 3.5 dBi
- 5 GHz: 3× 4 dBi - Mounting: Ceiling /Wall Mounting (Kits included)
- Hardware Watch Dog: Yes
Wireless Features
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
- 5 GHz: Up to 1300 Mbps
- 2.4 GHz: Up to 450 Mbps - Wireless Functions:
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Seamless Roaming
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client - Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK - Transmission Power:
- CE:<20 dBm(2.4 GHz), <23 dBm(5 GHz)
- FCC:<24 dBm (2.4 GHz), <24 dBm (5 GHz)
Management
- Omada App: Yes
- Centralised Management:
- Omada Software Controller
- OC200 - Cloud Access: Yes (Through Omada Software Controller or OC200)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: Yes
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
Other
- Certification: CE, FCC, RoHS
- Package Contents:
- AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
- Power Adapter
- Mounting Kits
- Installation Guide - System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
