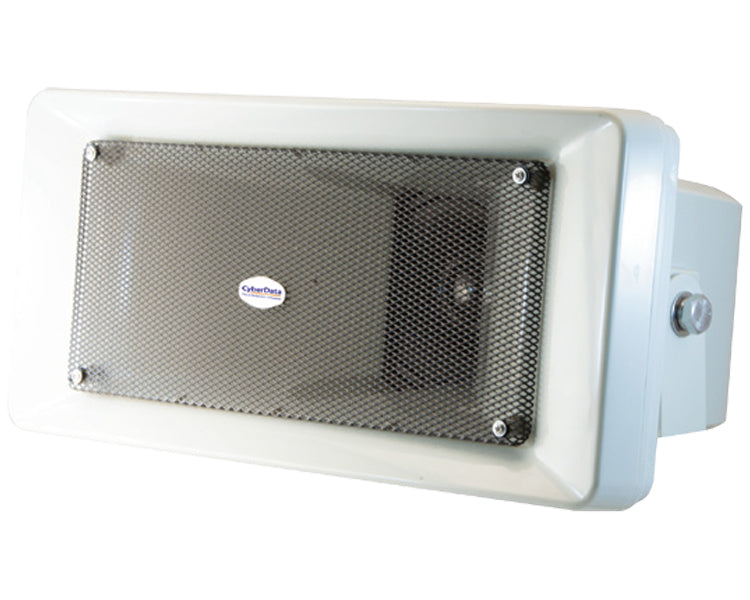

CyberData InformaCast Enabled IP66 Outdoor Horn (011472)
CyberData InformaCast Enabled IP66 Outdoor Horn (011472)
The CyberData InformaCast Enabled IP66 Outdoor Horn (011472) provides an easy method for implementing a loud IP-based overhead paging system for loud areas, warehouses, manufacturing areas, and outdoor areas. Now with up to 9 user-stored messages. The interface is compatible with most SIP-based IP PBX servers that comply with the SIP RFC 3261. For non-SIP environments, the speaker can be configured to listen to multicast address and port number combinations to form paging zones.
Can receive pages directly from Polycom phones
CyberData InformaCast Enabled IP66 Outdoor Horn (011472) Key Features
- SIP Enhanced interoperability for hosted environments
- CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData - NEW SECURITY FEATURES:
- Support for security code access for SIP paging
- Autoprovisioning via HTTPS
- HTTPS web based configuration - Support for G.711, G.722, G.729 codecs
- 802.11q VLAN tagging
- Configurable event generation for device health and status monitoring
- 9 user-uploadable page messages
- IP66-rated
- Sealed network cable gland
- SIP and Simultaneous Multicast
- Page from Polycom phones
- Dual-speed ethernet 10/100 Mbps
- Web-based configuration
- PoE 802.3at and 802.3af-enabled
- User-uploadable tones and messages
- Digital volume control
- Second SIP endpoint "Night Ringer"
- Autoprovisioning
- HTTP Command Interface
- 10 channel prioritised Multicast ports
- Built-in diagnostics
- Delayed page support
- Cisco SRST
Singlewire InformaCast Features
- Singlewire Informacast compatibility available.
- Includes support for Informacast resiliency.
- Supports both SIP and Singlewire InformaCast
- InformaCast compliant
- InformaCast CK compliant
Product Specifications
- Ethernet I/F: 10/100 Mbps
- Protocol: InformaCast and SIP RFC 3261 Compatible
- Power Input: PoE 802.3at or 802.3af
- Audio Output:
- 802.3at: 107.7 (+/- 0.2) dBC @1M and 1kHz
- 802.3af: 104.8 (+/- 0.2) dBC @1M and 1kHz - Operating Range:
- Temperature: -40˚ C to 55˚ C (-40˚ F to 131˚ F)
- Humidity: 5-95%, non-condensing - Storage Temperature: Temperature: -40˚ C to 70˚ C (-40˚ F to 158˚ F)
- Storage Altitude: Up to 15,000 ft. (4573 m)
- Payload Types: G.711 a-law, G.711 µ-law, G.722, G.729
- Dimensions:
- Length: 366 mm [14.404 in.]
- Width: 270 mm [10.630 in.]
- Height: 172 mm [6.772 in.] (without stand)
- Height: 236 mm [9.291 in.] (with stand) - Weight: 3 kg [6.6 lbs.]
- Compliance: CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
- Warranty: 2 Years Limited
- Part Number: 011472
