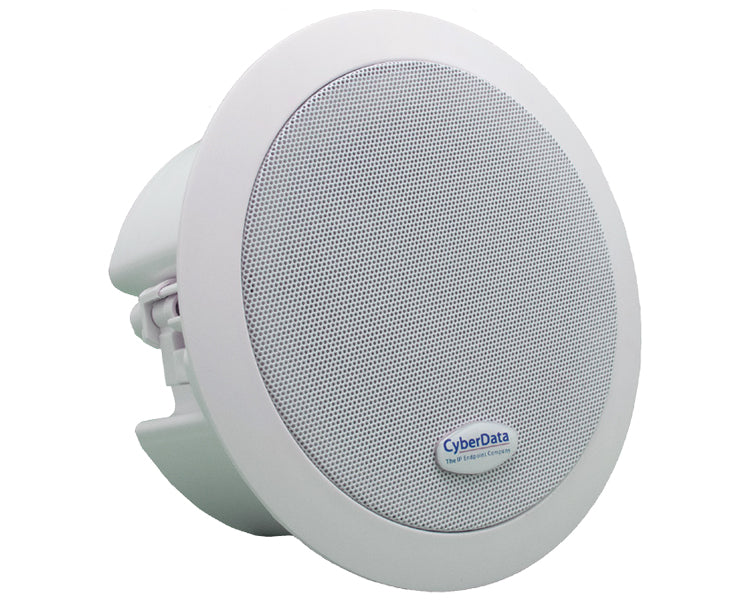

CyberData InformaCast Enabled Ceiling Speaker (011504)
CyberData InformaCast Enabled Ceiling Speaker (011504)
The CyberData InformaCast Enabled Ceiling Speaker (011504) is an economical Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address product that plays InformaCast and multicast messages. It easily connects to your PoE network with a single Ethernet cable connection. The device's small footprint allows the speaker to be discreetly mounted in your ceilings.
CyberData InformaCast Enabled Ceiling Speaker (011504) Key Features
- Capable of receiving Singlewire InformaCast and multicast messages
- Supports Singlewire InformaCast High Quality Audio
- TLS security for autoprovisioning and web-based configuration
- Supports audio prioritisation for 10 multicast paging groups
- Network-adjustable speaker volume
- User upgradeable firmware via web interface or autoprovisioning
- 802.11q VLAN tagging
- Configurable event generation for device health and status monitoring
- High efficiency speaker driver
- Small footprint
Product Specifications
- Ethernet I/F: 10/100 Mbps
- Protocol: RTP
- Notification Software: Singlewire InformaCast v4.0 and above
- Power Input: PoE 802.3af
- Audio Output: 802.3af – SPL 99 dB @ 1 meter
- Payload Types: G.711 a-law, G.711µ-law, and G.729
- Network Security: TLS/SSL 1.2
- Operating Range:
- Temperature: -40˚ C to 55˚ C (-40˚ F to 131˚ F)
- Humidity: 5-95%, non-condensing - Storage Temperature: -40˚ C to 70˚ C (-40˚ F to 158˚ F)
- Storage Altitude: Up to 15,000 ft. (4573 m)
- Dimensions:
- 201.5 mm [7.93 in.] Grill Diameter
- 170 mm [6.70 in.] Can Diameter
- 89.4 mm [3.52 in.] Can Depth - Weight: 1.09 kg [2.4 lbs]
- Boxed Weight: 1.32 kg [2.9 lbs]
- Compliance: CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
- Warranty: 2 Years Limited
- Part Number: 011504
