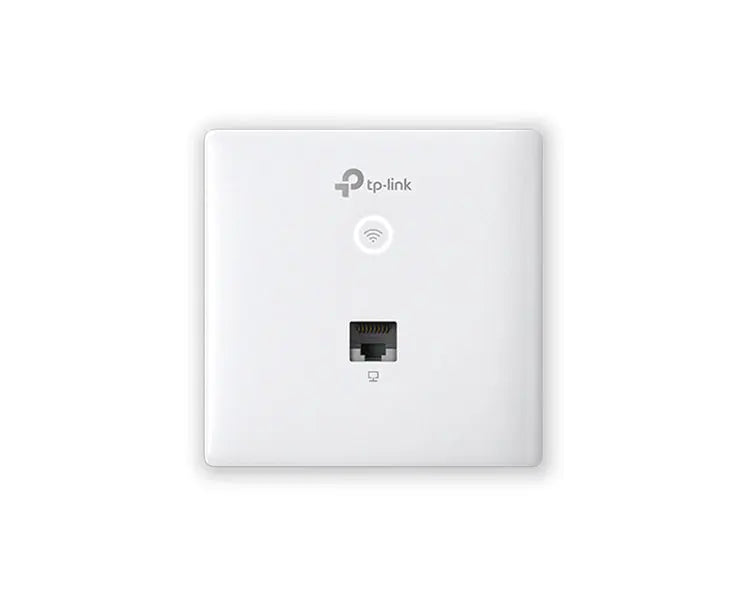

TP-Link AC1200 Wall Plate Dual-Band Wi-Fi Access Point (EAP230-Wall)
![TP-Link AC1200 Wall Plate Dual-Band Wi-Fi Access Point (EAP230-Wall)]()
![TP-Link AC1200 Wall Plate Dual-Band Wi-Fi Access Point (EAP230-Wall)]()
TP-Link AC1200 Wall Plate Dual-Band Wi-Fi Access Point (EAP230-Wall)
Available:In Stock
£72.60
TP-Link AC1200 Wall Plate Dual-Band Wi-Fi Access Point (EAP230-Wall)
The TP-Link EAP230-Wall is a wireless MU-MIMO Gigabit wall plate access point which is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user. 802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
TP-Link EAP230-Wall Key Features
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
- Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralised Cloud Management, and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
- Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
TP-Link EAP230-Wall - Technical Specifications
Hardware Features
- Interface:
- Uplink: 1× 10/100/1000 Mbps Ethernet Port
- Downlink: 1× 10/100/1000 Mbps Ethernet Port - Physical Security Lock: No
- Button: LED/Wi-Fi Button, RESET
- Power Supply: 802.3af/802.3at PoE
- Power Consumption: 7W
- Dimensions: 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
- Antenna Type: 2 Dual-Band Antennas
- 2.4 GHz: 2× 4 dBi
- 5 GHz: 2× 3.6 dBi - Mounting: Wall Plate Mounting
- Hardware Watch Dog: Yes
Wireless Features
- Wireless Standards: IEEE 802.11n/g/b/ac
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
- 5 GHz: Up to 867 Mbps
- 2.4 GHz: Up to 300 Mbps - Wireless Functions:
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
- MU-MIMO
- Band Steering
- Beamforming - Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN port based VLAN
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK - Transmission Power:
- CE:<20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz, EIRP)
Management
- Omada App: Yes
- Centralised Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller - Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
Other
- Certification: CE, RoHS
- Package Contents:
- Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
- Mounting Screw
- Installation Guide - System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
