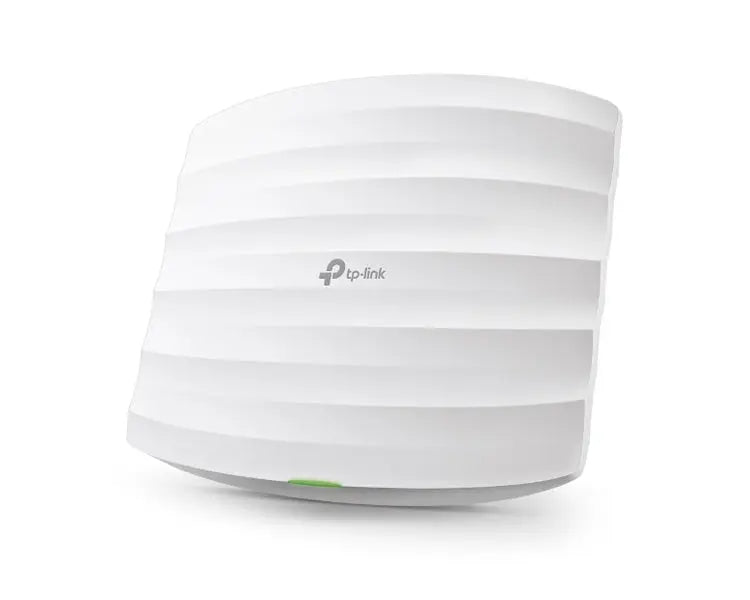

TP-Link AC1350 Wireless Gigabit Ceiling Mount Access Point (EAP225)
![TP-Link AC1350 Wireless Gigabit Ceiling Mount Access Point (EAP225)]()
![TP-Link AC1350 Wireless Gigabit Ceiling Mount Access Point (EAP225)]()
TP-Link AC1350 Wireless Gigabit Ceiling Mount Access Point (EAP225)
Available:In Stock
£62.28
TP-Link AC1350 Wireless Gigabit Ceiling Mount Access Point (EAP225)
The TP-Link EAP225 is a wireless MU-MIMO Gigabit ceiling mount access point. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time. EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.
TP-Link EAP225 Key Features
Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
Cloud centralised management and Omada app for ultra convenience and easy management
Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
TP-Link EAP225 - Technical Specifications
Hardware Features
Interface: Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE *)
Physical Security Lock: Yes
Button: Reset
Power Supply:
- 802.3af/A PoE
- 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption: EU: 10.5 W, US: 12.6W
Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type: 3 Internal Omni*
- 2.4 GHz: 4 dBi
- 5 GHz: 5 dBi
Mounting: Ceiling /Wall Mounting (Kits included)
Hardware Watch Dog: Yes
Wireless Features
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
- 5 GHz: Up to 867Mbps
- 2.4 GHz: Up to 450Mbps
Wireless Functions:
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
Transmission Power:
- CE:≤20dBm(2.4GHz,EIRP), ≤23dBm(5GHz,EIRP)
- FCC:≤24dBm(2.4GHz), ≤22dBm(5GHz)
Management
Omada App: Yes
Centralised Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
EAP Controller Software: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
Telnet: Yes
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Other
Certification: CE, FCC, RoHS
Package Contents:
- AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
- Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
