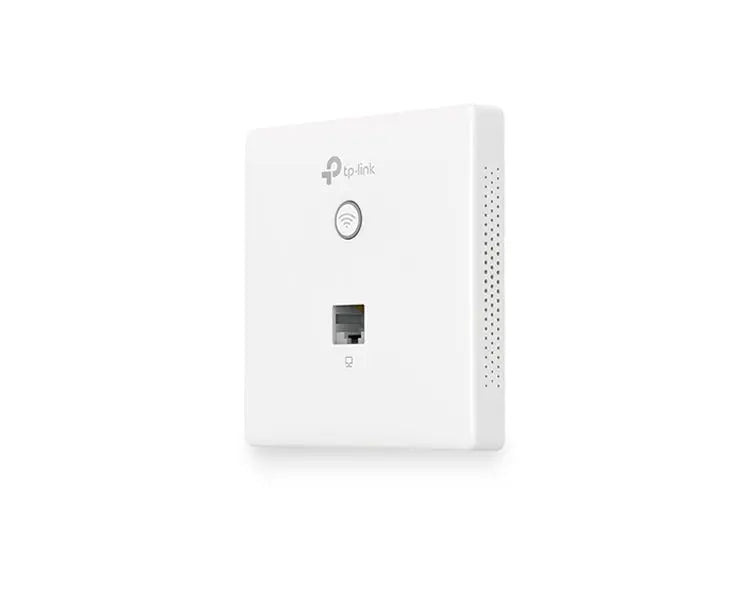

TP-Link 300Mbps Wireless N Wall Plate Access Point (EAP115-Wall)
![TP-Link 300Mbps Wireless N Wall Plate Access Point (EAP115-Wall)]()
![TP-Link 300Mbps Wireless N Wall Plate Access Point (EAP115-Wall)]()
TP-Link 300Mbps Wireless N Wall Plate Access Point (EAP115-Wall)
Available:In Stock
£33.36
TP-Link 300Mbps Wireless N Wall Plate Access Point (EAP115-Wall)
The TP-Link EAP115-Wall is a wireless N wall plate access point with excellent WiFi access. The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness. With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.
TP-Link EAP115-Wall Key Features
- Easy-mount construction allows installation into any standard EU-type data wall-box
- Compact, low-profile design fits discreetly with any existing interior style
- Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
- Support Power over Ethernet (802.3af) for convenient and affordable installation
- Enterprise class Wi-Fi security helps to decrease network security threats
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Supports management vlan for an enhanced network management
TP-Link EAP115-Wall - Technical Specifications
Hardware Features
- Interface: 10/100Mbps Ethernet (RJ-45) Port *2
- Button: LED/Wi-Fi Button, RESET
- Power Supply: PoE(IEEE 802.3af)
- Power Consumption: 2.8 W
- Dimensions ( W x D x H ): 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)
- Antenna Type: Internal 2*1.8dBi Omni
- Mounting: Wall Plate Mounting
- Hardware Watch Dog: Yes
Wireless Features
- Wireless Standards: IEEE 802.11n/g/b
- Frequency: 2.4GHz
- Signal Rate:
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic) - Wireless Functions:
- Multiple SSIDs (Up to 8 SSIDs)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client - Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN port based VLAN
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK - Transmit Power: CE: ≤20dBm(2.4GHz)
Management
- Omada App: Yes
- Centralised Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller - Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- EAP Controller Software: Yes
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- Telnet: Yes
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
Other
- Certification: CE, RoHS
- Package Contents:
- 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
- Mounting Screw
- Installation Guide - System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
