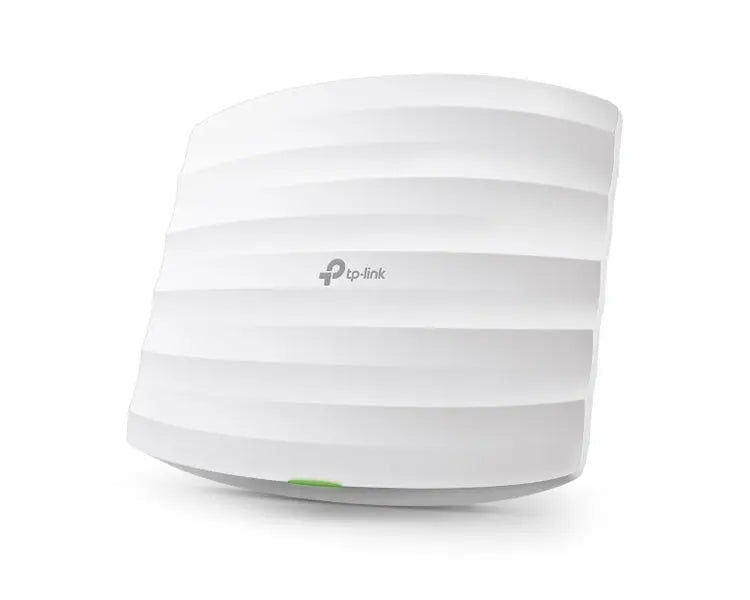

TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP115)
![TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP115)]()
![TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP115)]()
TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP115)
Available:In Stock
£37.68
TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP115)
The TP-Link EAP115 is an affordable, scalable business Wi-Fi solution featuring easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimise on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralised management system.
TP-Link EAP115 Key Features
- Cloud centralised management and Omada app for ultra convenience and easy management
- Supports Power over Ethernet (802.3af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Enterprise class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- Supports management vlan for an enhanced network management
TP-Link EAP115 - Technical Specifications
Hardware Features
- Interface: Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE
- Button: Reset
- Power Supply: 802.3af PoE or external 9VDC/0.6A power supply
- Power Consumption: 2.8 W
- Dimensions: 7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
- Antenna Type: Internal 2* 3dBi Omni
- Mounting: Ceiling /Wall Mounting (Kits included)
Wireless Features
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4-2.4835GHz
- Signal Rate:
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic) - Reception Sensitivity:
- 300M: -71dBm@10% PER
- 150M: -75dBm@10% PER
- 54M: -78dBm@10% PER
- 11M: -93dBm@8% PER
- 6M: -92dBm@10% PER
- 1M: -96dBm@8% PER - Wireless Functions:
- Multiple SSIDs (Up to 8 SSIDs)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client - Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK - Transmission Power:
- CE:<19 dBm(EIRP)
- FCC:<21 dBm
Management
- Omada App: Yes
- Centralised Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller - Omada Controller Software: Yes
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- Telnet: Yes
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- Management VLAN: Yes
Other
- Certification: CE, FCC, RoHS
- Package Contents:
- 300Mbps Wireless N Ceiling Mount Access Point EAP115
- Power Adapter
- Mounting Kits
- Installation Guide - System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
