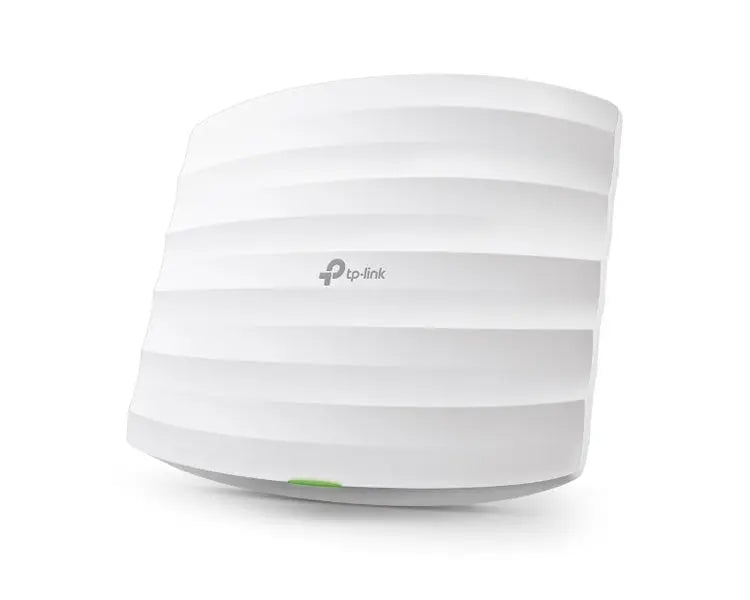

TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP110)
![TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP110)]()
![TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP110)]()
TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP110)
Available:In Stock
£29.28
TP-Link 300Mbps Wireless N Ceiling Mount Access Point (EAP110)
The TP-Link EAP110 is a business class ceiling mount access point. The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
TP-Link EAP110 Key Features
- Cloud centralised management and Omada app for ultra convenience and easy management
- Supports passive PoE for convenient installation up to 100meters
- Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Multi-SSID divides multiple wireless networks for different users
- Enterprise class Wi-Fi security help to decrease network security threats
- Supports management vlan for an enhanced network management
TP-Link EAP110 - Technical Specifications
Hardware Features
- Interface: Fast Ethernet (RJ-45) Port *1（Support Passive PoE
- Button: Reset
- Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: 2.8 W
- Dimensions: 7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
- Antenna Type: Internal 2* 4dBi Omni
- Mounting: Ceiling /Wall Mounting (Kits included)
Wireless Features
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4-2.4835GHz
- Signal Rate:
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic) - Reception Sensitivity:
- 300M: -71dBm@10% PER
- 150M: -75dBm@10% PER
- 54M: -78dBm@10% PER
- 11M: -93dBm@8% PER
- 6M: -92dBm@10% PER
- 1M: -96dBm@8% PER - Wireless Functions:
- Multiple SSIDs (Up to 8 SSIDs)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client - Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK - Transmission Power:
- CE:<19 dBm(EIRP)
- FCC:<21 dBm
Management
- Omada App: Yes
- Centralised Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller - Omada Controller Software: Yes
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- Telnet: Yes
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- Management VLAN: Yes
Other
- Certification: CE, FCC, RoHS
- Package Contents:
- 300Mbps Wireless N Ceiling Mount Access Point EAP110
- Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide - System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
