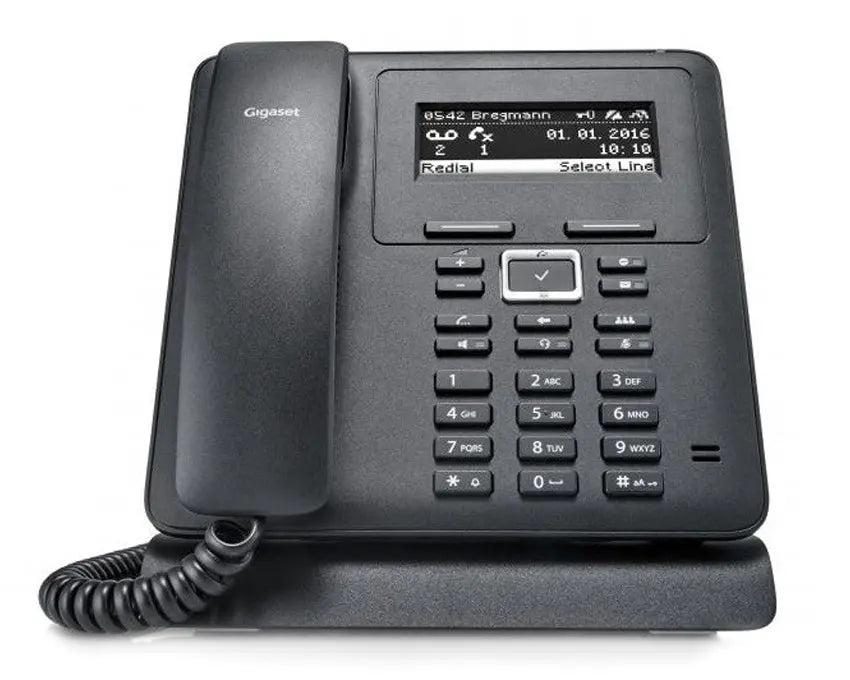

Gigaset Pro Maxwell Basic Desktop VoIP Phone
Gigaset Pro Maxwell Basic Desktop VoIP Phone
The Gigaset Maxwell Basic is an IP phone that is an excellent choice for office professionals who require a high quality/ feature rich VoIP phone. Featuring outstanding user interface on LCD display, the Maxwell Basic will give users an excellent experience, aiding comfort and productivity.
Gigaset Maxwell Basic Key Features
- Outstanding user interface on LCD display
- 5-way navigation key for easy operation
- Up to 4 SIP accounts
- Multiple ringtones, selectable per line (internal, external, group, door)
- Exceptional HD voice and sound
- Professional zero-touch auto-provisioning setup
- Gigabit Ethernet (10/100/1000) with 2-port switch
- Integrated Power over Ethernet
- Internal directory with 100 entries
- Call waiting / Call active indication
Handsfree flexibility
Having your hands free during a call is key in our business life today. Maxwell Basic fulfils this need in many ways. Maxwell Basic supports HD audio in handsfree and headset.
Loudspeaker audio
Having your hands free during a call is key in our business life today. Maxwell Basic fulfils this need in many ways. Both support loudspeaker audio in handsfree mode and handset.
Movable foot and wall mount
Every user needs to customise their phone in a different way. On every location there are situations with overhead lightning, shortage of space on the desk, longer distance to the phone. Therefore Maxwell Basic supports a movable foot. The foot has three different positions from vertical, to horizontal under a 120-140-degree angle. Without the foot, Maxwell Basic can be mounted on the wall.
Intuitive operation
The Maxwell Basic is equipped with a black and white display and navigation key to guide the user to the desired settings. The screen projects the information in high contrast, which helps you to read the screen in a wide angle behind the desk. You will clearly see who‘s calling.
Connectivity
Gigaset Maxwell Basic Technical Specification
Equipped with
- Monographic Display, illuminated
- Resolution: 128 x 48 pixels
- Full keypad (0-9, *, #)
- 10 function keys for quick handling and status indication
- Gigabit-Ethernet 2-port switch (10/100/1000)
LAN (PoE) - Network/Gateway/Switch
LAN (PC) - Network/Computer - RJ9 (2x)
Corded Handset
Corded Headset - PoE: IEEE 802.3af, class 2
Audio Features
- Headset connection via standard RJ-9 jack Wideband HD sound in acc. with TIA/EIA-920 HDSP™ , G.722
- Full-duplex speakerphone in brilliant sound quality
- Adjustable volume: speakerphone, corded handset and headset
- Codecs G.711 u/a, G.722, G.726-32, iLBC
Advanced Features
- Xml phonebook search and import, help users quickly find number and one key to call
- Enterprise phonebook
- LDAP phonebook
- Fuzzy search
- Customizable home screen
- Compatible with the mainstream IP PBX, as: Broadsoft/Avaya/Asterisk
- Intercom, paging
- BLF/BLA
- Intercom, Paging
- Dial plan, call immediately
Audio Features
- Wideband encoding: G.722
- Narrow band encoding: G. 711.μ/A, G723.1, G.729AB
- Support VAD, CNG, AEC, PLC, AJB, AGC, such as audio processing ribbon coding
- Full duplex speaker, with automatic echo elimination (AEC)
Directory and call management
- Address book with 100 entries on internal memory
- Quick search: characters or full text
- XML directories
- LDAP support (network-based corporate phonebook)
- XML/LDAP auto-lookup
- Pre-dialling with editing
- 3-way conferencing (local)
- 2 lines in parallel
- Display of call duration, name and number
- Call waiting, forward, call hold, swap, conference (attended and ad hoc), transfer (un-/attended)
Telephony / PBX
- 4 VoIP accounts
- Network AM
- Conference calls (up to 3-way)
- Call transfer: unattended, attended
- Call hold
- Call reject
- Call swap
- Call resume
- Call back
- CLIR
- Call waiting
- Manual call deflection
- Call forwarding: CFU, CFNR, CFB
- Anonymous call blocking
- Call log
- DND
- Call back on busy
- Call record (on server)
- Zero-touch auto-provisioning
- Automatic firmware updates
- XML directories
- LDAP
