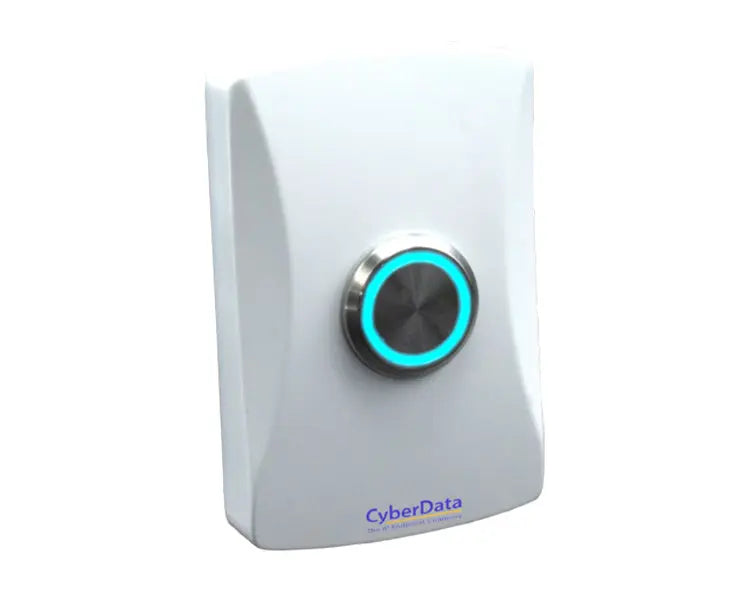

CyberData VoIP Remote Call Button - 011508
CyberData VoIP Remote Call Button - 011508
The CyberData 011508 is an optional accessory that, when connected to a CyberData Talk-Back Speaker, allows users to make a call to a predefined phone number. Additionally, when the Talk-Back Speaker is called from a remote phone and Auto-Answer is not enabled on the Speaker’s Web Interface, the LED on the Call Button will blink. A press of the Call Button will answer the incoming call. If installed in close proximity to the Speaker, the Remote Call Button can also be configured for Push to Talk on the Speaker side. The Speaker’s Web interface allows user programmable scenarios of the Button’s LED light to show call activity.
CyberData 011508 Key Features
- Operates in SIP and InformaCast Enabled environments
- Can initiate a call from or receive a call to the Talk-Back Speaker
- Enables Push to Talk half duplex audio from the Speaker side for loud environments
- User Programmable LED Light to show call activity
- Easy mounting enclosure
General
- Mounting: Standard single gang or flush mount
- LED Light Colour: Blue
- Operating Range: - Temperature: -400 C to 550 C (-400 F to 1310 F)- Humidity: 5-95%, non-condensing
- Storage Temperature: -400 C to 700 C (-400 F to 1580 F)
- Storage Altitude: Up to 15,000 ft. (4573 m)
- Dimensions: - 2.95 in. [75 mm] Length- 1.01 in. [25.7 mm] Width- 4.53 in. [115 mm] Height
- Weight: 0.25 lbs [0.11 kg]
- Boxed Weight: 0.45 lbs. [0.20 kg]
- Compliance: RoHS
- Warranty: 2 Years Limited
- Part Number: 011508
