CyberData Video Outdoor VoIP Intercom (011410)
CyberData SIP-enabled Video Outdoor Intercom (011410)
The CyberData SIP-enabled Video Outdoor Intercom is perfect for secure access settings requiring video and two-way communication. With excellent color and low light capability, the CyberData SIP-enabled Video intercom can increase the security of any VoIP installation.
CyberData 011410 Key Features
- PoE 802.3af enabled (Powered-over-Ethernet)
- SIP compliant
- Adjustable camera angle
- Full-duplex voice operation
- Network web management
- Network adjustable speaker volume and microphone sensitivity
- Network downloadable firmware
- Doubles as a paging speaker
- Dry relay contact for auxiliary control (controls external power)
- Door closure and tamper alert signal
- Optional Weather Shroud for even greater weather protection
- IP65 IP rating
- Optional Security Torx screws with driver kit
The Weather Shroud can be purchased separately for even greater weather protection. Based on one of our most popular devices, the new Video Outdoor Intercom can be installed in nursing care facilities, schools and universities, daycare facilities, retail establishments, highway tolls, needing color video and clear two way audio.
Ethernet I/F
- 10/100 Mbps
Protocol
- SIP RFC 3261 Compatible
Power Input
- PoE 802.3af compliant or
- +8 to +12VDC @ 1000mA
- Regulated Power Supply
Speaker Output
- 2 Watts Peak Power
On-Board Relay
- 1A at 30 VDC
Operating Temperature
- -10° C to 50° C (14° F to 122° F)
Audio Payload Types
- G711, A-law and μ-law
SIP Video Payload
- Baseline profile @ 320x240
Dimensions
- 5.118 inches [130 mm] Length
- 2.252 inches [57.21 mm] Width
- 5.118 inches [130 mm] Height
Video Lens Angle
- 72 degrees
Warranty
- 2 years limited
Weights
- Unit Weight 2.0 lbs. (0.90 kg)
- Boxed Weight 3.0 lbs. (1.36 kg)
Part Number
- 011410
- 011188 Weather Shroud (sold separately)
CyberData SIP-enabled Video Outdoor Intercom (011410)

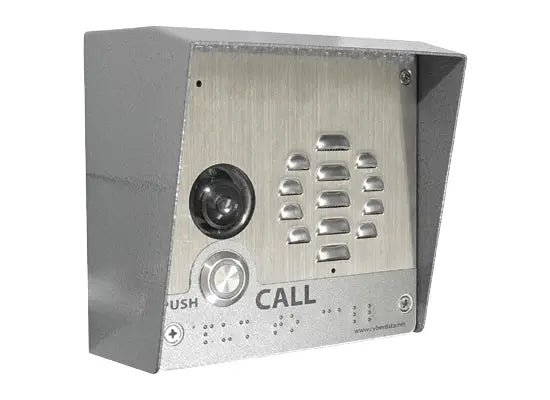

Please Note: The item does not include the pictured optional weather shroud (011188).The CyberData SIP-enabled Video Outdoor Intercom is perfect for secure access settings requiring video and two-way communication. With excellent color and low light capability, the CyberData SIP-enabled Video intercom can increase the security of any VoIP installation.
CyberData 011410 Key Features
- PoE 802.3af enabled (Powered-over-Ethernet)
- SIP compliant
- Adjustable camera angle
- Full-duplex voice operation
- Network web management
- Network adjustable speaker volume and microphone sensitivity
- Network downloadable firmware
- Doubles as a paging speaker
- Dry relay contact for auxiliary control (controls external power)
- Door closure and tamper alert signal
- Optional Weather Shroud for even greater weather protection
- IP65 IP rating
- Optional Security Torx screws with driver kit
The Weather Shroud can be purchased separately for even greater weather protection. Based on one of our most popular devices, the new Video Outdoor Intercom can be installed in nursing care facilities, schools and universities, daycare facilities, retail establishments, highway tolls, needing color video and clear two way audio.
CyberData 011410 - Technical SpecificationsEthernet I/F
- 10/100 Mbps
Protocol
- SIP RFC 3261 Compatible
Power Input
- PoE 802.3af compliant or
- +8 to +12VDC @ 1000mA
- Regulated Power Supply
Speaker Output
- 2 Watts Peak Power
On-Board Relay
- 1A at 30 VDC
Operating Temperature
- -10° C to 50° C (14° F to 122° F)
Audio Payload Types
- G711, A-law and μ-law
SIP Video Payload
- Baseline profile @ 320x240
Dimensions
- 5.118 inches [130 mm] Length
- 2.252 inches [57.21 mm] Width
- 5.118 inches [130 mm] Height
Video Lens Angle
- 72 degrees
Warranty
- 2 years limited
Weights
- Unit Weight 2.0 lbs. (0.90 kg)
- Boxed Weight 3.0 lbs. (1.36 kg)
Part Number
- 011410
- 011188 Weather Shroud (sold separately)
