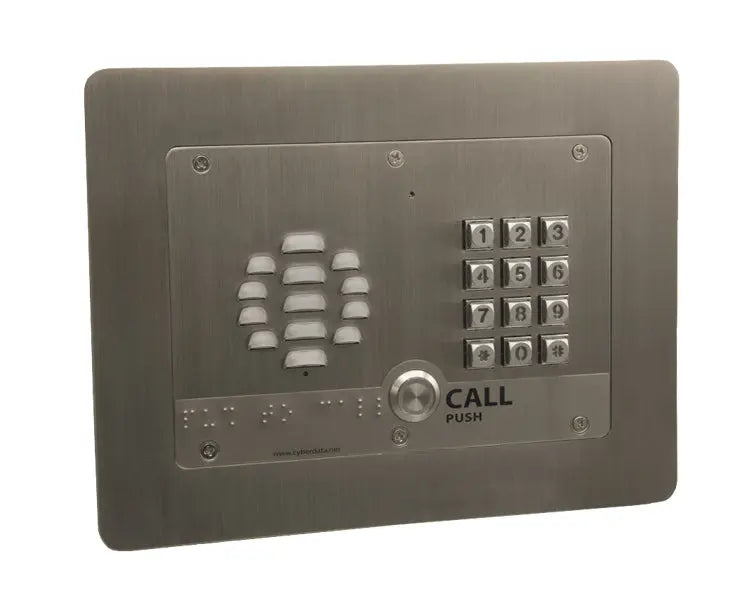

CyberData VoIP SIP-enabled IP Outdoor Intercom with Keypad - 011214
The CyberData 011214 combines the versatility of a SIP based keypad and intercom with the increased weather protection of IP65. The SIP-enabled IP Outdoor Intercom with Keypad is a two-way communication and secure access device.
Key Features include:
- PoE 802.3af enabled (Power-over-Ethernet)
- 12-key keypad with backlight
- Programmable speed dial
- SIP compliant
- Full-duplex voice operation
- Supports SRST (Survivable Remote Site Telephony) in a Cisco environment
- Enhanced acoustic echo canceler
- Optional weather shroud for even greater weather protection
- Concurrent SIP and multicast paging
- Downloadable alert, ringtones and callout messages
This device is perfect for settings such as commercial / residential facilities, schools and universities, retail establishments, warehouse and manufacturing plants, parking garages and shipyards, and so much more.
The CyberData VoIP Outdoor Intercom w/Keypad - 011214 can also be fitted with a weather shroud for greater weather protection.
Protocol
- SIP RFC 3261 Compatible
Ethernet
- I/F 10/100 Mbps
Power Input
- PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply
On-Board Relay
- 1A at 30 VDC
Operating Temperature
- -30 to 55C (-22 to 131F)
Payload Types
- G711 A-Law and u-Law
- G.722
IP Rating
- IP65
Regulatory Compliance
- FCC Class A, UL 60950
- CE
- RoHS
- IEE 802.3 Compliant
Weight / Dimensions
- 5.2" x 7.5" x 2.3" (H x W x D)
- 2.8 lbs. (1.27 kg) / 4.0 lbs. (1.81 kg). Weather Shroud is 1.2 lbs. (0.54 kg)
