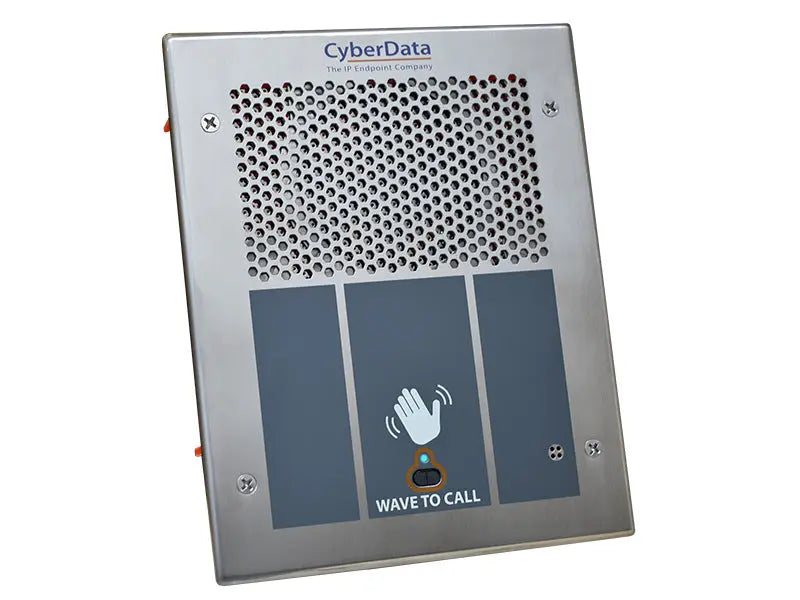

CyberData SIP Hand Wave Indoor Intercom (011530)
CyberData SIP Hand Wave Indoor Intercom (011530)
The SIP Hand Wave Indoor Intercom is a gesture-activated device that provides secure access control and touch-free two-way communication for your VoIP phone system. This device is ideal for high-traffic areas such as medical facilities, commercial/residential facilities, schools and universities, retail businesses, warehouses, and manufacturing plants because it is activated by a hand wave.
CyberData's SIP-enabled VoIP products are compatible with the vast majority of VoIP systems including SBCs, Gateways and phone systems both on-premise or cloud based.
Key Features include:
- Full duplex audio with enhanced acoustic echo cancelling
- Simultaneous SIP and multicast
- Supports user-uploadable ring and alert tones
- Loud/Night Ringer function - second SIP extension
- Can receive pages directly from Poly phones as well as other devices that send standard multicast
- Touchless activation reduces spread of infectious diseases
- Distance for hand wave activation can be set for 2, 4, or 6 inches
- DTMF-controlled dry relay contact for auxiliary control
- Door closure and tamper alert signal
- Network volume control
- Supports Auxiliary Strobe Kit for visual notification
- Easy-to-clean stainless steel faceplate
- Flush mounting offers a clean streamlined installation
- TLS 1.2 and SRTP enhanced security for IP endpoints in a local or cloud-based environment
- Autoprovisioning via HTTP, HTTPS, or TFTP
- HTTPS or HTTP web based configuration. HTTPS is enabled by default.
- Configurable event generation for device health and status monitoring
- 802.11q VLAN tagging
- Web-based upgradeable firmware
- Support for Cisco SRST resiliency
The CyberData SIP Hand Wave Intercom reduces risk of infections and diseases in any work environment with the "no touch" feature. With a simple wave of a hand it prevents contact between person to person. You can adjust the sensor distance to 2, 4 or 6 inches.
This SIP Door Intercom is versatile for any deployment. Easily install in laboratories, medical facilities, residential buildings, retail establishments, schools, universities, warehouses and more.
General
- Ethernet I/F: 10/100 Mbps
- Protocol: SIP RFC 3261 Compatible
- Power Input: PoE 802.3af compliant or +8 to +12VDC @ 1000mA regulated power supply (not included)
- Speaker Output: 802.3af - SPL 85dB @ 1 meter
- On-Board Relay: 1A @ 30 VDC
- Payload Types: G.711 a-law, G.711 µ-law, G.722, and G.729
- Network Security: TLS 1.2, SRTP, HTTPS
- Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
- Humidity: 5-95%, non-condensing
- Storage Temperature: -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
- Storage Altitude: Up to 15,000 ft. (4573 m)
- Dimensions*: Length: 5.827 inches [148 mm]
- Width: 2.319 inches [59 mm]
- Height: 7.205 inches [183 mm]
- Weight: 1.0 lbs. [0.45 kg]
- Boxed Weight: 2.2 lbs. [1.0 kg]
- Compliance CE: EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive EN 62368-1; RoHS Compliant; FCC Part 15 Class A;
- Industry Canada ICES-3 Class A; IEEE 802.3 Compliant; TAA Compliant
- Warranty: 2 Years Limited
- Part Number: 011530
