Tuneable Dual UHF Beltpack Microphone System
Tuneable Dual UHF Beltpack Microphone System

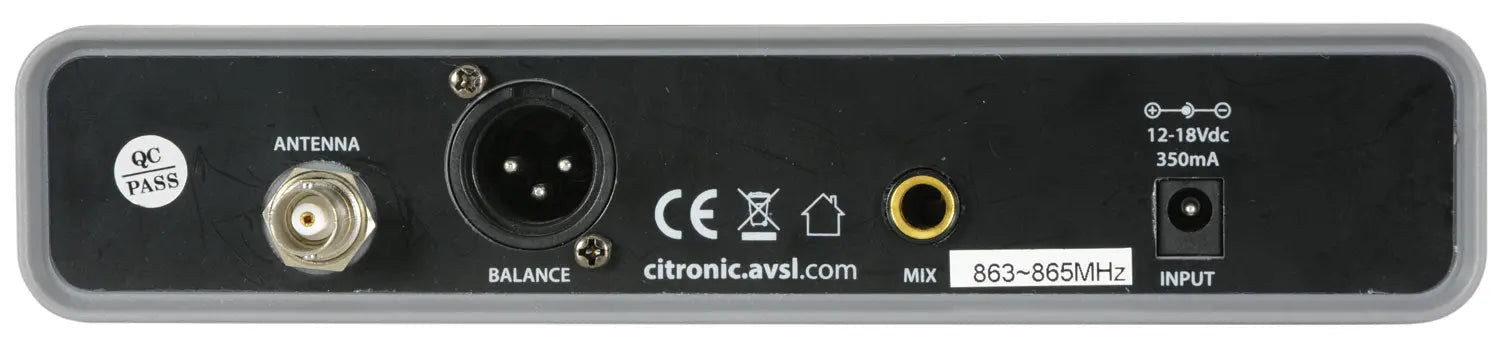

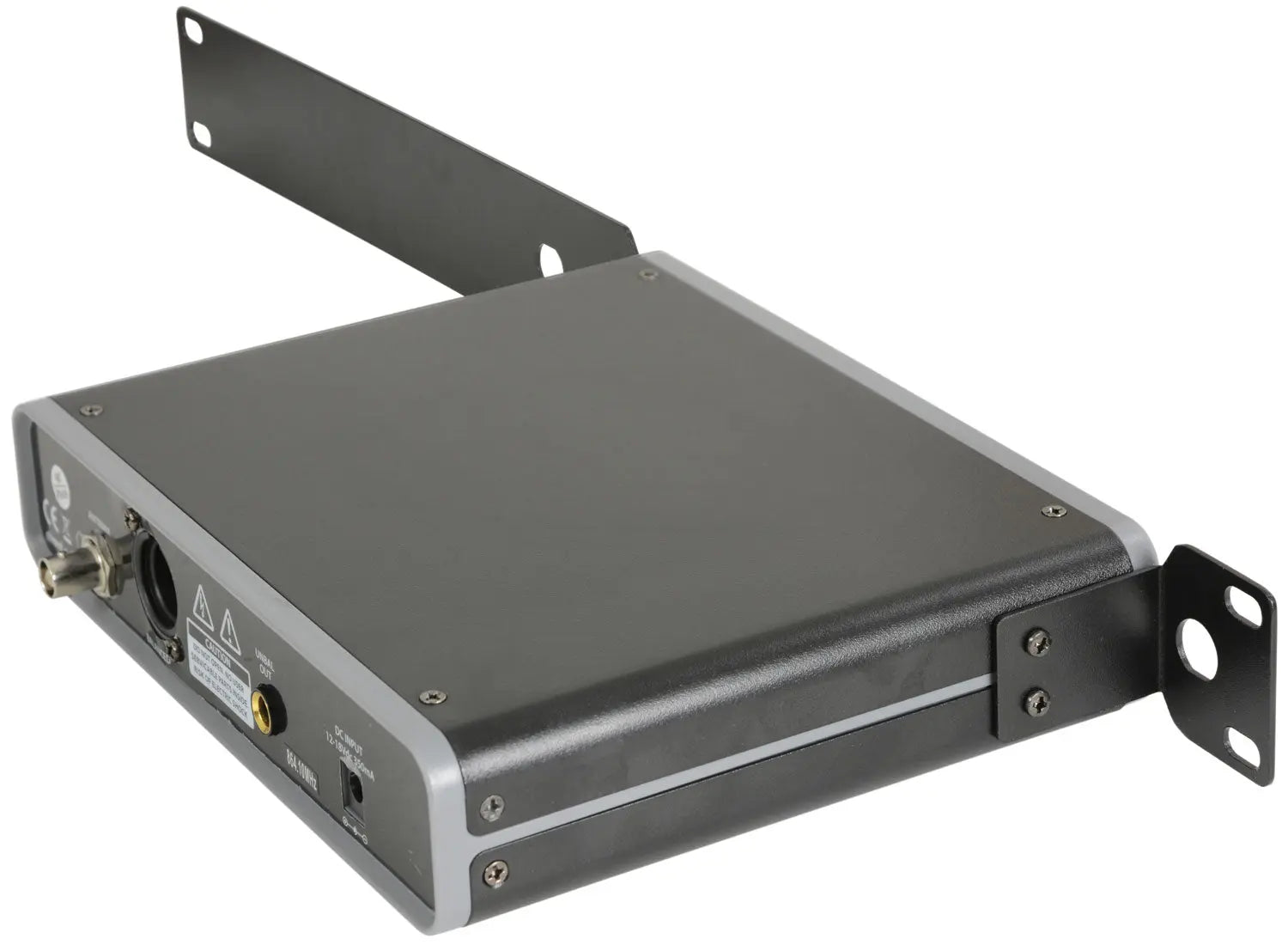

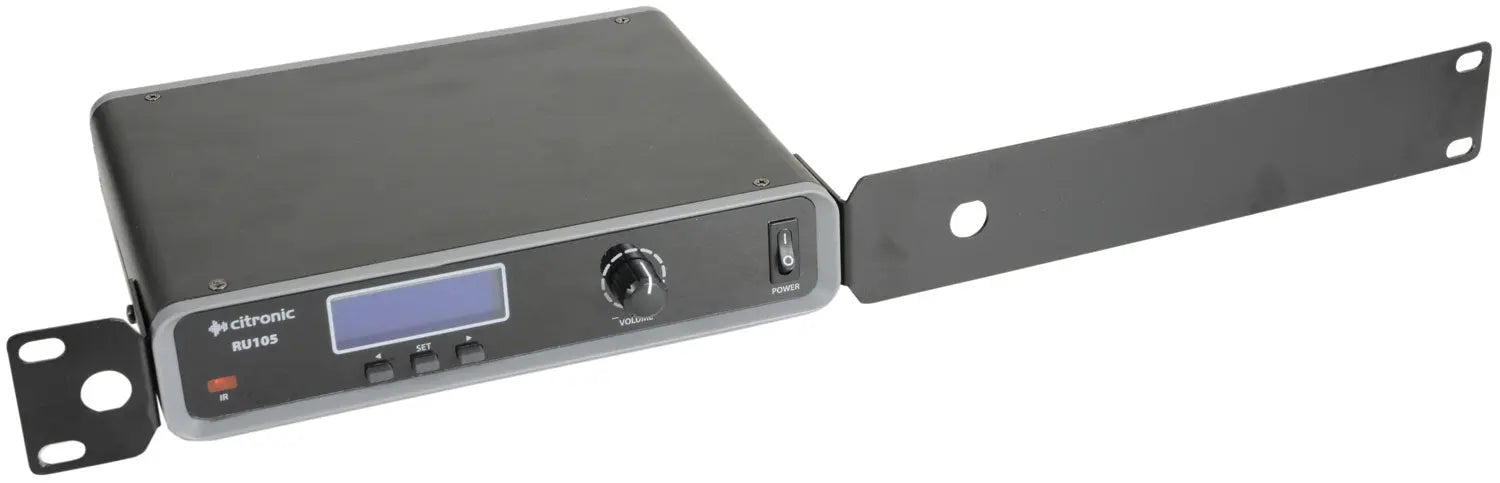

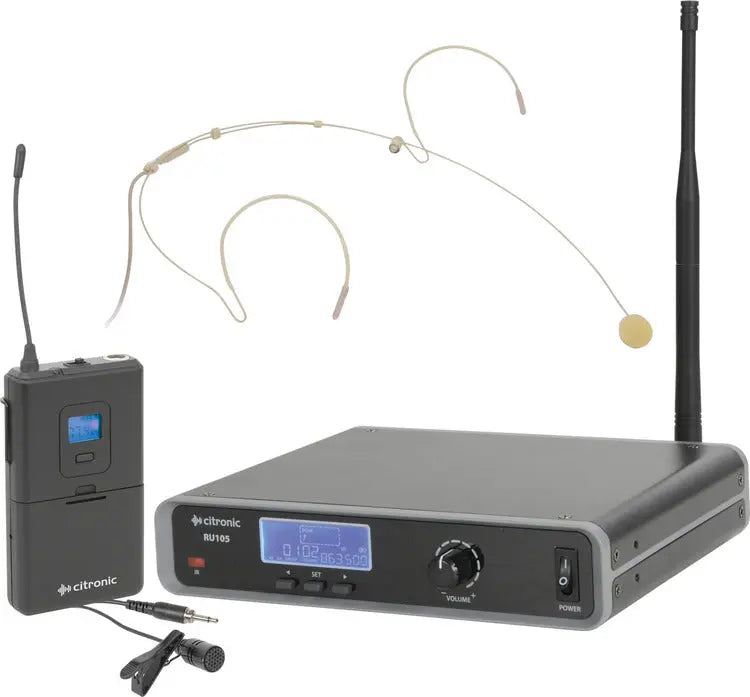

Single channel PLL tuneable UHF wireless system with beltpack transmitter and a choice of neckband microphones or lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 4 RU105 systems can be operated together on the EU licence-free band.
- PLL tunable with 81 UHF frequencies
- Licence free operation in UK & EU
- Pilot tone & mute circuit for stable signal
- Rack-mounting accessories included
- Supplied with mains adaptor and 2 x AA batteries
- Power supply12-18Vdc, 350mA (mains adaptor included)
- Carrier frequency863 - 865MHz (81 selectable frequencies)
- Range60m
- Batteries2 x AA (for transmitter - included)
- Signal to noise ratio>105dB
- THD<0.5% @ 1KHz
- Frequency response50Hz-18KHz ±1 dB
- Image rejection>85dB
- Output impedance2.2k Ohms
- Output level400mV (balanced), 200mV (unbalanced)
- Dimensions : receiver44 x 198 x 190mm
- Weight : receiver710g
- Dimensions : transmitter110 x 67 x 24mm
- Weight : transmitter75g (no battery)
Trade Information
- SKU171.973UK
- Barcode EAN5015972178522
- Tariff code8518100090
- Country of originChina (CN)
- Packaging typeBox Label
- Package dims75 x 340 x 405mm
- Package quantity1 unit
- Nett weight2.0000kg
- Gross weight2.0000kg
- Carton dims380 x 420 x 710mm
- Carton quantity10 units
- Carton weight20.00kg
