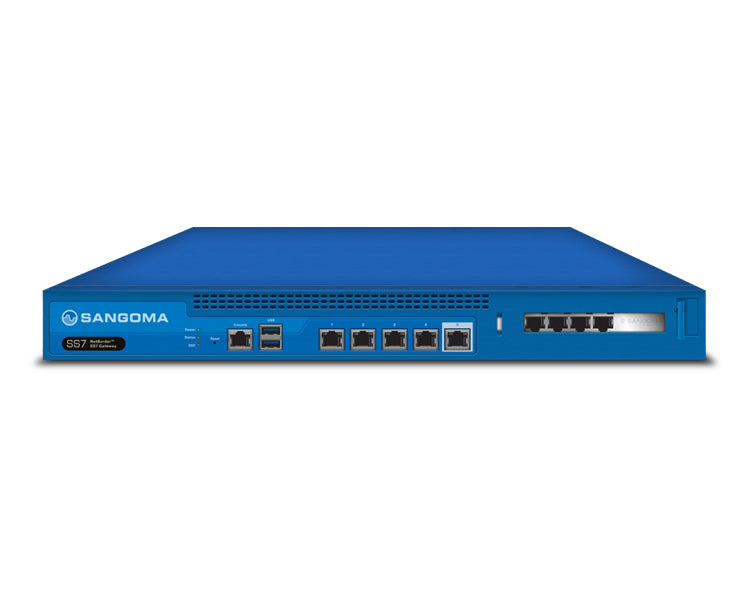

Sangoma Netborder SS7 VoIP Gateway Appliance
![Sangoma Netborder SS7 VoIP Gateway Appliance]()
![Sangoma Netborder SS7 VoIP Gateway Appliance]()
Sangoma Netborder SS7 VoIP Gateway Appliance
Available:In Stock
- Category:Best selling products,New products,Sangoma SS7 Appliance Series,Sangoma SS7 Flex Gateways,Sangoma Vega Accessories
£9,165.96
Sangoma Netborder SS7 VoIP Gateway Appliance
The Sangoma NetBorder SS7 VoIP Gateway is a feature-rich, cost-effective solution that allows Telecom service providers to introduce VoIP in their networks with transcoding capabilities. The solution supports up to 64 E1/T1s per appliance. For installations up to 256 E1/T1s or for STM-1/OC-3, distribution across multiple servers using the signalling relay feature provide maximum flexibility to support growth.
Sangoma Netborder SS7 Key Features
- All-in-one turnkey solution
- SS7 ISUP (including several national variants)
- Up to 16 SS7 Signalling links
- SIP RFC3261
- H.248 (Megaco)
- SIGTRAN M2UA
- H.323
- Supports a wide range of VoIP and wireless codecs
G.711, G.723.1, G.726, iLBC, G.729AB, GSM, G.722, AMR, G.722.1
Sangoma Netborder SS7 - Technical Specifications
PSTN Protocols
- SS7-ISUP
ITU, ANSI, Bellcore, UK, China, India, France, and Russian variants - Up to 16 A or F signalling links
- Up to 16 Originating Point Codes
- Up to 16 Destination Point Codes
- Up to 16 Linksets
- ISUP relay for larger configurations
PSTN Interfaces
- Up to 64 E1/T1 (1820 ports) per server, available in these configurations:
4 E1/T1 in 1U appliance
8 E1/T1 in 1U appliance
16 E1/T1 in 2U appliance
32 E1/T1 in 2U appliance
64 E1/T1 in 2U appliance - Extend capacity over 1820 ports and single server via ISUP relay feature
- STM-1/OC-3
- RJ-48 Connectors
VoIP Protocols
- SIP V2/RFC3261
- SIGTRAN M2UA RFC 3331
- SCTP RFC 2960
- Megaco/H248
- H.323
Network Interfaces
- 1U/2U Appliances
2 RJ-45 Ethernet ports
4 USB ports
Video:
- 1 DVI output port
Call Routing
- Configurable and extendable XML-based dial plan and routing rules
AC Power
- 250W universal for 1U solution
- 350W universal for 2U solution
- DC 400W -48V for 2U (Special Order)
Dimensions
- 1U : 480.4(W) x 474(D) x 44(H) mm;
19”(W) x 18.7”(D) x 1.7”(H) - 2U: 482(W) x 441.6(D) x 88.4(H) mm;
19”(W) x 17.4”(D) x 3.5”(H)
Media Processing
- Transcoding:
- Wide range of codecs support via Sangoma transcoding hardware (D100/D150/D500):
G.711
G.723.1
G.726
iLBC
G.729AB
GSM
G.722
AMR
G.722.1 - T.38 Fax Relay
Echo Cancellation
- G.168-2002 with 128ms tail
DTMF Detection and Generation
- RFC2833 Tone relay
- In-band
- DTMF detection and generation
Management and Configuration
- Web GUI
- Command line interface
- Call detail records in XML format
- Detailed logs with configurable file size & auto-rotation
- SNMP
- Radius
Warranty
- Standard 12-month warranty is included. Additional warranty services available, contact your Sales representative for more information.
Sangoma Netborder SS7 VoIP Gateway Appliance
The Sangoma NetBorder SS7 VoIP Gateway is a feature-rich, cost-effective solution that allows Telecom service providers to introduce VoIP in their networks with transcoding capabilities. The solution supports up to 64 E1/T1s per appliance. For installations up to 256 E1/T1s or for STM-1/OC-3, distribution across multiple servers using the signalling relay feature provide maximum flexibility to support growth.
Sangoma Netborder SS7 Key Features
- All-in-one turnkey solution
- SS7 ISUP (including several national variants)
- Up to 16 SS7 Signalling links
- SIP RFC3261
- H.248 (Megaco)
- SIGTRAN M2UA
- H.323
- Supports a wide range of VoIP and wireless codecs
G.711, G.723.1, G.726, iLBC, G.729AB, GSM, G.722, AMR, G.722.1
PSTN Protocols
- SS7-ISUP
ITU, ANSI, Bellcore, UK, China, India, France, and Russian variants - Up to 16 A or F signalling links
- Up to 16 Originating Point Codes
- Up to 16 Destination Point Codes
- Up to 16 Linksets
- ISUP relay for larger configurations
PSTN Interfaces
- Up to 64 E1/T1 (1820 ports) per server, available in these configurations:
4 E1/T1 in 1U appliance
8 E1/T1 in 1U appliance
16 E1/T1 in 2U appliance
32 E1/T1 in 2U appliance
64 E1/T1 in 2U appliance - Extend capacity over 1820 ports and single server via ISUP relay feature
- STM-1/OC-3
- RJ-48 Connectors
VoIP Protocols
- SIP V2/RFC3261
- SIGTRAN M2UA RFC 3331
- SCTP RFC 2960
- Megaco/H248
- H.323
Network Interfaces
- 1U/2U Appliances
2 RJ-45 Ethernet ports
4 USB ports
Video:
- 1 DVI output port
Call Routing
- Configurable and extendable XML-based dial plan and routing rules
AC Power
- 250W universal for 1U solution
- 350W universal for 2U solution
- DC 400W -48V for 2U (Special Order)
Dimensions
- 1U : 480.4(W) x 474(D) x 44(H) mm;
19”(W) x 18.7”(D) x 1.7”(H) - 2U: 482(W) x 441.6(D) x 88.4(H) mm;
19”(W) x 17.4”(D) x 3.5”(H)
Media Processing
- Transcoding:
- Wide range of codecs support via Sangoma transcoding hardware (D100/D150/D500):
G.711
G.723.1
G.726
iLBC
G.729AB
GSM
G.722
AMR
G.722.1 - T.38 Fax Relay
Echo Cancellation
- G.168-2002 with 128ms tail
DTMF Detection and Generation
- RFC2833 Tone relay
- In-band
- DTMF detection and generation
Management and Configuration
- Web GUI
- Command line interface
- Call detail records in XML format
- Detailed logs with configurable file size & auto-rotation
- SNMP
- Radius
Warranty
- Standard 12-month warranty is included. Additional warranty services available, contact your Sales representative for more information.
