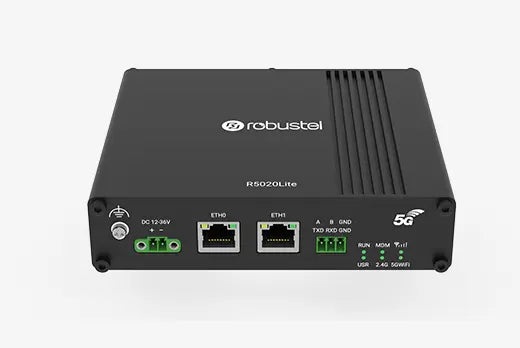

Robustel R5020 Lite 5G Industrial Cellular Router (R5020-5G-LITE)
Robustel R5020 Lite 5G Industrial Cellular Router (R5020-5G-LITE)
The Robustel R5020 Lite is a 5G capable router supporting global 5G, 4G and 3G bands. The R5020 Lite leverages Robustel's tried and tested high performance CPU platform, along with RobustOS 5 – an Operating System developed in-house by Robustel that has passed extensive 3rd party penetration testing.
Robustel R5020 Key Features:
- Low cost industrial 5G Router
- Global 5G/4G/3G cellular connections
- Cutting-edge 5G 3GPP Release 16 cellular interface
- Supports Ethernet, Wi-Fi and 5G/4G internet with auto-failover
- 1 x RS232/RS485 (software configurable) ports for connection to industrial/legacy devices
- Fully programmable Operating System with well documented SDK
- Multiple VPN options are available, including DMVPN, IPsec, L2TP + more…
- Free cloud management platform – RCMS
- Robust metal enclosure with small footprint – DIN-rail + wall mount options
Broadband Failover – The R5020 Lite can be configured to use Ethernet or Wi-Fi as primary internet and failover to 5G/4G in the event of an outage. This can help provide resilience to shops and small offices at a reasonable cost and provide sufficient bandwidth for many users. IPsec, DMVPN, GRE+ many more protocols can be used for connections into core networks.
Primary Broadband – Cellular network operators can now provide unlimited 5G tariffs at very reasonable prices. For many, a chance to cut the cables and use a wireless internet connection can be technically or commercially favorable.
SD-WAN – whilst many appliances have cellular options built-in, the R5020 Lite can offer a very low-cost way to add a 5G backup route & by virtue of being able to located externally to the appliance, is more likely to get a good 5G signal!
RCMS is Robustel’s free router monitoring service that is fully compatible with the R5020 Lite. It is an extremely polished piece of software hosted on MS Azure & available as a privately hosted instance.
Discover more reasons why the Robustel R5020-Lite may be ideal for your application in our blog post here.
Robustel R5020 Lite - Technical Specifications
Cellular Interface

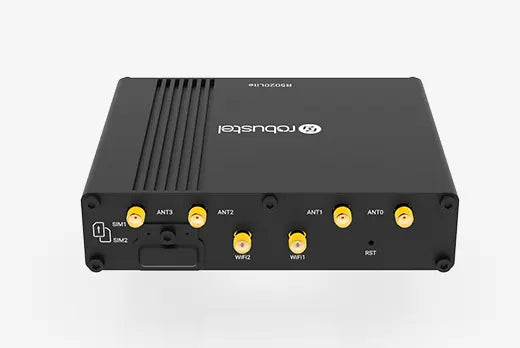

- Number of antennas 4 (ANT0 + ANT1 + ANT2 + ANT3)
- Connector SMA-KSIM 2 x Mini
- SIM (2FF)
Ethernet Interface
- Number of ports 2 x 10/100/1000 Mbps,
2 LAN by default, can be configured as
1 WAN + 1 LAN - Isolation protection 1 KV
WiFi Interface
- Number of antennas 2 (WiFi1 + WiFi2)
- Connector RP-SMA-K
- Standards 802.11b/g/n/ac 2*2 MIMO, supports AP and Client modes
- Frequency bands 2.412 – 2.472 GHz (2.4 GHz ISM band)
5.15 – 5.825 GHz (5 GHz ISM band) - Security WPA, WPA2, WEP, WPA3*
- Encryption AES, TKIP, WEP64
- Data speed 5G: Up to 867Mbps2.4G: Up to 300Mbps
Serial Interface
- Number of ports 1 x RS232 or 1 x RS485 (Software configurable)
- Connector 1 x 3-pin 3.5 mm female socket
- ESD protection ±8 KV air discharge, ±6 KV contact discharge
- Baud rate 300 bps ~ 115200 bps
- Signal definition RS232: TXD, RXD, GND
RS485: Data+ (A), Data- (B), Ground (GND)
Others
- Reset button 1 x RST
- LED indicators 1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x Wi-Fi 2.4G，1 x Wi-Fi 5G
- Built-in Watchdog
Software (Basic features of RobustOS)
- Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN,SSH2, DDNS, etc.
- VPN tunnel IPsec, OpenVPN, GRE
- Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
- Management Web, CLI, SMS
- Serial port Transparent, TCP Client/Server, UDP, Modbus RTU to TCP
- Others Data Guard, etc.
SDK
- Supported programming languages C, C++
- Flash available for SDK 5MB
- RAM available for SDK 128MB
App Center (Available Apps for RobustOS)
- Apps* L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route,Data Guard, Captive Portal, WLAN Multi AP
Power Supply and Consumption
- Connector 2-pin 3.5 mm female socket with lock
- Input voltage 12 ~ 36 VDC
- Power consumption Idle: 370 mA@12 VData link: 1.7 A (peak) @12 V
Physical Characteristics
- Ingress protection IP30
- Housing & Weight Aluminum, 475 g
- Dimension 136 x 115 x 32 mm
- Installations DIN rail mounting, desktop or wall mounting
- Operating Temperature -20 ~ +55°C (Normal temperature)
-25 ~ +70°C (Extended temperature) - Storage Temperature -40 to +85 °C
- Relative Humidity 5 to 95% RH
Approvals
- Environmental RoHS2.0
- *in progress
