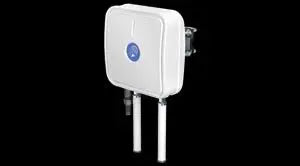

QuWireless QuMax for RUTX11 Integrated LTE Directional, WiFi Dual Band, GPS and Bluetooth Antennas All In One (AX11M)
QuWireless QuMax for RUTX11 Integrated LTE Directional, WiFi Dual Band, GPS and Bluetooth Antennas All In One (AX11M)
The QuWireless AX11M offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTx11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.
QuWireless AX11M Key Features
- All antennas and router integrated into one enclosure
- Outdoor use - works in any weather condition IP67
- Passive PoE support
- Maximise signal
- Easy to install
- Dual SIM - significantly reduce roaming costs
.jpg "QuSpot Diagram")
LTE Specification
- Frequency:
- 0.694-0.96 GHz
- 1.7 - 2.2 GHz - 2.2
- 2.7 GHz - Gain:
- 2 dBi
- 2 dBi
- 4 dBi - VSWR:
- <1.70, max <2.00
- <1.60, max <2.00
- <1.60, max <2.00 - Beamwidth:
- 360°/35° +/- 5°
- 360°/35° +/- 5°
- 360°/35° +/- 5° - Polarisation: Vertical
- Impedance: 50 Ω
WiFi Specification
- Frequency:
- 2.40-2.50 GHz
- 4.70 - 6.00 GHz - Gain:
- 6 dBi
- 7 dBi - VSWR:
- <1.70, max <2.00
- <1.70, max <2.00 - Beamwidth:
- 360°/25° +/- 5°
- 360°/25° +/- 5° - Polarisation: Vertical
- Impedance: 50 Ω
Mechanical Specification
- Materials: ABS, aluminum, PTFE
- Ingress Protection: IP67
- Dimensions:
- 160 x 160 x 240 mm
- 6.3 x 6.3 x 9.45 inch - Weight:
- 1.5 kg
- 3.31 lbs - Operating Temperature:
- From -40°C to 75°C
- From -40°F to 167°F
