UA Series Compact 100V Mixer-Amplifiers
UA Series Compact 100V Mixer-Amplifiers

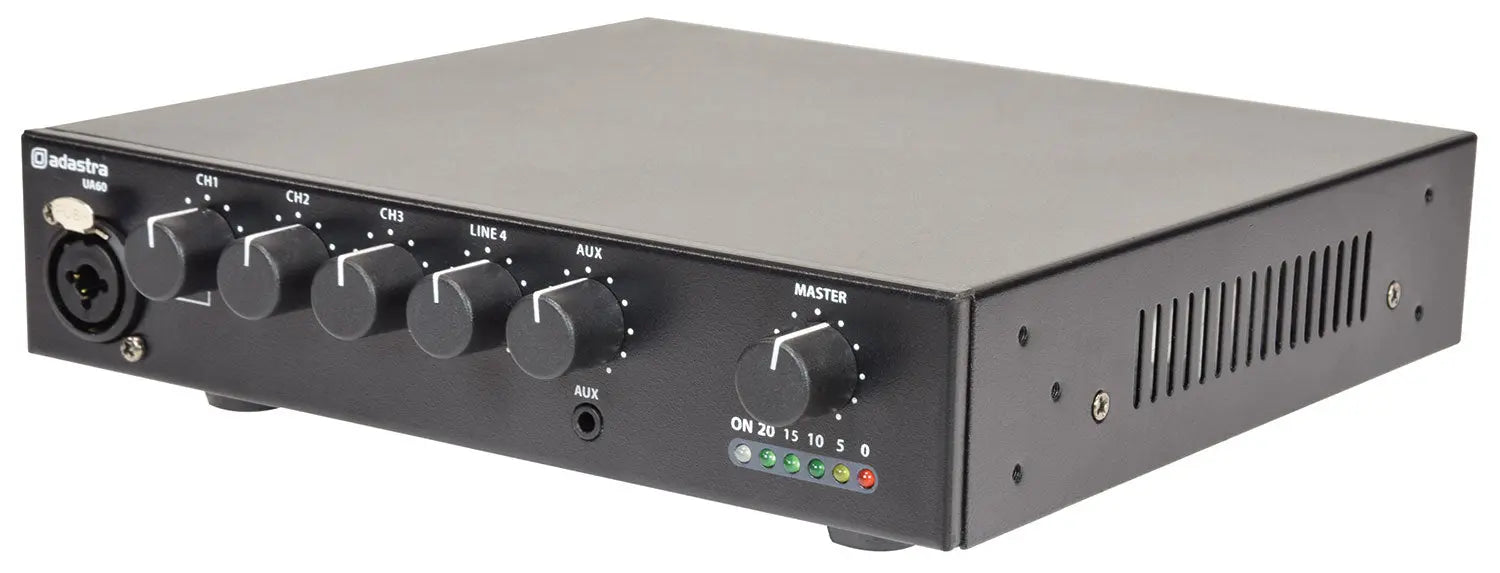

100V mixer-amplifiers with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.
- Supplied with hardware for rack-mounting 2 units
- 5 input channels
- 24V fire alarm mute contacts
- 100V line or 8 Ohms operation
- Switchable +20V phantom power CH1
- Output power : rms90W
- Dimensions300 x 210 x 44mm
- Weight2.99kg
- Power supply170-264Vac, 50Hz (IEC)
- Amplifier : constructionClass D + transformer output
- InputsMic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
- Phantom power+20V CH1 (XLR or rear terminals)
- Line output2 x RCA (mono)
- Speaker outputEuroblock terminals: 100V / 8 Ohms / Com
- Mute24V relay contacts
- THD<0.4% @ 1kHz
- Input impedance1k Ohms (mic/line)
- Input sensitivity-10dB (line), -45dB (mic)
- SNR80dB (line), 75dB (mic)
- Frequency response100Hz - 18kHz
Trade Information
- SKU953.189UK
- Barcode EAN5015972216576
- Tariff code8518500090
- Country of originChina (CN)
- Packaging typeBox Label
- Package dims84 x 326 x 420mm
- Package quantity1 unit
- Nett weight2.9880kg
- Gross weight4.1830kg
- Carton dims218 x 341 x 435mm
- Carton quantity2 units
- Carton weight9.00kg
