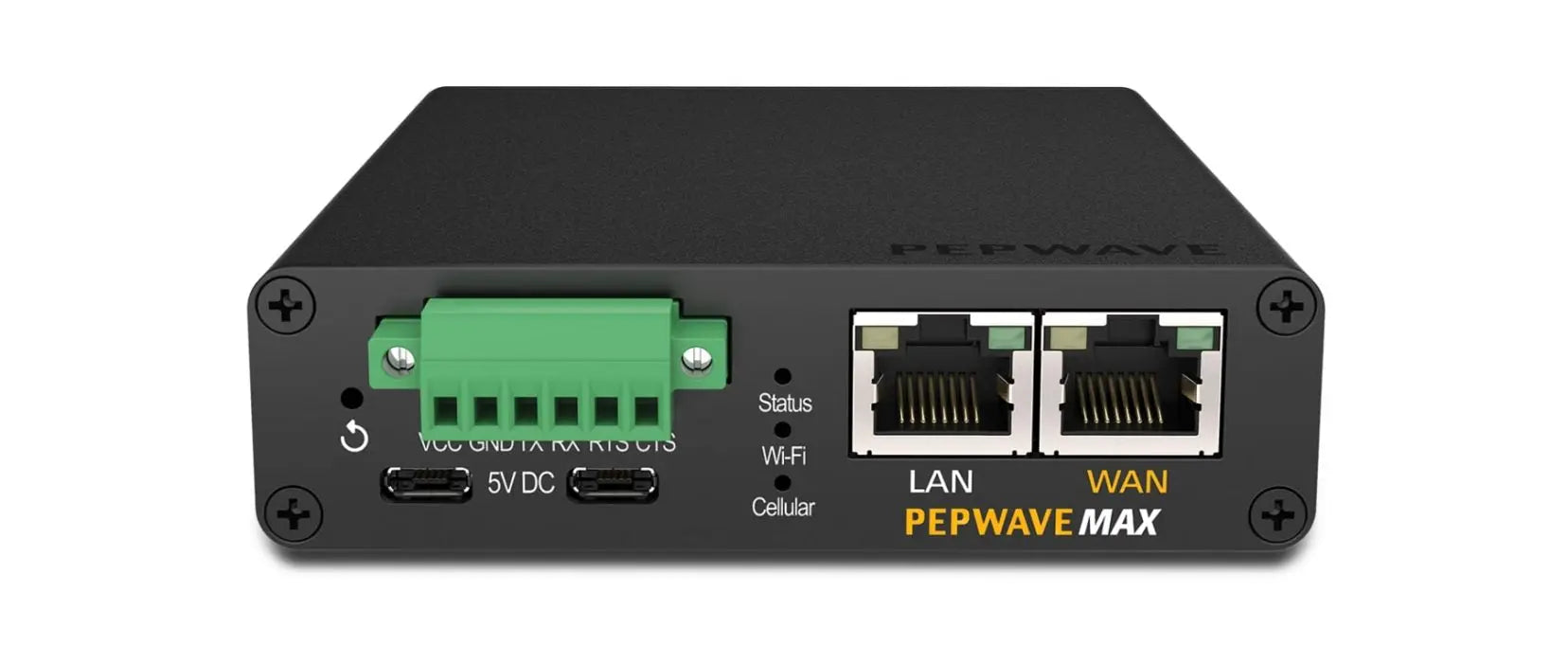

Peplink Pepwave MAX BR1 Industrial-Grade M2M 4G LTE Router
![Peplink Pepwave MAX BR1 Industrial-Grade M2M 4G LTE Router]()
![Peplink Pepwave MAX BR1 Industrial-Grade M2M 4G LTE Router]()
Pepwave MAX BR1 Industrial-Grade M2M 4G LTE Router - Technical Specifications
Peplink Pepwave MAX BR1 Industrial-Grade M2M 4G LTE Router
Available:In Stock
£622.80
Pepwave MAX BR1 Industrial-Grade M2M 4G LTE Router
Please Note: Pepwave products have a lead time of 5-7 working days.
The Pepwave MAX BR1 brings wireline reliability to environments like no other solution. The MAX BR1 gives you the ultimate experience in mobile connectivity. With the ability to combine a variety of wireless services, the Pepwave MAX BR1 gives you maximum reliability through automatic link failover and scalability with multi-WAN load balancing and SpeedFusion bandwidth bonding.
Pepwave MAX BR1 4G Router Key Features
- Multiple WAN load balancing and failover
- Aggregate multiple wireless connections with
- SpeedFusion™ Bandwidth Bonding
- HD video streaming over 4G/3G
- Automatic switching to best available link
- Connect to 4G LTE, 3G, Wi-Fi, DSL, cable, and/or satellite
- Bandwidth allowance control and reporting
- Built-in embedded 4G LTE modem or embedded world-mode 3G modem
- Built-in WLAN Controller for Pepwave AP
- Captive Portal for hotspots
- Terminal block and versatile input voltage for deployment on mobile vehicles
- Built-in GPS
SpeedFusion bandwidth bonding automatically distributes traffic across your wireless links, increasing connection stability and making maximum use of all available bandwidth. It is therefore possible to scale your bandwidth as you go simply by adding extra 4G LTE, 3G, or other wireless connections at any time. The MAX switches automatically to lower priority connections when primary connections fail. This means that your connection stays fast, and you remain connected.
Pepwave MAX BR1 Industrial-Grade M2M 4G LTE Router - Technical Specifications
General
- WAN Interface: 1x 10/100M Ethernet Port
1x Embedded Cellular Modem with Redundent SIM Slots
(2 WAN) - LAN Interface: 2x 10/100M Ehternet Ports
802.11b/g/n Wi-Fi Access Point - Embedded Modem Connectivity: Verizon's 4G LTE
AT&T's 4G LTE
UMTS/WCDMA/HSPA+
EDGE/GPRS/GSM - Wi-Fi Operating System: 2412 - 2472 MHz
- Wi-Fi Transmit Power: 25dBm (FCC)
20dBm (CE) - Wi-Fi Antenna Connector: 1x RP-SMA Connector
- Cellular Antenna Connector: 2x SMA Cellular Antenna Connectors (4G LTE)
1x SMA Cellular Antenna Connector (3G)
1x SMA GPS Antenna Connecto - Power Input: Device: 10V - 30V DC
AC Adapter: AC Input 100V - 240V / DC Output 12V
Terminal Block: 10V - 30V DC - Power Consumption: 16W (max.)
- Dimensions: 5.8 x 5.0 x 1.6 inches
147 x 128 x 40 mm - Weight: 0.96 pound
435 grams - Operating Temperature: -40° - 149°F
-40° - 65°C - Humidity: 15% - 95% (non-condensing)
- Certifications: FCC, CE, RoHS
Package Contents
- 12V Power Supply
- 1x 5dBi Magnetic Wi-Fi Antenna
- 2x 2dBi Indoor 4G LTE Antennas (4G LTE)
- 1x 3dBi Indoor 3G Magnetic Antenna (3G)
Support and Warranty
- 1-Year Standard Warranty
- 1-Year Standard Support
- Unlimited 8x5 Email Support
- 90 Days Telephone Support
- 1-Year Firmware Upgrade
Pepwave MAX BR1 Industrial-Grade M2M 4G LTE Router
Please Note: Pepwave products have a lead time of 5-7 working days.The Pepwave MAX BR1 brings wireline reliability to environments like no other solution. The MAX BR1 gives you the ultimate experience in mobile connectivity. With the ability to combine a variety of wireless services, the Pepwave MAX BR1 gives you maximum reliability through automatic link failover and scalability with multi-WAN load balancing and SpeedFusion bandwidth bonding.
Pepwave MAX BR1 4G Router Key Features
- Multiple WAN load balancing and failover
- Aggregate multiple wireless connections with
- SpeedFusion™ Bandwidth Bonding
- HD video streaming over 4G/3G
- Automatic switching to best available link
- Connect to 4G LTE, 3G, Wi-Fi, DSL, cable, and/or satellite
- Bandwidth allowance control and reporting
- Built-in embedded 4G LTE modem or embedded world-mode 3G modem
- Built-in WLAN Controller for Pepwave AP
- Captive Portal for hotspots
- Terminal block and versatile input voltage for deployment on mobile vehicles
- Built-in GPS
Pepwave MAX BR1 Industrial-Grade M2M 4G LTE Router - Technical Specifications
General
- WAN Interface: 1x 10/100M Ethernet Port
1x Embedded Cellular Modem with Redundent SIM Slots
(2 WAN) - LAN Interface: 2x 10/100M Ehternet Ports
802.11b/g/n Wi-Fi Access Point - Embedded Modem Connectivity: Verizon's 4G LTE
AT&T's 4G LTE
UMTS/WCDMA/HSPA+
EDGE/GPRS/GSM - Wi-Fi Operating System: 2412 - 2472 MHz
- Wi-Fi Transmit Power: 25dBm (FCC)
20dBm (CE) - Wi-Fi Antenna Connector: 1x RP-SMA Connector
- Cellular Antenna Connector: 2x SMA Cellular Antenna Connectors (4G LTE)
1x SMA Cellular Antenna Connector (3G)
1x SMA GPS Antenna Connecto - Power Input: Device: 10V - 30V DC
AC Adapter: AC Input 100V - 240V / DC Output 12V
Terminal Block: 10V - 30V DC - Power Consumption: 16W (max.)
- Dimensions: 5.8 x 5.0 x 1.6 inches
147 x 128 x 40 mm - Weight: 0.96 pound
435 grams - Operating Temperature: -40° - 149°F
-40° - 65°C - Humidity: 15% - 95% (non-condensing)
- Certifications: FCC, CE, RoHS
Package Contents
- 12V Power Supply
- 1x 5dBi Magnetic Wi-Fi Antenna
- 2x 2dBi Indoor 4G LTE Antennas (4G LTE)
- 1x 3dBi Indoor 3G Magnetic Antenna (3G)
Support and Warranty
- 1-Year Standard Warranty
- 1-Year Standard Support
- Unlimited 8x5 Email Support
- 90 Days Telephone Support
- 1-Year Firmware Upgrade
