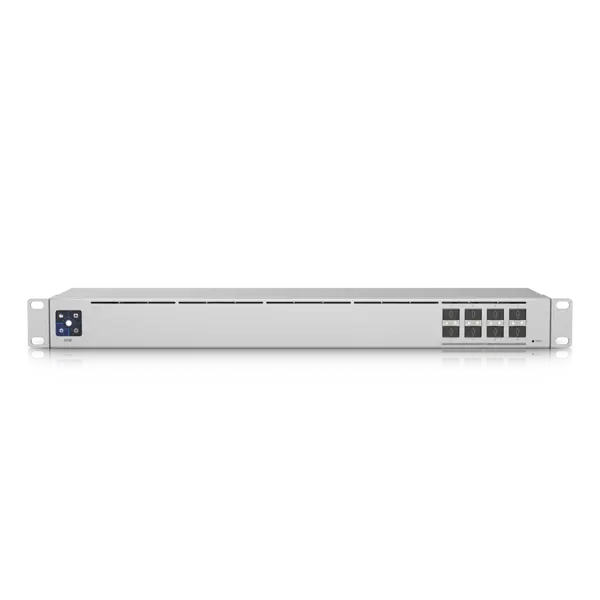

Ubiquiti UniFi Switch Aggregation (USW-Aggregation)
![Ubiquiti UniFi Switch Aggregation (USW-Aggregation)]()
![Ubiquiti UniFi Switch Aggregation (USW-Aggregation)]()
Ubiquiti UniFi Switch Aggregation (USW-Aggregation)
Available:In Stock
£243.72
Please Note: If you are looking for storage for your data equipment, please see our selection of Allrack Cabinets
Ubiquiti UniFi Switch Aggregation (USW-Aggregation)
The Ubiquiti UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
Ubiquiti UniFi Switch Aggregation Key Features
- (8) 10G SFP+ Ports
- 160 Gbps switching capacity
- 1.3" Touchscreen with AR switch management
- Fanless, 4.7" depth compact enclosure
- 1U Rackmountable (kit included)
- Managed by UniFi Network Controller (version: 5.43.13 or higher)
Ubiquiti Switch Aggregation Technical Specification
Mechanical
- Dimensions: 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72")
- Weight
- Without Mount 2.65 kg (5.84 lb)
- With Mount 2.74 kg (6.04 lb) - Enclosure Material: SGCC Steel
Hardware
- Total Non-Blocking Throughput: 80 Gbps
- Switching Capacity: 160 Gbps
- Forwarding Rate: 119.04 Mpps
- Max. Power Consumption: 30W
- Power Method: Universal AC Input: 100-240VAC, 50/60 Hz
- Power Supply: AC/DC, Internal, 36W
- Management Interface: Ethernet In-Band
- Modes: SMB Layer 2 Gigabit Ethernet Switch
- ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 - 90% Noncondensing
- Certifications: CE, FCC, IC
LED
System
- (1) Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
- SFP+: White: 10G, 1G
