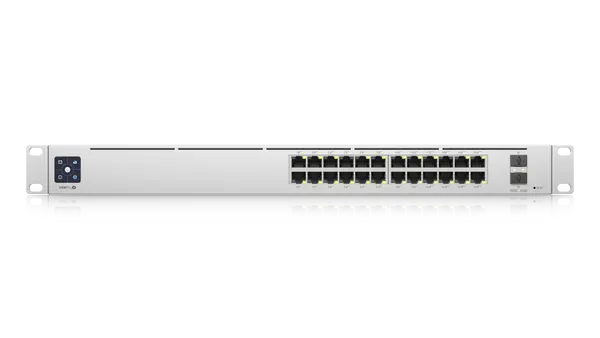

Ubiquiti UniFi 24 Port Pro Switch (USW-Pro-24)
Ubiquiti UniFi 24 Port Pro Switch (USW-Pro-24)
The Ubiquiti UniFi USW-Pro-24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Ubiquiti UniFi USW-Pro-24 Switch Key Features
- (24) Gigabit RJ45 ports
- (2) 10G SFP+ ports
- Layer 2 and Layer 3 features
- UniFi SmartPower RPS DC input
- Near-silent cooling
- 1.3" touchscreen display
- Managed by UniFi Network Controller
Product Specifications
- Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
- Weight: 3.50 kg (7.72 lb)
- Weight with brackets: 3.59 kg (7.92 lb)
- Interfaces:
- Networking: (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+ Ethernet Ports
- Management: Ethernet In-Band - Total Non-Blocking Throughput: 44 Gbps
- Switching Capacity: 88 Gbps
- Forwarding Rate: 65.472 Mpps
- Power Method:
- Universal Input: 100-240VAC,50/60 Hz
- USP RPS DC Input: 11.5VDC, 2.61A - Power Supply: AC/DC, Internal, 36W
- Voltage Range: 100 to 240VAC
- Max Power Consumption: 30W
- LEDs:
- RJ45 Data Ports: Speed/Link/Activity
- SFP+ Data Ports: Link/Activity - ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5 to 45° C (23 to 113° F)
- Operating Humidity: 10 to 90% Noncondensing
- Certifications: CE, FCC, IC
