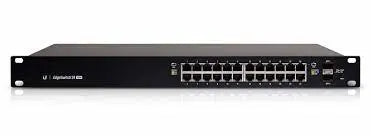

Ubiquiti EdgeSwitch 24 Port 250W Gigabit Switch (ES 24-250W)
![Ubiquiti EdgeSwitch 24 Port 250W Gigabit Switch (ES 24-250W)]()
![Ubiquiti EdgeSwitch 24 Port 250W Gigabit Switch (ES 24-250W)]()
Ubiquiti EdgeSwitch 24 Port 250W Gigabit Switch (ES 24-250W)
Available:In Stock
£359.40
Please Note: If you need a storage cabinet for this product, please select from the Available Product Options above. See All-Rack for full details.
Ubiquiti EdgeSwitch PoE+ Gigabit Switch (ES-24-250W)
The Ubiquiti EdgeSwitch ES- 24 250W is a 24-Port, fully managed, PoE+ Gigabit switch, delivering 250W intelligent switching performance for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer 2 switching features and protocols, and also provides Layer 3 routing capabilities.
Ubiquiti EdgeSwitch ES-24-250W Key Features
- Total Non-Blocking Throughput - 26 Gbps
- Gigabit RJ45 Ports - 24
- SFP Ports - 2
- Max. Power Consumption - 250W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Optical Fiber Backhaul
Ubiquiti EdgeSwitch ES-24-250W features two SFP ports, which support uplinks of up to 1 Gbps.
Convenient PoE+ Support
Ubiquiti EdgeSwitch ES-24-250W also features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Ubiquiti EdgeSwitch ES-24-250W features two SFP ports, which support uplinks of up to 1 Gbps.
Convenient PoE+ SupportUbiquiti EdgeSwitch ES-24-250W also features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Advanced UIThe comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Ubiquiti EdgeSwitch ES-24-250W - Technical Specifications
General
- Dimensions: 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
- Weight: 4.7 kg (10.4 lb)
- Total Non-Blocking Throughput: 26 Gbps
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.69 Mpps
- Max. Power Consumption:
- Includes PoE Output: 250W
- Excludes PoE Output: 30W - Power Method: 100-240VAC/50-60 Hz, Universal Input
- Power Supply: AC/DC, Internal, 250W DC
- LEDs Per Port:
- RJ45 Data Ports: PoE, Speed/Link/Activity
- SFP Data Ports: Speed/Link/Activity - Networking Interfaces:
- (24) 10/100/1000 Mbps RJ45 Ethernet Ports
- (2) 1 Gbps SFP Ethernet Ports - Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
- Certifications:
- CE
- FCC
- IC - Rackmount: Yes, 1U High
- ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Shock and Vibration: ETSI300-019-1.4 Standard
PoE Per Port
- PoE Interfaces:
- POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- 24VDC Passive PoE (Pins 4, 5+; 7, 8-) - Max. PoE+ Wattage per Port by PSE 34.2W
- Voltage Range 802.3at Mode 50–57V
- Max. Passive PoE Wattage per Port 17W
- 24V Passive PoE Voltage Range 20-27V
Please Note: If you need a storage cabinet for this product, please select from the Available Product Options above. See All-Rack for full details.
Ubiquiti EdgeSwitch ES-24-250W features two SFP ports, which support uplinks of up to 1 Gbps.
Convenient PoE+ Support
Ubiquiti EdgeSwitch ES-24-250W also features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Ubiquiti EdgeSwitch PoE+ Gigabit Switch (ES-24-250W)
The Ubiquiti EdgeSwitch ES- 24 250W is a 24-Port, fully managed, PoE+ Gigabit switch, delivering 250W intelligent switching performance for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer 2 switching features and protocols, and also provides Layer 3 routing capabilities.
Ubiquiti EdgeSwitch ES-24-250W Key Features
- Total Non-Blocking Throughput - 26 Gbps
- Gigabit RJ45 Ports - 24
- SFP Ports - 2
- Max. Power Consumption - 250W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Ubiquiti EdgeSwitch ES-24-250W features two SFP ports, which support uplinks of up to 1 Gbps.
Convenient PoE+ SupportUbiquiti EdgeSwitch ES-24-250W also features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Advanced UIThe comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
General
- Dimensions: 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
- Weight: 4.7 kg (10.4 lb)
- Total Non-Blocking Throughput: 26 Gbps
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.69 Mpps
- Max. Power Consumption:
- Includes PoE Output: 250W
- Excludes PoE Output: 30W - Power Method: 100-240VAC/50-60 Hz, Universal Input
- Power Supply: AC/DC, Internal, 250W DC
- LEDs Per Port:
- RJ45 Data Ports: PoE, Speed/Link/Activity
- SFP Data Ports: Speed/Link/Activity - Networking Interfaces:
- (24) 10/100/1000 Mbps RJ45 Ethernet Ports
- (2) 1 Gbps SFP Ethernet Ports - Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
- Certifications:
- CE
- FCC
- IC - Rackmount: Yes, 1U High
- ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Shock and Vibration: ETSI300-019-1.4 Standard
PoE Per Port
- PoE Interfaces:
- POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- 24VDC Passive PoE (Pins 4, 5+; 7, 8-) - Max. PoE+ Wattage per Port by PSE 34.2W
- Voltage Range 802.3at Mode 50–57V
- Max. Passive PoE Wattage per Port 17W
- 24V Passive PoE Voltage Range 20-27V
