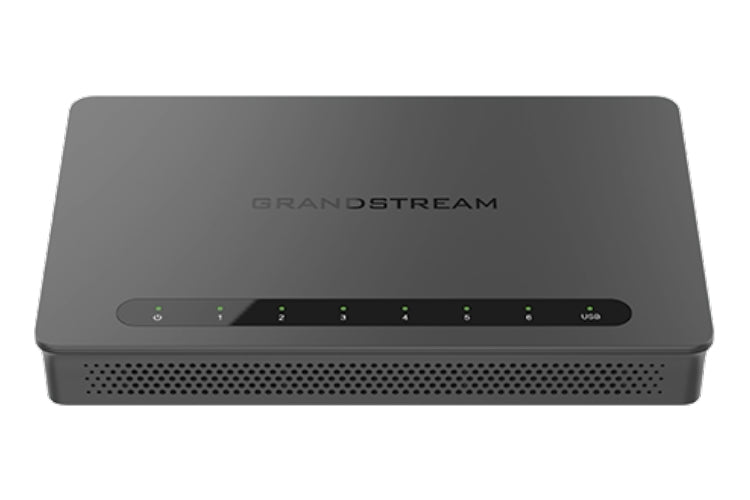

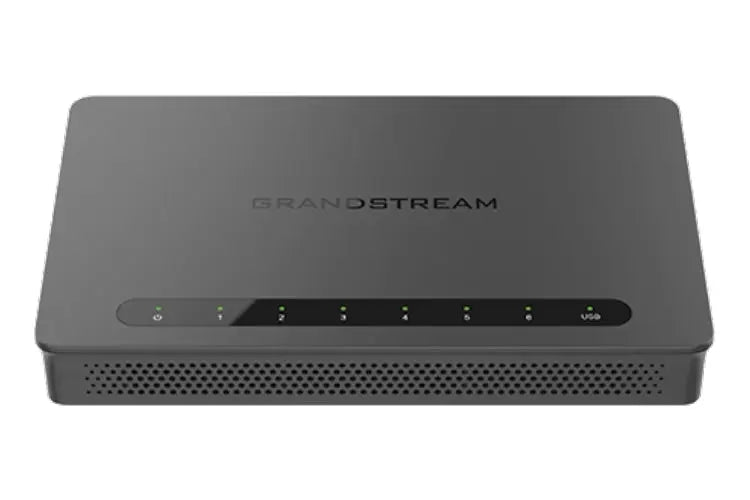

Grandstream GWN7002 Multi-WAN Gigabit Router
Grandstream GWN7002 Multi-WAN Gigabit Router
The Grandstream GWN7000 Series comprises Multi-WAN Gigabit VPN routers featuring integrated firewalls. These routers enable businesses to establish extensive wired, wireless, and VPN networks across single or multiple sites.
Grandstream GWN7002 Key Features
- 1x GbE RJ45 port with IEEE 802.3af/at PoE Input and 2x GbE RJ45 ports with 48V Passive PoE output or IEEE802.3af
- Supports multiple Gigabit RJ45 ports and Gigabit SFP ports
- Built-in VPN support allows easy access to corporate networks for remote employees
- Multiple WAN ports with load balancing and failover to maximize connection reliability
- Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
- Supports application/protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
- Advanced QoS to ensure real-time performance of low-latency applications
- Supports application, URL, DNS, and web content filtering to block access from unsecure contents
- Embedded controller can manage itself and up to 150 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited routers and GWN APs
The GWN7002 is an excellent fit for diverse deployments, serving small-to-medium businesses, educational institutions, healthcare facilities, and beyond. With its high-performance routing, integrated VPN capabilities, robust security features, and user-friendly management tools, the GWN7002 is a reliable and adaptable networking solution.
Featuring 2 Gigabit SFP ports, 4 Gigabit Ethernet ports, and 2 PoE output ports, the GWN7002 offers versatile connectivity. It can manage up to 150 GWN Series Wi-Fi Access Points via an embedded controller and is compatible with Grandstream's GWN.Cloud and GWN Manager tools for streamlined network management.
CPU
- Dual ARM Cortex A53 1GHz
Memory and NAT Sessions
- 256MB RAM, 256MB Flash, 30K NAT sessions
Network Interfaces
- 2x Gigabit SFP ports and 4x Gigabit Ethernet ports (WAN/LAN configurable)
NAT Throughput and IPsec VPN Throughput
- NAT Throughput: 2.2Gbps
- IPsec VPN Throughput: 530Mbps
Auxiliary Ports and Mounting
- 1x USB 2.0 port, 1x Reset Pinhole
- Mounting: Desktop and wall mounting
LEDs
- 8 x single-color LEDs for device tracking and status indication
Connection Type and Network Protocols
- DHCP, Static IP, PPPoE, PPTP, L2TP
- Network Protocols: IPv4, IPv6, IEEE802.1Q, IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab
QoS (Quality of Service)
- VLAN, TOS
- Support multiple traffic classes, filter by port, IP address, DSCP, and policing
- App QoS
- VoIP Prioritization
Firewall and Security
- DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
- Application/protocol monitoring and traffic statistics
- Content filtering: Supports Application/URL/DNS/Web Content Filtering
- Safe search
VPN
- SSL VPN Server / Client-to-Site
- IPsec VPN Client-to-Site / Site-to-Site
- PPTP VPN Server / Clien-to-Site
- L2TP Client-to-Site
- WireGuard (pending)
- IPSec Encryption: DES, 3DES, AES
- IPSec Authentication: MD5, SHA-1, SHA2-256
- IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
- IPSec Protocols: ESP
- IPSec NAT Traversal
- SSL VPN Encryption: AES, DES
- SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
- SSL VPN Certificate: RSA
- PPTP Encryption: MPPE 40-bit, 128-bit, IPSec
- PPTP/L2TP Authentication: MS-CHAPv1/2
Max Concurrent VPN Tunnels
- Up to 50 Tunnels
Network Management
- GWN7002 embedded controller for self and up to 100 GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN Routers and GWN APs
PoE Input
- Standard: IEEE 802.3af/at
PoE Output
- 2x PoE out ports
- Passive 48V or IEEE802.3af
PoE Power Budget
- 24V DC 1A: 12.8W
- 24V DC 1.5A: 24.8W
Power & Green Energy Efficiency
- Universal power adaptor included: Input: 100-240VAC 50-60Hz, Output: 24V DC 1A (24W)
Environmental
- Operation: 0°C to 40°C
- Storage: -30°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 210mm(L)x130mm(W)x35mm(H); Unit Weight: 505g
- Entire Package Dimension: 246mm(L)x235mm(W)x54mm(H); Entire Package Weight: 730g
Package Content
- GWN7002 Router
- Universal Power Supply
- Network Cable
- Quick Installation Guide
Compliance
- FCC
- CE
- RCM
- IC
- UKCA
