Gigaset Pro Maxwell C DECT Business IP Phone
- Category:Best selling products,Gigaset DECT Wireless IP Phone Handsets,Gigaset Pro IP Phones,New products
Gigaset Pro Maxwell C Datasheet (PDF)

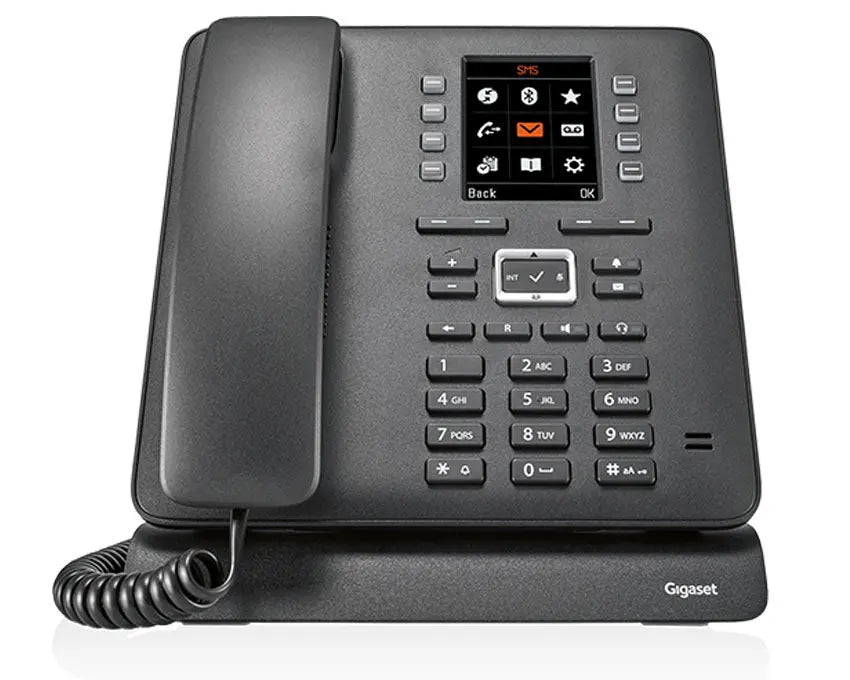

Gigaset Pro Maxwell C DECT Business IP Phone
The Gigaset Pro Maxwell C Business IP Phone is a DECT cordless desktop phone offering great flexibility from the desk. The Maxwell C is the ideal IP phone with HD audio and a large 2.8" TFT-colour display.
The Maxwell C offers a customised phone with adjustable foot stand, equipped with multicell solutions from Gigaset Pro and is a cable-free system.
Gigaset Pro Maxwell C Business IP Phone Key Features
- 5-way navigation key for easy operation
- Large 2.8" TFT-colour display with a modern user interface
- Hands-free talking with brilliant HDSP/CAT-IQ 2.0 sound quality
- Headset connection via Bluetooth or via RJ9 connectors
- Internal directory with up to 500 entries
- 8 quick dial keys next to the display and 9 behind the numeric keypad
The Maxwell C is equipped with a 2.8" TFT display, multiple programmble keys and navigation key. The screen displays the information in high contrast helping to read clearly from different angles.
Flexible
Intuitive controls, speed-dial keys, colour display and one-touch adjustable profiles make navigation simple within any wireless office.
Top quality audio
Delivers outstanding call clarity using HD audio and microphone reflection wave technology for optimised hands-free calling.
Easy deployment
Ready to use with all Gigaset's professional base station including Multicell systems to deliver complete coverage from any desk, meeting-room or office environment.
Connectivity
User Interface
- Illuminated, graphical 2,8“-TFT QVGA colour display, 240 x 320 pixels, up to 8 lines and 65.000 colours
- Intuitive, modern user interface with icons, display keys, five way navi-key and function keys
Audio Features
- HD Audio supporting HDSP/CAT-IQ 2.0
- Hands free talking with excellent audio quality
- Front keys for easy volume adjustment
- 18 selectable ringer melodies with 5 volume levels and crescendo
- Selectable audio profiles (DND, personal, silent and loud)
- Headset via Bluetooth® or via RJ9 connector
Phonebook and dialling
- Phonebook with up to 500 vCard entries
- vCard entries: first and last name, three numbers, email, date reminder, VIP melodies and picture caller ID
- PBX-directory access with search (LDAP and XML)
- Public online directory search with auto lookup
- 3 separate calls lists (missed/incoming/outgoing) with 20 entries each with CLIP/CNIP and time/date
- Redialling of last 20 numbers entered
- Short dial keys (8 soft and 9 numeric keys)
- Mute key, key lock and flash key
- Automatic redial function
- Caller indication displayed via CLIP, picture CLIP and CNIP
- Individual ringer melodies for VIP entries and internal callers
- Anonymous call silencing
- Signalled via display and illuminated message waiting indicator
- List showing up to 20 missed calls with caller indication
- Local missed call list behind 3rd party single and multicell systems with GAP
- Direct dialling of the missed call list
Keypad
- Message waiting key with blinking LED
- Profile key to apply personal, DND, silent and loud settings directly
- Keylock (#-key) with PIN protection
Additional Features
- Organiser with calendar and reminder functions
- Email-Reader
- Info services
- Screensaver (picture, slideshow, clock, info service)
Gigaset QuickSync'-Software
Software free to download for Windows and macOS. Connect via micro-USB or Bluetooth®- Synchronize your local contacts with Microsoft Outlook®
- Upload of caller pictures / screensaver pictures
- Upload ringtones from computer to the Maxwell C
- Firmware update
- Computer telephony integration (CTI):
- Direct dialling of Microsoft Outlook® contacts
- Display of incoming calls on the computer - both on Windows and macOS
Compatability
Optimised and recommended for:- Gigaset pro singlecell systems - e.g. N510IP PRO
- Gigaset pro multicell systems - e.g. N720IP PRO
- GAP compatible DECT base stations (single and multicell systems) and DECT systems which support CATiq 2.0
Interfaces
- DECT
- Bluetooth®
- Bluetooth® headset (handsfree and headset profile)
- Data exchange and firmware update with Gigaset QuickSync
- vCard exchange with mobile phones
- Micro-USB
- Data exchange and firmware update with Gigaset QuickSync
- RJ9 headset connector
DECT range
- Indoor range: up to 50 meters
- Outdoor range: up to 300 meters
Green Office
- Up to 60% less energy consumption thanks to an energy-saving power supply
Dimensions
- Main Device - 188 mm (L) x 188.5 mm (W) x 36 mm (H)
- Handset - 181 mm (L) x 45,6 mm (B) x 38,5 mm (H)
- Foot - 187.5 mm (L) x 156.5 mm (W) x 24.5 mm (H)
Environmental conditions
- Operating temperature between +5 to +45° C
- Storage temp between -15 to +60°C
- Relative Humidity between 20% and 75%, non condensating
Box contents
- Main device
- Handset
- Handset cable
- Foot stand
- Power supply
- Manual
- Security leaflet
