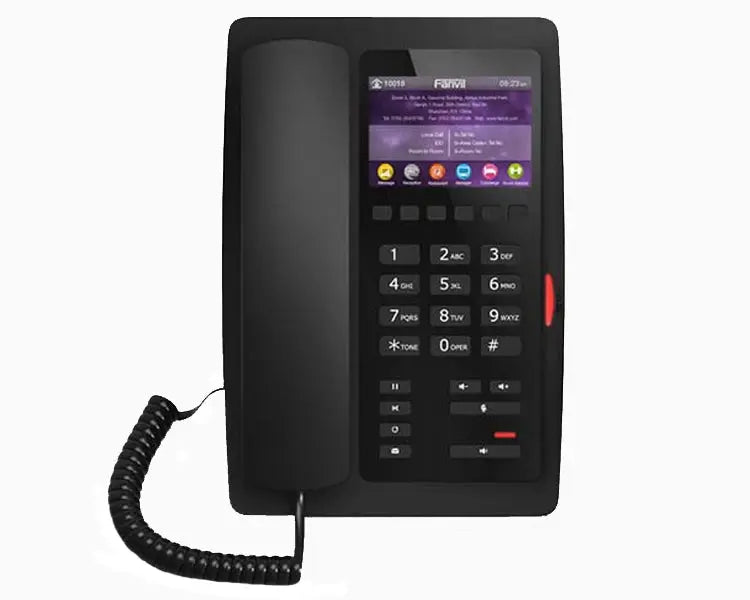

Fanvil H5 VoIP Phone
![Fanvil H5 VoIP Phone]()
![Fanvil H5 VoIP Phone]()
Fanvil H5 VoIP Phone
Available:In Stock
£82.32
Please Note: This product does not come with a power supply included. Please select the option above if required.
Fanvil H5 Hotel VoIP Phone
The Fanvil H5 is an IP Hotel phone with a 3.5 inch colour screen, HD voice, and 6 soft programmable soft keys. The H5 has a full duplex, hands free speaker phone with echo cancellation, along with many more standard phone features, such as call transfer, call holding, and call waiting.
Fanvil H5 VoIP Phone Key Features
- 3.5-inch 480×320 Colour Screen
- 1 SIP line
- 1 USB Port for Phone Charging
- 6 Programmable Keys for Speed Dial Functions
- Support PoE
- Indicator Light
- Call hold, Redial, Call Transfer, Hotline, Voice Mail etc.
3.5 Inch Colour Screen
The Fanvil H5 IP phone boasts an impressive 3.5 inch colour screen which attractively displays your desired hotel information to guests.
6 Programmable Soft Keys
6 programmable Soft Keys for service hotline (Housekeeping, Ticketing, Switchboard, Food and beverage, etc) and the hotel considerate services (Morning call, Voice message, and etc).
Support SIP Hotspot
Fanvil H5 IP phones can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won’t miss a call.
The Fanvil H5 IP phone boasts an impressive 3.5 inch colour screen which attractively displays your desired hotel information to guests.
6 Programmable Soft Keys
6 programmable Soft Keys for service hotline (Housekeeping, Ticketing, Switchboard, Food and beverage, etc) and the hotel considerate services (Morning call, Voice message, and etc).
Support SIP Hotspot
Fanvil H5 IP phones can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won’t miss a call.
Fanvil H5 Technical Specification
Generic
- 1 SIP Line
- POE Enabled
- Colour screen
- Handset / Hands-free mode
- Intelligent DSS Keys (speed dial key)
- Desktop
- Optional External Power Supply
Call Features
- Call out / Answer
- Mute / Unmute (microphone)
- Call Hold / Resume
- Call Waiting
- Call Transfer (Attended/Unattended)
- Speed dial
- Intercom
- Redial
- Voice Message (on server)
- Hot Line
- Hot desking
Phone Features
- Call logs with missed calls/ incoming calls/ outgoing calls
- Max support 600 records(web)
- Dial without registration
- LED light
- Programmable DSS keys
- Custom LCD display text and logo(Only support for H5)
- Action URL / Active URI
- Web dial
Audio
- Audio CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, G.722
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band - DTMF(RFC2833) / SIP INFO
Networking
- 10/100Mbps Ethernet, dual bridged port for PC bypass
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- QoS
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
- Web Management Portal
- Web-based Packet-dump
- Configuration Export / Import
- Firmware Upgrade
- Syslog
Physical Specifications
- LCD: 3.5inch (480x320) colour screen
- Keypad: 26 keys, including:
- 6 DSS Key
- 4 Function keys (Hold, Call Transfer, Redial, MWI)
- 12 Standard Phone Digits keys
- 3 Volume Control keys, Lower/Increase/Mute (Microphone)
- 1 Hands-free - HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT5 Ethernet Cable x1
- RJ9 Port x1: Handset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- USB Port x1: Standard A, Only used for mobile phone charging
- DC Power Input: 5V / 1A
- Power Consumption: Idle 1.8W~2.5W, Peak 3W~4.5W
- Working Temperature: 0~40°C
- Working Humidity: 10~95%
- Installation: Desktop Stand
- Colour: Black/White
- Device Dimensions: 151.7x193.2x131.7mm
- Gift Box Dimensions: 225x210x125mm
- Outer CTN Dimensions: 515x435x245mm (8 PCS)
