Dahua DH-PFS3110-8ET-96 8-Port Unmanaged 2-Layer PoE Hardened Switch, 8 x 10-100 Base-T , 60W
Show less
Dahua DH-PFS3110-8ET-96 8-Port Unmanaged 2-Layer PoE Hardened Switch, 8 x 10-100 Base-T , 60W
Available: In Stock
- Category:ALL PRODUCTS,Best selling products,Dahua PoE Switches,Dahua Technology IP CCTV,intelis,IP CCTV,New products
inc. VAT
£131.10

Other people want this. 2 people have this in their carts right now.
Product Overview

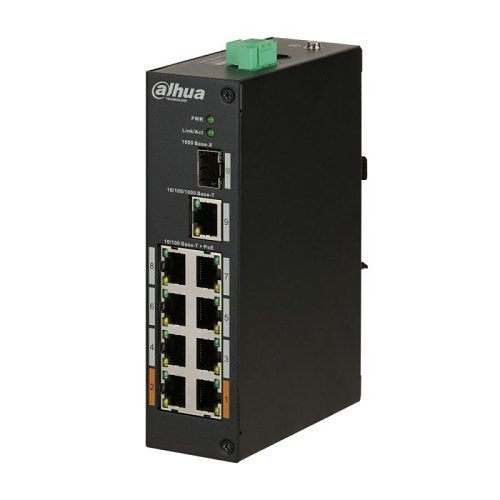

DH-PFS3110-8ET-96 is a layer two Hardened PoE Switch, which provides 8*10/100Mbps PoE ports, 1*100/1000 Mbps optical port and 1*10/100/1000Mbps Ethernet uplink port. With high level lightning protection and wide working temperature range makes it a better performance in outdoor or harsh environment.
Main Features
- Expand your network capacity with the help of 9 networking ports and transfer your data quickly and easily
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- 8-pin assignment PoE power supply
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Information
Category : Hubs, Routers & Switches, Data Comm & Networking, Network Switches, Products
Specifications
General Information
ADI Part Number
PFS3110-8ET96V2
Brand Name
Dahua Technology
Manufacturer
Zhejiang Dahua Technology Co., Ltd.
Manufacturer Part Number
DH-PFS3110-8ET-96-V2
Product Line
PFS
Product Model
PFS3110-8ET-96
Product Name
8-Port PoE Switch (Unmanaged)
Product Series
Desktop
Product Type
Ethernet Switch
Weight (Approximate) (g)
540
I/O Expansions
Expansion Slot Type
SFP (mini-GBIC)
Number of SFP Slots
1
Number of Total Expansion Slots
1
Interfaces/Ports
Modular
Yes
Network (RJ-45)
Yes
Port/Expansion Slot Details
1 x Gigabit Ethernet Expansion Slot, 1 x Gigabit Ethernet Network, 8 x Fast Ethernet PoE
Total Number of Network Ports
9
Uplink Port
Yes
Management & Protocols
Manageable
No
Media & Performance
Network Technology
10/100/1000Base-T, 10/100Base-T, 1000Base-X
Network & Communication
Layer Supported
2
Networking Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical Characteristics
Depth (mm)
100
Height (mm)
42
Weight (Approximate)
540 g
Width (mm)
150
Power Description
Input Voltage (V DC)
48, 57
PoE (RJ-45) Port
Yes
PoE Budget
96W
PoE Budget (W)
96
Power Source
Power Adapter
Redundant Power Supply Supported
Yes
Product Overview
DH-PFS3110-8ET-96 is a layer two Hardened PoE Switch, which provides 8*10/100Mbps PoE ports, 1*100/1000 Mbps optical port and 1*10/100/1000Mbps Ethernet uplink port. With high level lightning protection and wide working temperature range makes it a better performance in outdoor or harsh environment.
- Expand your network capacity with the help of 9 networking ports and transfer your data quickly and easily
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- 8-pin assignment PoE power supply
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
