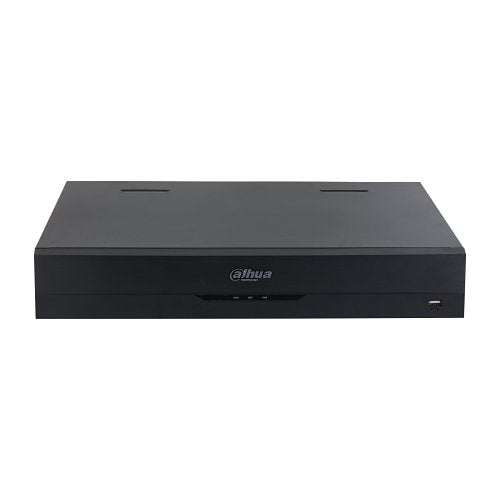

Dahua XVR5432L-4KL-I3 WizSense 32-Channel 4K-N 5MP Penta-Brid HDCVI DVR, 128Mbps, 1.5U, 4HDDs
- Category:Best selling products,Dahua Network Video Recorders,Dahua Technology IP CCTV,IP CCTV,New products
Product Overview
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Series Overview
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
Functions
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database to recognize the person identity
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Scheduled AI
This technology allows multiple AI functions to be set for one channel based on time frames, eliminating the need to manually configure the system to switch between functions each time. Scheduled AI greatly increases efficiency and widens the number of scenarios that the device can be used in.
Smart Dual Illuminators
With Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes.
- H.265+/H.265 dual-stream video compression.
- Supports 32-channel AI-Coding.
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
- Max 32 channels IP camera inputs, each channel up to 12MP; Max 128 Mbps incoming bandwidth.
- Up to 12 channels video stream (analog channel) perimeter protection.
- Up to 32 channels video stream (analog channel) SMD plus.
- Up to 6 channels video stream (analog channel) human face recognition.
- IoT & POS functionalities.
Specifications
General Information
ADI Part NumberXVR5432L-4KL-I3Brand NameDahua TechnologyManufacturerZhejiang Dahua Technology Co., Ltd.Manufacturer Part NumberDH-XVR5432L-4KL-I3Product LineWizSenseProduct ModelDH-XVR5432L-4KL-I3Product Name32 Channels Penta-brid 4K-N/5MP 1.5U 4HDDs WizSense Digital Video RecorderProduct SeriesXVRProduct TypeMounting Devices
Technical Information
HD RecordingYesMaximum Frame Rate30 fpsSystem ComponentsDigital Video RecorderTotal Number of Channels32Camera
Connectivity TechnologyWired
Interfaces/Ports
Composite Video InYesComposite Video OutYesHDMIYesNumber of VGA Out1Total Number of Audio In Ports1Total Number of Audio Out Ports1USBYes
Network & Communication
EthernetYes
Physical Characteristics
Depth (mm)420.2DVR Weight4.90 kgDVR Weight (g)4900Height (mm)76Width (mm)440
Power Description
Power Consumption (W)30.000
Storage
Recording Formats4K
Video
Maximum Frame Rate (fps)30Maximum Resolution5MP
Product Overview
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Series Overview
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
Functions
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database to recognize the person identity
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Scheduled AI
This technology allows multiple AI functions to be set for one channel based on time frames, eliminating the need to manually configure the system to switch between functions each time. Scheduled AI greatly increases efficiency and widens the number of scenarios that the device can be used in.
Smart Dual Illuminators
With Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes.
- H.265+/H.265 dual-stream video compression.
- Supports 32-channel AI-Coding.
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
- Max 32 channels IP camera inputs, each channel up to 12MP; Max 128 Mbps incoming bandwidth.
- Up to 12 channels video stream (analog channel) perimeter protection.
- Up to 32 channels video stream (analog channel) SMD plus.
- Up to 6 channels video stream (analog channel) human face recognition.
- IoT & POS functionalities.
Specifications
General Information
ADI Part Number XVR5432L-4KL-I3 Brand Name Dahua Technology Manufacturer Zhejiang Dahua Technology Co., Ltd. Manufacturer Part Number DH-XVR5432L-4KL-I3 Product Line WizSense Product Model DH-XVR5432L-4KL-I3 Product Name 32 Channels Penta-brid 4K-N/5MP 1.5U 4HDDs WizSense Digital Video Recorder Product Series XVR Product Type Mounting Devices
Technical Information
HD Recording Yes Maximum Frame Rate 30 fps System Components Digital Video Recorder Total Number of Channels 32Camera
Connectivity Technology Wired
Interfaces/Ports
Composite Video In Yes Composite Video Out Yes HDMI Yes Number of VGA Out 1 Total Number of Audio In Ports 1 Total Number of Audio Out Ports 1 USB Yes
Network & Communication
Ethernet Yes
Physical Characteristics
Depth (mm) 420.2 DVR Weight 4.90 kg DVR Weight (g) 4900 Height (mm) 76 Width (mm) 440
Power Description
Power Consumption (W) 30.000
Storage
Recording Formats 4K
Video
Maximum Frame Rate (fps) 30 Maximum Resolution 5MP
