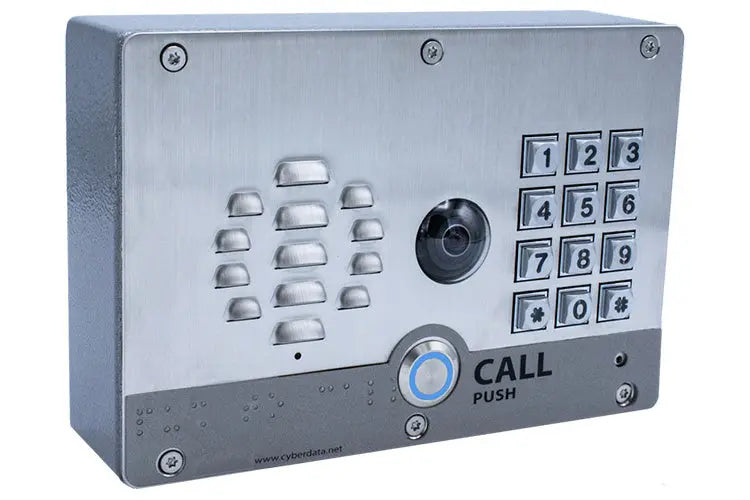

CyberData Video Outdoor VoIP Intercom with Keypad (011414)
CyberData SIP-enabled H.264 Video Outdoor Intercom with Keypad (011414)
The CyberData 011414 SIP-enabled h.264 Video Outdoor Intercom with Keypad is perfect for secure access settings requiring video and two-way communication. With excellent color and low light capability, the CyberData SIP-enabled h.264 Video Intercom can increase the security of any VoIP installation.
CyberData 011414 Key Features
- PoE 802.3af enabled (Powered-over-Ethernet)
- SIP compliant
- Adjustable camera angle
- 12-key keypad with backlight
- Programmable speed dial
- Full-duplex voice operation
- Supports SRST (Survivable Remote Site Telephony) in a Cisco environment
- Network web management
- Network adjustable speaker volume and microphone sensitivity
- Network downloadable firmware
- Doubles as a paging speaker
- Dry relay contact for auxiliary control (controls external power)
- Door closure and tamper alert signal
- Optional Weather Shroud for even greater weather protection
- IP65 rated enclosure
- Conformal coated PCBA
- Optional Security Torx screws with driver kit
- Downloadable alert, ringtones and callout messages
The Weather Shroud can be purchased separately for even greater weather protection. Based on one of our most popular devices, the new Video Outdoor Intercom can be installed in nursing care facilities, schools and universities, daycare facilities, retail establishments, highway tolls, needing color video and clear two way audio.
Ethernet I/F
- 10/100 Mbps
Protocol
- SIP RFC 3261 Compatible
Power Input
- PoE 802.3af compliant or
- +8 to +12VDC @ 1000mA
- Regulated Power Supply
Speaker Output
- 1 Watt Peak Power
On-Board Relay
- 1A at 30 VDC
Operating Temperature
- -10° C to 50° C (14° F to 122° F)
Payload Types
- G711, A-law and μ-law
Video Codec
- H.264 Baseline
Camera Resolution
- 320 x 240
SIP Video Payload
- Baseline profile @ 320x240
Video Lens Angle
- 72 degrees
Dimensions
- Length: 7.480 inch [190 mm]
- Width: 2.284 inch [58 mm]
- Height: 5.118 inch [130 mm]
Weight
- Weight 2.8 lbs. (1.27 kg)
- Box Weight 4.0 lbs. (1.81 kg)
- Weather Shroud is 1.2 lbs. (0.54 kg)
Warranty
- 2 years limited
Part Number
- 011414
- 011215 Weather Shroud (sold separately)
