CyberData Multicast Speaker (011458)
CyberData Multicast Speaker (011458)

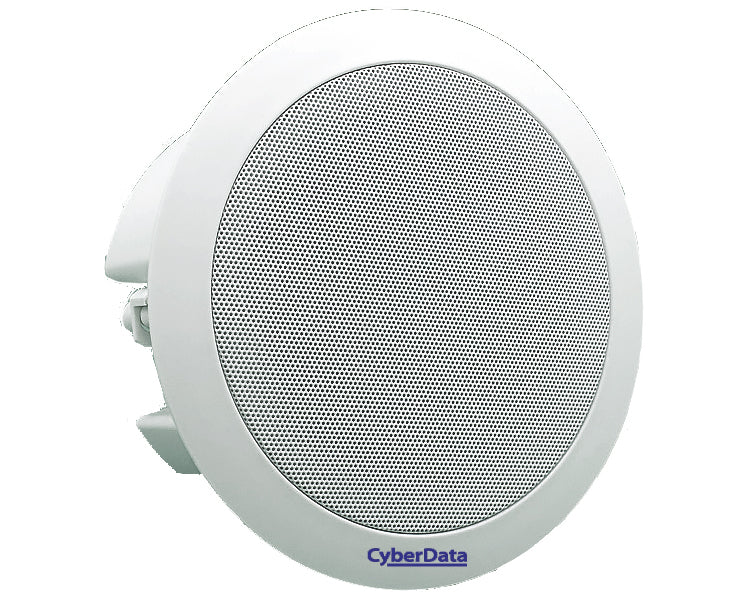

The CyberData Multicast Speaker (011458) is an economical Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address product. It easily connects to your PoE network with a single Ethernet cable connection. The speaker is capable of playing audio from any multicast source like the CyberData SIP Paging Server with Bell Scheduler (PN#011146). The CyberData Multicast Speaker’s small footprint and low height allows the speaker to be discreetly mounted in your ceilings.
CyberData Multicast Speaker (011458) Key Features
- Plays audio from multicast
- TLS security for autoprovisioning
- Support for 10 multicast paging groups
- Network-adjustable speaker volume
- User upgradeable firmware via web interface or autoprovisioning
- 802.11q VLAN tagging
- Configurable event generation for device health and status monitoring
- Web-based configuration
- High efficiency speaker driver
- Small footprint
Product Specifications
- Ethernet I/F: 10/100 Mbps
- Protocol: RTP
- Power Input: PoE 802.3af
- Audio Output: 802.3af - SPL 105 dB @ 1 meter
- Payload Types: G.711 a-law, G.711µ-law, and G.729
- Operating Range:
- Temperature: -40˚ C to 55˚ C (-40˚ F to 131˚ F)
- Humidity: 5-95%, non-condensing - Storage Temperature: -40˚ C to 70˚ C (-40˚ F to 158˚ F)
- Storage Altitude: Up to 15,000 ft. (4573 m)
- Dimensions:
- 201.5 mm [7.93 in.] Grill Diameter
- 170 mm [6.70 in.] Can Diameter
- 89.4 mm [3.52 in.] Can Depth - Weight: 1.09 kg [2.4 lbs]
- Boxed Weight: 1.32 kg [2.9 lbs]
- Compliance: RoHS Compliant
- Warranty: 2 Years Limited
- Part Number: 011458
