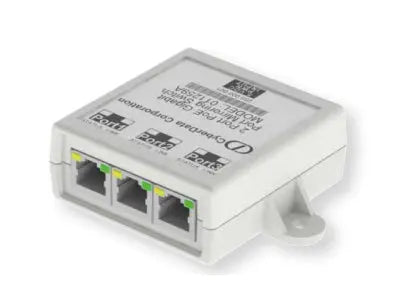

CyberData 3-Port USB Gigabit Port Mirroring Switch (011259)
CyberData 3-Port USB Gigabit Port Mirroring Switch (011259)
The CyberData 3-Port USB Gigabit Port Mirroring Switch enables users of a network attached device to split a single Gigabit Etherrnet port into two Gigabit Ethernet ports for diagnostics purposes.
CyberData 011259 Key Features
- Port Mirroring
- 3-port auto-negotiating (no crossover cable required)
- 10/100/1000 full duplex
- Powered by USB or 5V source (no external power supply required)
- Link/Status and connection speed LEDs
- Low Power
- RoHS Compliant
Engineers, Programmers and Field Service Personnel can utilize this Port Mirroring function to monitor the network traffic to and from that device with network-monitoring software such as WireShark. Power for the switch can be supplied by the host PC's USB port or from a standard +5V USB phone/camera charger.
Technical Details
- All ports are 10/100/1000 Mbps auto sensing based upon the port's individual connection
- Each port has auto MDX - any port can be used as the uplink connection
- Fully compliant to IEEE 802.3u standard 9216-byte jumbo packet length forwarding at wire speed
- Automatic address learning, address aging and address migration
- Integrated lookup engine with 1k unicast MAC addresses
- 1.4Gbps high performance memory bandwidth
Specifications
- Ports 3 x RJ45, 1 x USB-B
- Dimensions 2.75" L x 3.78" W x 1.1" H
- Warranty 2 years
- Unit Weight 0.2 lbs.
- Part Number 011236
- Standards IEEE 802.3u
- Modes 10BASE-T, 100BASE-T, 1000BASE-T
- Power 350 mA at 5 volts (supplied by either a USB or 5V source)
- LEDs: Link/Status and Connection Speed
- Operating temp: -10°C to 50°C (14°F to 122°F)
- Boxed Weight: 0.3 lbs
- Part Number: 011259
Features
- Port Mirroring
- 3-port auto-negotiating (no cross or cable) required
- 10/100/1000 full duplex
- USB or +5V-powered
- Link/Status and connection speed LEDs
- Low power
- RoHS compliant
- USB A to B cable included
